Description
Description
Take music and movies to the next level with premium Episode Signature quality, and make your mark with incredible in-wall sound that installs like a dream.
SERIES
1500
APPLICATION
Distributed Audio & Home Theater
TYPE
In-Ceiling Surround
WOOFER
Polypropylene with Titantium
TWEETER
Silk Dome with Titanium
BRACKET
ES-ESS-BRKT-ICEpisode® Signature 1500 Series In-Ceiling Surround Speaker
Take music and movies to the next level with premium Episode Signature quality, and make your mark with incredible in-ceiling sound that installs like a dream.

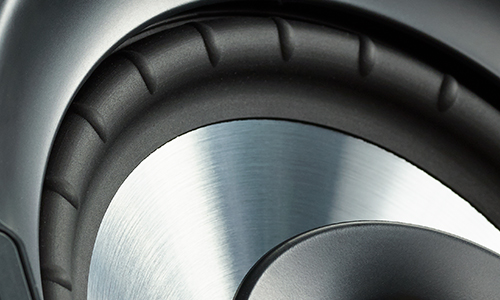

Polypropylene Woofer with Vacuum-Deposited Titanium
Forward-set woofer for wide dispersion and tight bass.

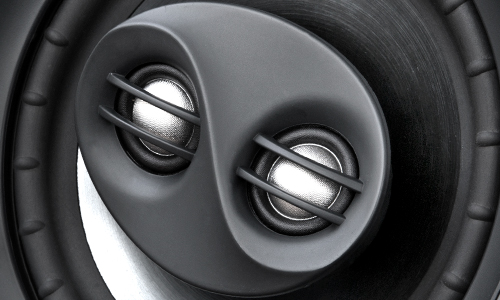

Dual Tweeters with Vacuum-Deposited Titanium
Our dual tweeters deliver warm, refined, and mellow highs for incomparable performance.

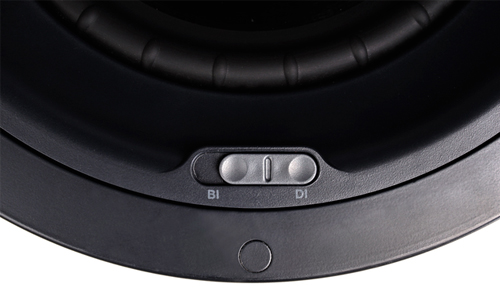

Surround Mode Switch
Set the speaker to bipole or dipole to get the perfect sound for your application and preference.

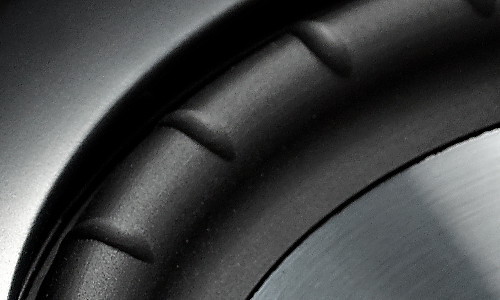

Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.
Thin-Bezel Design
Keeps the speaker out of sight for a smooth, minimalistic finish.
Exclusive Tension Dogs
Screws lock speakers into place with just a quarter-turn.
Install Cover
Protects speaker during install and doubles as a handle.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
Specs
Specifications
| ESS-1500T-ICSURR-6 | ESS-1500T-ICSURR-8 |
|---|---|
Gold plated push terminals |
Gold plated push terminals |
45 Hz - 20 kHz |
38 Hz - 20 kHz |
Suround Mode Bi/Di |
Suround Mode Bi/Di |
4.5 lb |
5 lb |
2.5 kHz |
2.2 kHz |
8 ohm |
8 ohm |
130 Watts |
130 Watts |
89 dB |
90 dB |
3/4" Adjustable dual silk dome tweeter with vacuum-deposited titanium |
1" Adjustable dual silk dome tweeter with vacuum-deposited titanium |
6" Polypropylene cone woofer with vacuum-deposited titanium |
8" Polypropylene cone woofer with vacuum-deposited titanium |
Limited Lifetime Warranty |
Limited Lifetime Warranty |
Finished Dimension w/ Grill: 9.6" |
Finished Dimension w/ Grill: 11" |
8.3" |
9.7" |
Mounting Depth: 4.8" Mounting Depth w/ Enclosure: 6.2" |
Mounting Depth: 5.2" Mounting Depth w/ Enclosure: 6.6" |
Connector Type |
Frequency Response |
Adjustments |
Weight |
Crossover Frequency |
Nominal Impedance |
Power Peak |
Sensitivity |
Tweeter |
Woofer |
Warranty |
Dimensions (W x H x D) |
Cutout Diameter |
Mounting |
