Take sound to the next level with premium Episode Signature quality, and make your mark with incredible in-wall audio that installs like a dream.
SERIES
1500
APPLICATION
Distributed Audio
TYPE
In-Wall Dual Voice Coik
WOOFER
Polypropylene with Titanium
TWEETER
Dual Silk Dome with Titanium
BRACKET
ES-ESS-BRKT-IWEpisode® Signature 1500 Series In-Wall Dual Voice Coil Speaker
Take sound to the next level with premium Episode Signature quality, and make your mark with incredible in-wall audio that installs like a dream.
Polypropylene Woofer with Vacuum-Deposited Titanium
Forward-set woofer for wide dispersion and tight bass.

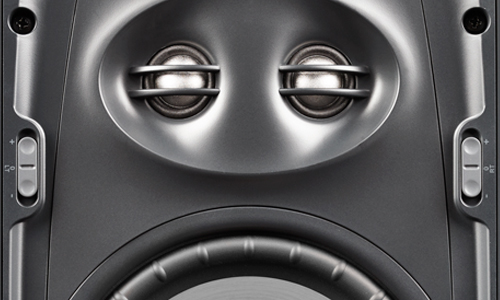

Dual Tweeters with Vacuum-Deposited Titanium
Stereo signals are reproduced with good separation thanks to the orientation of the twin tweeter array.
Tweeter Compensation Switch
Adjust the tweeters’ outputs by up to 3dB for perfect, customized sound.
Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.
Thin-Bezel Design
Magnetic, one-step paintable grille keeps the speaker out of sight for a smooth, minimalistic finish.
Exclusive Tension Dogs
Screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
Specs
Specifications
| ESS-1500T-IWDVC-6 |
|---|
Gold plated push terminals |
45 Hz - 20 kHz |
5 lb |
2.6 kHz |
Dual 8 ohm |
130 Watts |
90 dB |
3/4" Dual silk dome tweeters with vacuum-deposited titanium |
6" Polypropylene cone woofer with vacuum-deposited titanium |
Limited Lifetime Warranty |
Finished Dimension w/ Grill: 8.9" x 13" |
7.6" |
11.7" |
Mounting Depth: 3.7" Mounting Depth w/ Enclosure: 3.8" |
Connector Type |
Frequency Response |
Weight |
Crossover Frequency |
Nominal Impedance |
Power Peak |
Sensitivity |
Tweeter |
Woofer |
Warranty |
Dimensions (W x H x D) |
Cutout Width |
Cutout Height |
Mounting |
