Episode® Electronics Tabletop Plasma/LED-Proof IR Sensor with LED Feedback

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Description
Description

You'll be hard-pressed to find another tabletop IR receiver that packs as big a punch. With advanced IR filtering for resistance to interference from plasma/LCD displays, AT&T U-verse support AND the smallest form factor on the market, the EE-IR-RCVR-TABLE is ready to take on your next IR installation challenge.

Episode® Electronics Tabletop Plasma/LED-Proof IR Sensor with LED Feedback

You'll be hard-pressed to find another tabletop IR receiver that packs as big a punch. With advanced IR filtering for resistance to interference from plasma/LCD displays, AT&T U-verse support AND the smallest form factor on the market, the EE-IR-RCVR-TABLE is ready to take on your next IR installation challenge.

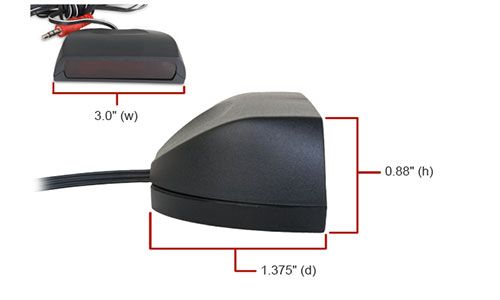

Compact Size

As one of the smallest tabletop IR receivers on the market, you might think it easy to push around. Don't be fooled, though. This little guy is a heavyweight! It features a steel insert for added weight and a rubber pad for extra grip on the table or cabinet.

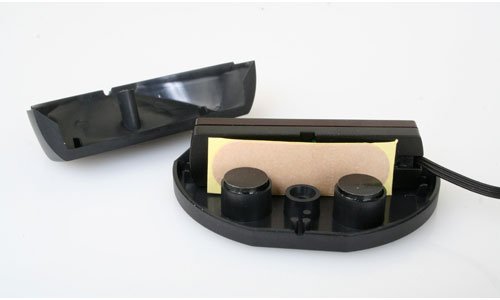

Presto Chango

Stuff happens. Like getting to the jobsite only to discover that your tabletop IR will no longer work. No need to stress! Just remove a single screw and presto chango – this tabletop IR receiver transforms into a surface mount. We even supply an adhesive strip inside just for this purpose.

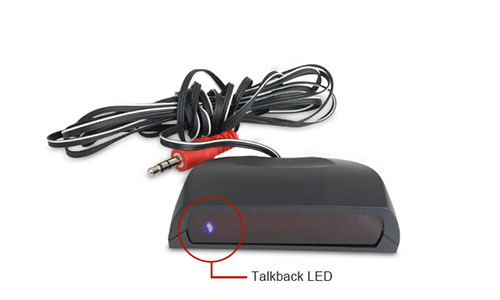

Talkback LED

A talkback LED blinks when receiving IR or interference. It’s ideal when troubleshooting and is equally as valuable to the end-user as visual confirmation that the IR signal is being received.

Advanced IR Filtering Technology

In addition to blocking common interference from plasma and LCD displays, it is also resistant to sunlight, Compact Fluorescent Lamps (CFL), Electro-Magnetic Interference (EMI), and Electrostatic Interference (ESI). Best of all, it has the "smarts" to do all this without impacting reception and performance.

Universal Acclaim

This sensor works with virtually all A/V components and remote controls – even AT&T U-verse! This is thanks to wideband IR capability (30-60kHz) and support of RCMM compressed codes.

Going the Distance

This Episode IR receiver features dual diodes for long-range reception up to 40 feet and off-axis response up to 30 degrees in any direction. NOTE: IR distance is dependent on remote strength and ambient noise conditions.

Specs
Specifications
EE-IR-RCVR-TT
3" x .86" x 1.42"
12V DC, 25 mA
Each
4' to 40' without speaker grille
2' to 28' with speaker grille
*Actual range depends on signal strength and ambient noise conditions.
30 kHz - 60 kHz

Dimensions (W x H x D)
Line Voltage
Sold As
Control via IR
IR Frequency

3-Year Limited Warranty

Episode® Electronics IR Products have a 3-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
