Deliver exceptional home theater audio with this first-ever reference level offering from Episode. Episode Home Theater solutions are guided by the brand's approach to "Sound Based on Science," offering premium components that provide faithful audio reproduction.
Deliver exceptional home theater audio with this first-ever reference level offering from Episode. Episode Home Theater solutions are guided by the brand's approach to "Sound Based on Science," offering premium components that provide faithful audio reproduction. The Episode Home Theater Reference series is acoustically matched to pair with other Episode speakers for an immersive, cinematic audio experience. Customers can choose from Gloss Black, Gloss White, or Walnut Veneer in-room finishes to find the perfect finish to match their decor.

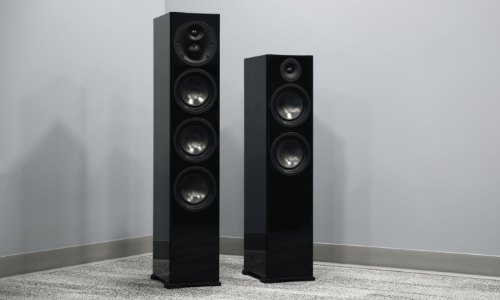

All Episode Home Theater products feature rigid MDF (medium density fiberboard) construction. Unlike inexpensive particle board, MDF is dense and reduces vibration, preventing SPL (sound pressure level) loss and delivering cleaner sound.

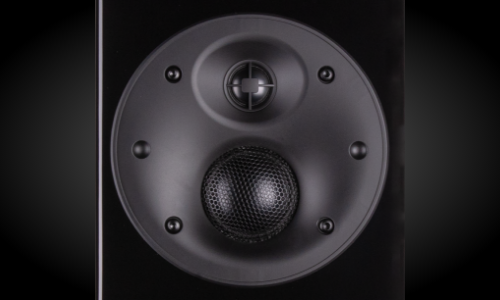

The CSM (Coherent Source Module) combines a Dome Midrange and Aluminum Dome Tweeter and is a part of the Reference tower's 4-way design for efficient response, higher dynamic range, and a full frequency reproduction between the multiple transducers in the cabinet.

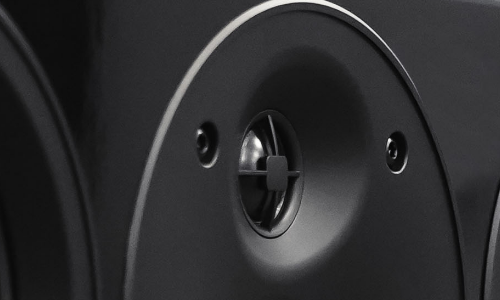

Aluminum tweeters are strong, lightweight, and react quickly to changes in music. By chambering the tweeter and pairing it with a copper shorting ring, fundamental resonance and distortion is reduced, enhancing sound quality.

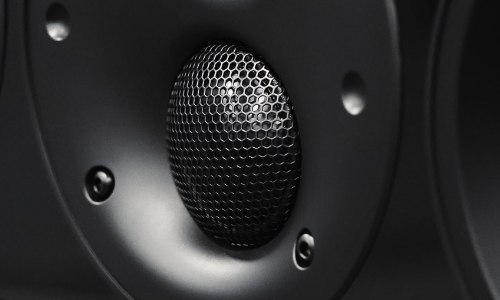

Dividing the frequency range of audio to multiple drivers, the 2" Aluminum Dome Midrange in the Coherent Source Module is mechanically efficient, allowing listeners to enjoy every detail of their media experience.

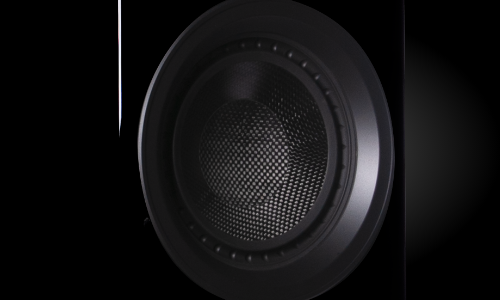

Premium components like a strong carbon fiber cone resists deformation, while the rigid die-cast basket reduces mid-bass distortion and increases cooling. Inverted ribbed surrounds increase effective piston area and excursion to behave like an accordion, allowing stretching and more linear cone excursion, all preventing sound distortion at higher volumes.
The Linkwitz-Riley filters with Zobel impedance matching found in Episode Home Theater Reference Speakers linearize system impedance, improve dynamic range, and promote a better listening experience while allowing the amplifier powering the speaker to work more efficiently.
| ES-HTR-IRTWR-6-BLK | ES-HTR-IRTWR-6-WHT | ES-HTR-IRTWR-6-WAL |
|---|---|---|
2" Aluminum dome with tuned back chamber |
2" Aluminum dome with tuned back chamber |
2" Aluminum dome with tuned back chamber |
Woofer: 1-1/4" / 31.75mm Mid-Bass 1-1/4" / 31.75mm (CCAW) |
Woofer: 1-1/4" / 31.75mm Mid-Bass 1-1/4" / 31.75mm (CCAW) |
Woofer 1-1/4" / 31.75mm 1-1/4" / 31.75mm (CCAW) |
Anechoic Frequency Response: 33Hz to 25kHz Low Frequency Cutoff: 28Hz |
Anechoic Frequency Response: 33Hz to 25kHz Low Frequency Cutoff: 28Hz |
Anechoic Frequency Response: 33Hz to 25kHz Low Frequency Cutoff: 28Hz |
Biamp / wireable gold plated 5-way binding posts |
Biamp / wireable gold plated 5-way binding posts |
Biamp / wireable gold plated 5-way binding posts |
Including supplied feet, w/o full size grille: 8.27" x 44.10" x 12.52"
(210 x 1120 x 318mm) |
Including supplied feet, w/o full size grille: 8.27" x 44.10" x 12.52" (210 x 1120 x 318mm) |
Including supplied feet, w/o full size grille: 8.27" x 44.10" x 12.52" (210 x 1120 x 318mm) |
Including feet and local etched grilles: 69.3 lbs / 31.5kg |
Including feet and local etched grilles: 69.3 /31.5kg |
Including feet and local etched grilles: 69.3 / 31.5kg |
200Hz, 500Hz, 2.0kHz |
200Hz, 500Hz, 2.0kHz |
200Hz, 500Hz, 2.0kHz |
5.0Ω |
5Ω |
5Ω |
500W |
500W |
500W |
250W |
250W |
250W |
91dB |
91dB |
91dB |
1" Aluminum dome with tuned back chamber |
1" Aluminum dome with tuned back chamber |
1" Aluminum dome with tuned back chamber |
6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround Woofer Excursion (Peak to Peak): 8.6mm |
6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround Woofer Excursion (Peak to Peak): 8.6mm |
6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround Woofer Excursion (Peak to Peak): 8.6mm |
Midrange |
Voice Coil |
Frequency Response |
Connectors |
Dimensions (W x H x D) |
Weight |
Crossover Frequency |
Nominal Impedance |
Power Peak |
Power RMS |
Sensitivity |
Tweeter Type |
Woofer Type |
This Episode® product has a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
