Episode® Home Theater Reference In-Wall Surround Speaker - 6" (Each)

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

Deliver exceptional home theater audio with this first-ever reference level offering from Episode. Episode Home Theater solutions are guided by the brand's approach to "Sound Based on Science," offering premium components that provide faithful audio reproduction.

Episode® Home Theater Reference 6" In-Wall Surround Speaker (Each)

Deliver exceptional home theater audio with this first-ever reference level offering from Episode. Episode Home Theater solutions are guided by the brand's approach to "Sound Based on Science," offering premium components that provide faithful audio reproduction. The Episode Home Theater Reference series is acoustically matched to pair with other Episode speakers for an immersive, cinematic audio experience.

Top left corner of episode speaker

Rigid MDF Cabinets with Aluminum Baffle

All Episode Home Theater products feature rigid MDF (medium density fiberboard) construction. Unlike inexpensive particle board, MDF is dense and reduces vibration, preventing SPL (sound pressure level) loss and delivering cleaner sound. The removeable enclosure back improves bass extension and can be used in a large stud bay.

Full image of Episode HOme Speaker

2-Way Design with Ambient and Direct Modes

Based on project or installer needs, 2-way design allows this speaker to be installed like a traditional direct radiating or bipole/dipole inwall surround speaker or used as a ceiling mounted height channel.

Zoom in of Episode Home Speaker

1" Aluminum Dome Tweeter

Aluminum tweeters are strong, lightweight, and react quickly to changes in music. By chambering the tweeter and pairing it with a copper shorting ring, fundamental resonance and distortion is reduced, enhancing sound quality.

Zoom in of Episode Home Speaker

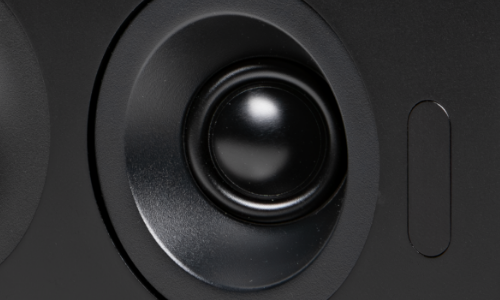

1-1/4" Aluminum Dome Wide Band Transducers

Using the Sound Field Management switches for the Aluminum Dome Wide Band Transducers, installers can change and enhance the perception of acoustic spaciousness and envelopment to optimize the listening experience for the specific space and speaker layout.

Zoom in of Episode Home Speaker

Carbon Fiber Woofers with Inverted Surrounds

Premium components like a strong carbon fiber cone resists deformation, while the rigid die-cast basket reduces mid-bass distortion and increases cooling. Inverted ribbed surrounds increase effective piston area and excursion to behave like an accordion, allowing stretching and more linear cone excursion, all preventing sound distortion at higher volumes.

Zoom in of Episode Home Speaker

Second Order 2-Way Linkwitz-Riley Filters with Zobel Impedance Matching

The Linkwitz-Riley filters with Zobel impedance matching found in Episode Home Theater Reference Speakers linearize system impedance, improve dynamic range, and promote a better listening experience while allowing the amplifier powering the speaker to work more efficiently.

Zoom in of Episode Home Speaker

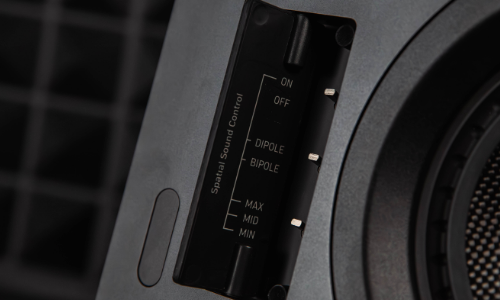

Tonal Balance and Spatial Sound Controls

Bass and tweeter Tonal Balance Controls can be used to optimize the speaker for the install environment while the Spatial Sound Controls enable selection of either bipole or dipole usage and allow fine tuning of audio dispersion and intensity based on listening position, optimizing the audio in any seat.

Specs
Specifications
ES-HTR-IWSURR-6
Anechoic Frequency Response: 60Hz - 25kHz (+/-3dB)
Biamp / wireable gold plated 5-way binding posts
14.33" x 14.33" (364 x 364mm)
w/o full size girlle 15.35" x 15.35" x 4.02" (390 x 390 x 102mm)
with full size grille 15.51" x 15.51" x 4.08" (394 x 394 x 103.5mm)
19.8lbs (9.kg) (includes local grilles where applicable)
2.0kHz - Linkwitz-Riley / 12dB. Ambience drivers - 800Hz - 8kHz
150°
1-1/4" Dome with tuned back back chamber
7.0Ω
250W
125W
90dB
1-1/4" (31.75mm)
3.86" (98mm)
3/8" (9.5mm) /1-5/8" (41.3mm)
0.7ft³ (20 liters)
1" Aluminum dome with tuned back chamber
6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround
Woofer Excursion (Peak to Peak): 7.6mm
Sure-Lock toggle clamp (X4)
Bass (0, +2dB) / Tweeter (+2dB, 0, -2dB) / Ambience (Mono-pole, Bi-pole, Di-pole, level=max/mid/min)

Frequency Response
Connectors
Cutout Dimensions (W x H)
Dimensions (W x H x D)
Weight
Crossover Frequency
Speaker Dispersion Angle
Midrange
Nominal Impedance
Power Peak
Power RMS
Sensitivity
Voice Coil
Mounting Depth
Dog Ear Clamping Range
Optimal Air Volume Behind Speaker
Tweeter Type
Woofer Type
Dog Ear Description
Adjustments

Lifetime Limited Warranty

This Episode® product has a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
