Episode® Signature 1300 Series In-Ceiling Speaker (Each)
ESS-1300T-IC-4
Click to enlarge
Description
Specs
Support
Description
Description
Impeccable clarity meets astounding design, for a speaker that’s bound to impress every time. It’s a perfect fit for multi-room audio and its smart installation features make it a winner for custom installs.
SERIES
1300
APPLICATION
Distributed Audio
TYPE
In-Ceiling
WOOFER
Polypropelene
TWEETER
Silk Dome
BRACKET
ES-ESS-BRKT-IC / ESS-BRKT-ICEpisode® Signature 1300 Series In-Ceiling Speaker
Impeccable clarity meets astounding design, for a speaker that’s bound to impress every time. It’s a perfect fit for multi-room audio and its smart installation features make it a winner for custom installs.

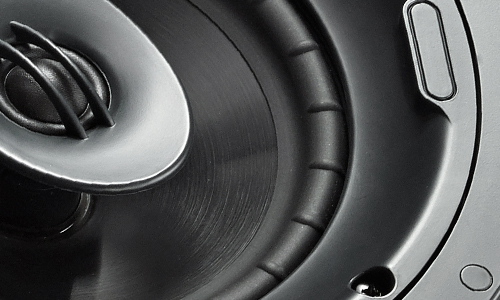

Polypropylene Woofer
Forward-set polypropylene woofer for wide dispersion and punchy bass.

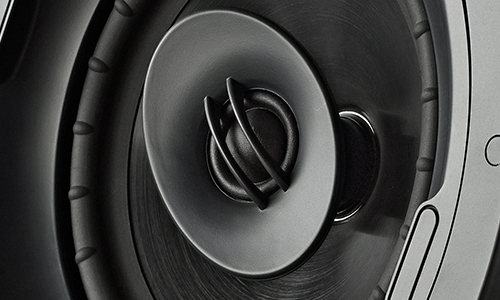

Adjustable Silk Dome Tweeter
Direct sound where you want to create more immersive experiences.

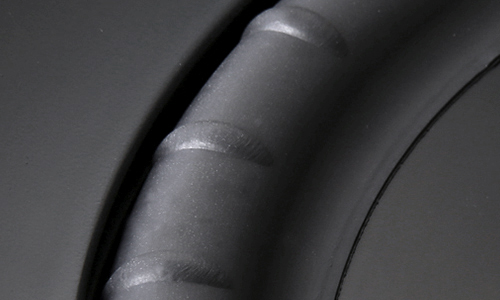

Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.

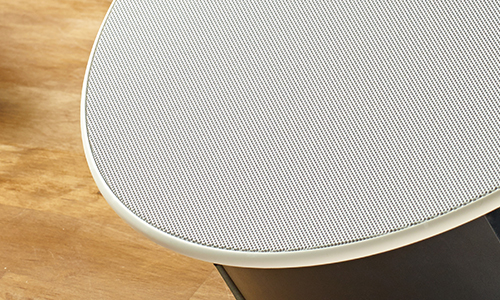

Thin-Bezel Design
Magnetic, one-step paintable grille keeps the speaker out of sight for a smooth, minimalistic finish.
Exclusive Tension Dogs
Screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.
Install Cover
Protects speaker during install and doubles as a handle.

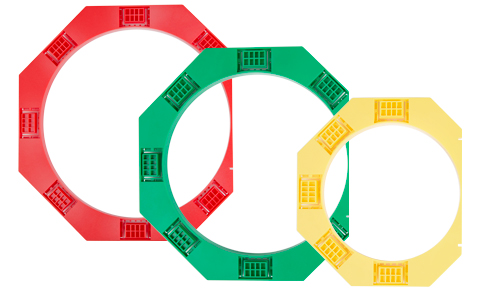

Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.

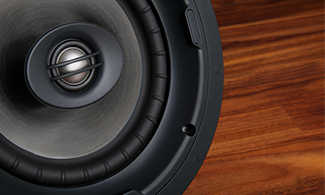

Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
Specs
Specifications
| ESS-1300T-IC-4 | ESS-1300T-IC-6 | ESS-1300T-IC-8 |
|---|---|---|
Gold plated push terminals |
Gold plated push terminals
|
Gold plated push terminals
|
60 Hz - 20 kHz |
45 Hz - 20 kHz
|
38 Hz - 20 kHz
|
2.8 lb |
4.4 lb |
5.2 lb |
2.75 kHz |
2.5 kHz
|
2.2 kHz
|
8 ohm |
8 ohm |
8 ohm |
80 Watts |
130 Watts |
130 Watts |
57W |
92W |
92W |
89 dB |
89 dB
|
90 dB
|
3/4" Adjustable silk dome tweeter |
3/4" Adjustable silk dome tweeter
|
1" Adjustable silk dome tweeter
|
4" Injection-molded polypropylene cone woofer |
6" Injection-molded polypropylene cone woofer
|
8" Injection-molded polypropylene cone woofer
|
Finished Dimension w/ Grill: 7.5" |
Finished Dimension w/ Grill: 9.6" |
Finished Dimension w/ Grill: 11" |
6.2" |
8.3" |
9.7" |
Mounting Depth: 4.6" Mounting Depth w/ Enclosure: 5.9" |
Mounting Depth: 4.8" Mounting Depth w/ Enclosure: 6.2" |
Mounting Depth: 5.2" Mounting Depth w/ Enclosure: 6.6" |
Connector Type |
Frequency Response |
Weight |
Crossover Frequency |
Nominal Impedance |
Power Peak |
Power RMS |
Sensitivity |
Tweeter |
Woofer |
Dimensions (W x H x D) |
Cutout Diameter |
Mounting |
Support
Manuals and Guides
Sales Resources
Support Documents
Episode Poster - Architectural Line
Want a full-size poster shipped to you? Email us here.
Lifetime Limited Warranty
All Episode® Signature Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
