Episode® Signature 1300 Series In-Wall Speaker (Each)
ESS-1300T-IW-6
Click to enlarge
Description
Specs
Support
Description
Description
From their sleek design, to their impeccable sound, to their smart installation features, these in-wall speakers deliver top-notch performance for multi-room audio.
SERIES
1300
APPLICATION
Distributed Audio
TYPE
In-Wall
WOOFER
Polypropelene
TWEETER
Silk Dome
BRACKET
ES-ESS-BRKT-IWEpisode® Signature 1300 Series In-Wall Speaker
From their sleek design, to their impeccable sound, to their smart installation features, these in-wall speakers deliver top-notch performance for multi-room audio.

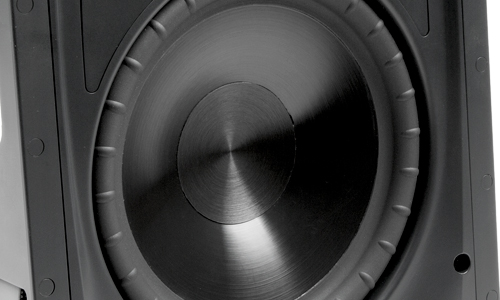

Polypropylene Woofer
Forward-set polypropylene woofer for wide dispersion and punchy bass.

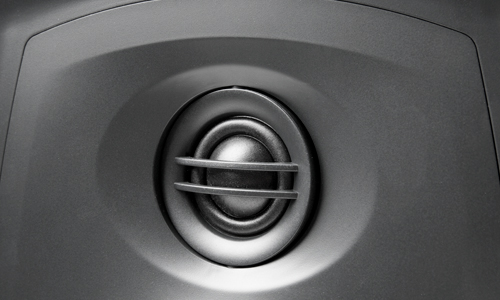

Adjustable Silk Dome Tweeter
Direct sound where you want to create more immersive experiences.

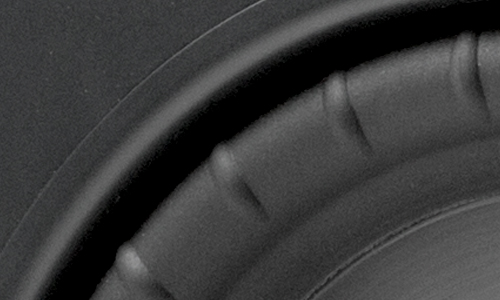

Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.

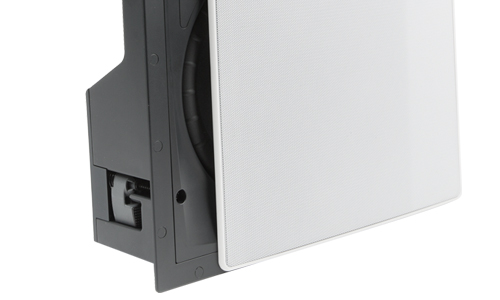

Thin-Bezel Design
Keeps the speaker out of sight for a smooth minimalistic finish.

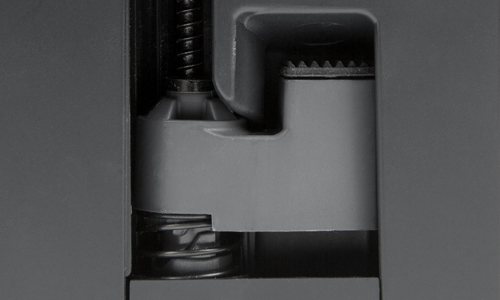

Exclusive Tension Dogs
Unique mechanism quickly locks speakers into place with just a quarter-turn.

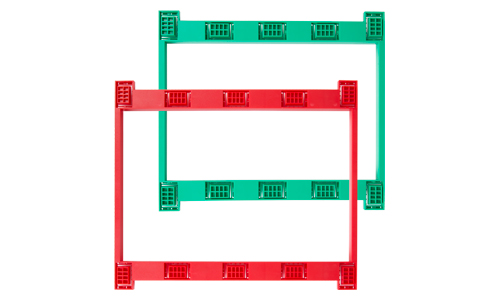

Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
Specs
Specifications
| ESS-1300T-IW-6 |
|---|
Gold plated push terminals |
45 Hz - 20 kHz |
4.8 lb |
2.6 kHz |
8 ohm |
130 Watts |
89 dB |
1" Adjustable silk dome tweeter |
6" Injection-molded polypropylene cone woofer |
Finished Dimension w/ Grill: 8.9" x 13" |
7.6" |
11.7" |
Mounting Depth: 3.7" Mounting Depth w/ Enclosure: 3.8" |
Connector Type |
Frequency Response |
Weight |
Crossover Frequency |
Nominal Impedance |
Power Peak |
Sensitivity |
Tweeter |
Woofer |
Dimensions (W x H x D) |
Cutout Width |
Cutout Height |
Mounting |
Support
Manuals and Guides
Sales Resources
Support Documents
Episode Poster - Architectural Line
Want a full-size poster shipped to you? Email us here.
Lifetime Limited Warranty
All Episode® Signature Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
