Triad InWall Satellite Speaker - Ready to Ship

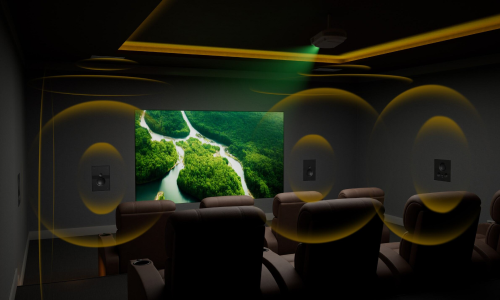

Engineered for high-fidelity performance, Triad InWall Satellite speakers feature extended bass response, making them ideal for multiroom audio, surround sound systems, home theaters, and media rooms.
Important Note - This is a Ready-to-Ship (RTS) model, pre-built for immediate fulfillment and available without customization. For custom grille or cabinet color options, please refer to the non-RTS version of this product. Additionally, if the RTS version is out of stock, the non-RTS version remains available for order and may be delivered sooner than the next RTS inventory replenishment HERE.
Ready to Ship. Ready to Perform.
When time is critical and customization isn't required, Triad RTS models deliver. Pre-built at our Portland manufacturing facility and stocked at SnapOne distribution centers worldwide, these premium speakers are always "ready to ship" — dramatically reducing lead times so you can move your projects forward faster.
Built for Audiophiles. Trusted by Pros

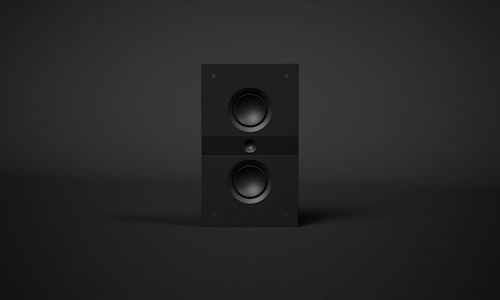

Triad speakers are meticulously designed to deliver crystal-clear sound with fast transient response. With durable, lightweight aluminum cone woofers and tweeters and drivers built from the ground up by the Triad team, Triad delivers phenomenal audio performance every time.
Flexible and Uncomplicated Installation Method

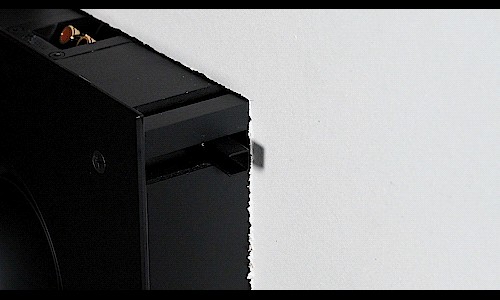

Make your installation easier and safer with the built-in, patent-pending spring dog system, which holds the speaker in a wall or a ceiling, freeing up your hands to screw in and install the speaker without worry. The spring dog can also be flipped to 90 degrees to help avoid a stud or joist, allowing you to secure the speaker regardless of orientation.
The Treasured Triad Voicing
Triad speakers feature top-shelf crossover components and are timbre-matched to achieve the coveted Triad sound that integrators trust. These Triad speakers seamlessly integrate with other Triad solutions for consistent tonal quality and high-end performance throughout the project.
Resonance-Free Solid MDF Cabinet
Fully engineered, premium MDF enclosures with internal bracing components are rigid and precision-crafted to break up acoustic standing waves. Triad speakers are built to order on-site in our Portland, OR manufacturing facility by a team of passionate craftspeople and audio experts for custom, high-quality construction.
Seamless Style, Ready to Ship

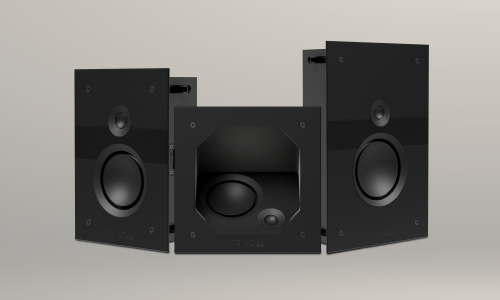

Designed to complement a wide range of interiors, these ready-to-ship (RTS) SKUs come in pre-selected grille finishes for quick delivery. For custom grille colors, please explore our non-RTS options.
Beautiful and Built to Last
Built in the USA from the highest-quality materials, Triad creates a timeless sound and look to elevate your customer's experience and delight them for years to come.
Specs
Specifications
| TS-IWSAT4-RTS | TS-IWSAT5-RTS | TS-IWSAT6-RTS |
|---|---|---|
Each |
Each |
Each |
Spring Terminals |
Spring Terminals |
Spring Terminals |
6Ω |
6Ω |
6Ω |
80Hz-20kHz |
75Hz-20kHz |
66Hz-20kHz |
2600Hz |
1900Hz |
1800Hz |
85dB |
87dB |
88dB |
120W |
160W |
190W |
240W |
320W |
380W |
1" |
1" |
1" |
4" |
5" |
6" |
Fiber Dampened Aluminum Cone, Rubber Surround, Ferrite Magnet |
Fiber Dampened Aluminum Cone, Rubber Surround, Ferrite Magnet |
Fiber Dampened Aluminum Cone, Rubber Surround, Ferrite Magnet |
26.45mm |
33.5mm |
36.71mm |
7 5/16" x 10 7/8" |
8 5/16" x 12 1/16" |
10 5/8" x 16 1/2" |
3 15/16" |
3 15/16" |
3 15/16" |
12 1/4" x 8 5/8" x 4 1/16" (311 x 220 x 103mm) |
13 7/6" x 9 1/4" x 4 1/16" (341 x 246 x 103mm) |
17 3/16" x 12 1/4" x 4 1/16" (453 x 311 x 103mm) |
7.9 lbs (3.61 kg) |
9.9 lbs (4.50 kg) |
14.6lbs (6.62 kg) |
Compatible Replacement Grille TS-GRL-A |
Compatible Replacement Grille TS-GRL-B |
Compatible Replacement Grille TS-GRL-F |
Compatible New Construction Bracket TS-NCB-A |
Compatible New Construction Bracket TS-NCB-B |
Compatible New Construction Bracket TS-NCB-F |
Black |
Black |
Sold As |
Connectors |
Nominal Impedance |
Frequency Response |
Crossover Frequency |
Sensitivity |
Power RMS |
Power Peak |
Tweeter |
Woofer Size |
Woofer |
Voice Coil |
Cutout Dimensions (W x H) |
Mounting Depth |
Dimensions (W x H x D) |
Weight |
Speaker Grille |
Support Bracket |
Color |
Support
Manuals and Guides
Support Documents
Triad Limited Warranty Term
This Limited Warranty runs for a period of ten (10) years for indoor speakers, three (3) years for Triad powered subwoofers, subwoofer amplifiers and outdoor speakers, five (5) years for all Triad PAMP V2 Amplifiers and two (2) years for all other Triad electronics, provided that Triad Distributed Audio Series 1, Series 2, or Series 3 branded speakers will have a limited lifetime warranty, except for the grill, which is warranted for five (5) years. The terms of our limited warranties can be found here.
