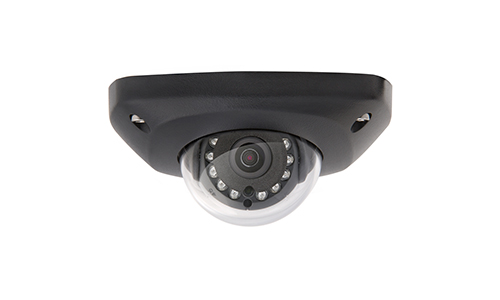

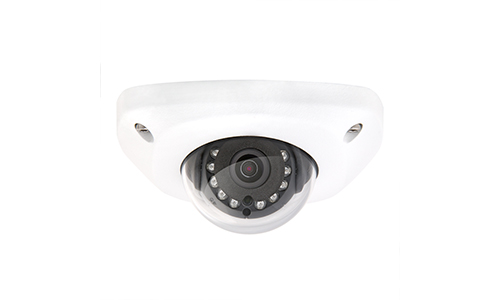

Capture high-resolution quality video with beautiful widescreen viewing. These 100-series cameras are a great addition to any outdoor environment. 960H with 720TVL allows you to get the widest screen capability and best resolution possible on an analog camera.
Capture high-resolution quality video with beautiful widescreen viewing. These 100-series cameras are a great addition to any outdoor environment. 960H with 720TVL allows you to get the widest screen capability and best resolution possible on an analog camera. An IP-66 outdoor rating means a giant dust storm or strong jets of water won’t affect this camera’s weatherproof housing. It’s even available in black or white to blend in perfectly wherever you need it.
Beautiful 960H analog resolution with 720 TVL supports clear widescreen viewing for modern displays, and delivers the best image on an analog camera, capturing finer detail than ever before.
Get some shelter from the storm with this weatherproof-rated outdoor camera. We built our housing to be tough and durable, so strong jets of water won’t affect these domes.
Our 100-series cameras come equipped with a microphone that can be used with front door installs or for any other applications. Set it up through a BNC connection located on the back of the camera—now your customer’s system is ready for action.
This camera features a small, sleek profile to suit indoor or outdoor aesthetics.
Stop squinting! Luma 100-series cameras offer up to 10 meters or 30 feet of IR. Night vision IR helps eliminate over-exposure in dim settings, and evenly illuminates the subject so you can make sure you’re not missing something.
Luma cameras can detect improper polarity and will shut down circuitry until the circuit is fixed, keeping your install running safe and smooth, reducing failures and helping to prevent return trips.
There are no mounting accessories available for this camera series.
See the differences between the 100, 300, 500, and 700 Series Analog cameras.
| LUM-100-DOM-A-BL | LUM-100-DOM-A-WH |
|---|---|
1/3" DIS sensor |
1/3" DIS sensor |
Fixed, 2.8mm |
Fixed, 2.8mm |
93˚ |
93˚ |
0.01 Lux @ (F1.2, AGC ON), 0 LUX with IR |
0.01 Lux @ (F1.2, AGC ON), 0 LUX with IR |
10m |
10m |
850nm |
850nm |
Yes |
Yes |
960H |
960H |
Pan: ± 30°, Tilt: 0 - 80°, Rotation: ± 180° |
Pan: ± 30°, Tilt: 0 - 80°, Rotation: ± 180° |
No |
No |
720 |
720 |
No |
No |
62dB |
62dB |
No |
No |
Yes |
Yes |
Vandal Proof |
Vandal Proof |
No |
No |
Yes |
Yes |
No |
No |
2D |
2D |
No |
No |
No |
No |
12 VDC |
12 VDC |
Max. 2W(Max. 4W with IR cut filter on) |
Max. 2W(Max. 4W with IR cut filter on) |
Black |
White |
3.82” × 1.83” × 3.92” |
3.82” × 1.83” × 3.92” |
IP66 |
IP66 |
IK07 |
IK07 |
CE, FCC, UL |
CE, FCC, UL |
-14˚F ~ 140˚F |
-14˚F ~ 140˚F |
90% |
90% |
.66 lb |
.66 lb |
Image Sensor |
Lens |
Est. Horizontal Viewing Angle |
Minimum Illumination |
IR Range |
IR Wavelength |
Day & Night Adjustable |
Video Resolution |
Adjustments |
OSD |
Resolution (TVLs) |
RS485 |
Signal to Noise Ratio |
Auto Gain Control |
Smart IR |
Vandal Resistant |
White Balance |
Backlight Compensation |
WDR |
DNR |
Sense-Up (Elec. Shutter) |
Mirror Mode |
Line Voltage |
Power Consumption |
Color |
Dimensions (W x H x D) |
Weather Rating |
Ratings |
Certifications |
Operating Temperature |
Operating Humidity |
Weight |
Luma Surveillance™ Analog cameras have a 5-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, disassembled, or improperly installed. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
