Lutron® Lumaris Hardwired Power Interface for Tunable White Tape Light
The hardwired power interface for Lumaris Tunable White Tape Light allows for more versatility during project installations by powering up to 3 Lumaris wireless controllers and 48 ft. of Lumaris LED tape. Three (3) barrel-to-terminal adapters for easy wiring from the Wireless Controller to the hardwired power interface are included. The Lutron Lumaris Tunable White LED Tape Light solution is the first professional grade tape light that’s native to Lutron RadioRA 3 and HomeWorks QSX.

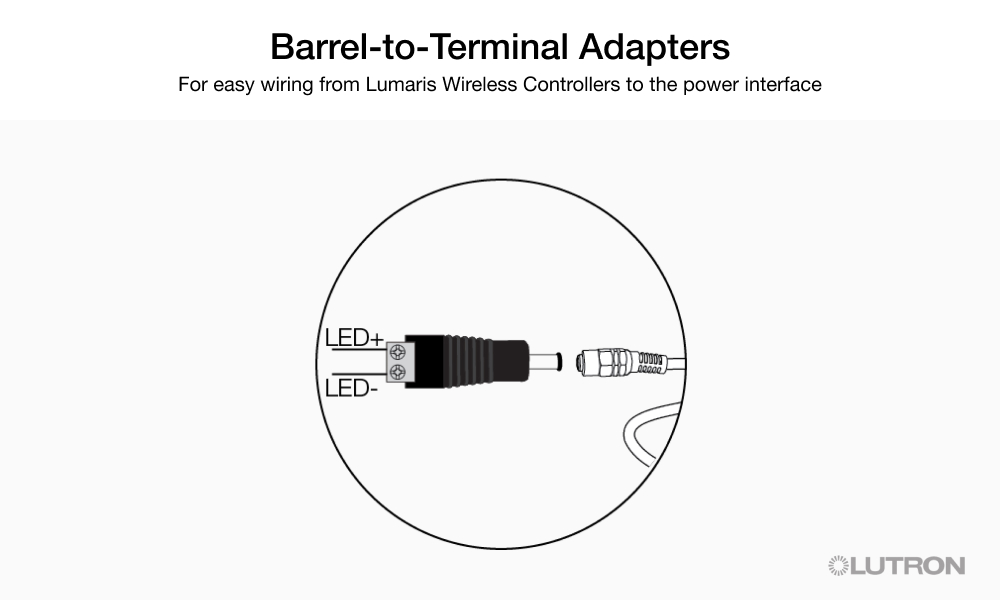

Barrel-to-Terminal Adapters
Includes (1) power interface for Lumaris Tunable White Tape Light and (3) barrel-to-terminal adapters.

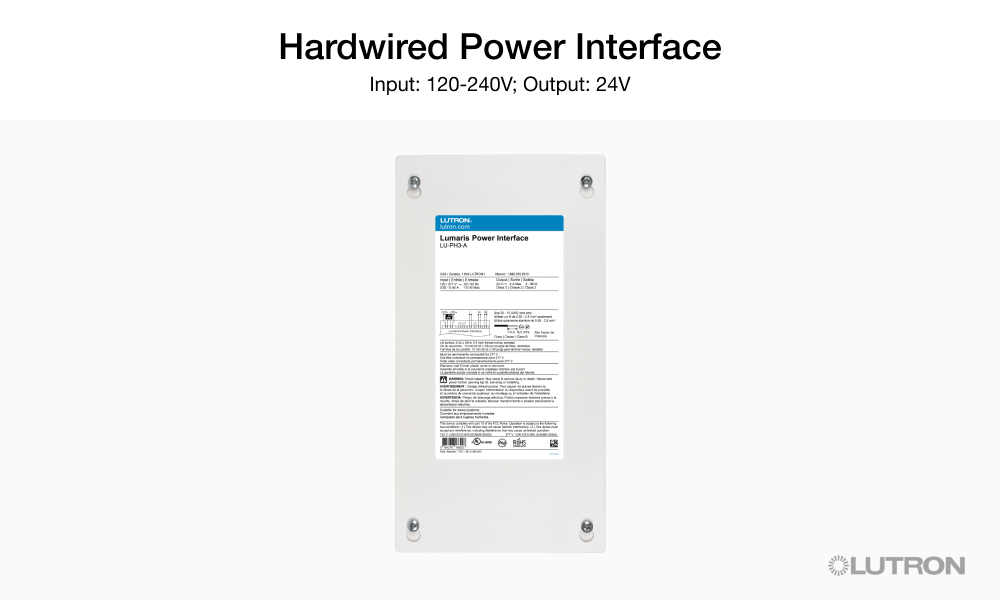

Hardwired Power Interface I/O
Input: 120/277V, (50/60Hz); Output 24V.

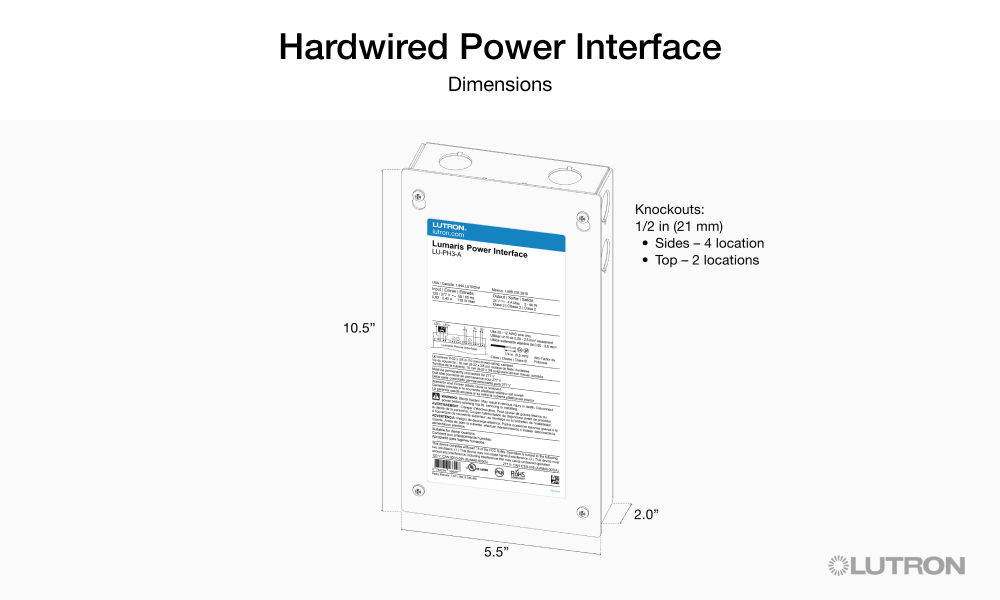

Hardwired Power Interface Dimensions
Accepts 12 AWG to 20 AWG; see wiring section on product spec sheet for specific length configurations.

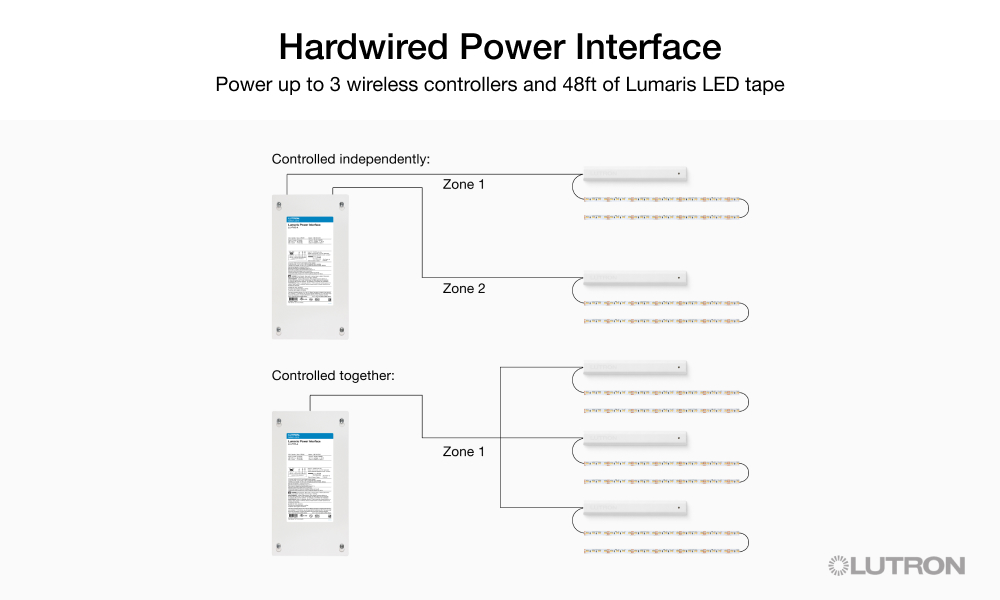

Independent and Zone Control
For independent control, wireless controllers must be homerun back to the power interface; For zone or grouped applications, wireless controllers can either be home-run or T-tapped back to the power interface.
Wireless Controller I/O
Must be used with a Lumaris Wireless Controller for RadioRA3 (RRL-TWC) or the Lumaris Wireless Controller for HomeWorks QSX (HWL-TWC).
Rated for Indoor damp/Dry Locations
Indoor damp/Dry location rating; Output short-circuit and overload protection.
Specs
Specifications
| LUT-PH3-A |
|---|
0%-90%, non condensing |
cULus Listed for USA and Canada • FCC Part 15 – Class A (277 V~) – Class B (120 V~) • Meets ANSI C62.41 category A surge protection standards up to and including 4 kV • Meets ULR 8750/CSA C22.2 No. 250.13-14, “Light Emitting Diode (LED) Equip |
32F - 104F (0C - 40C) |
24V |
120/277V |
Operating Humidity |
Certifications |
Operating Temperature |
Power Output |
Power Input |
