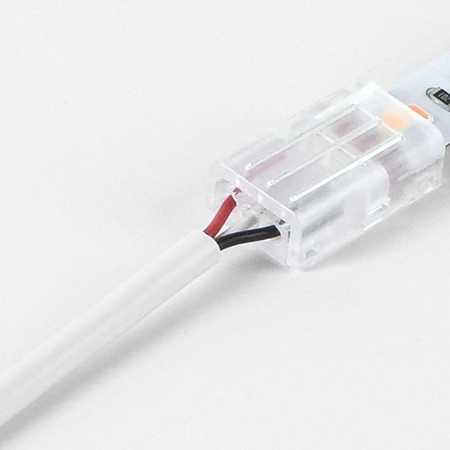

This 3-conductor 22AWG cable is 50 ft. long and available for Lutron’s Lumaris Tunable White tape light (tape light reel and other accessories sold separately.)
Lutron® 3-Conductor, 22AWG Wire
This 3-conductor 22AWG cable is 50 ft. long and available for Lutron’s Lumaris Tunable White tape light (tape light reel and other accessories sold separately.)
What’s Included
Includes 50 ft. of 3-conductor 22AWG cable for Lumaris tunable white tape light (LED Tape Light reel and accessories sold separately.)
Extended Range
Extend the length of the 24V cable coming from the power supply by cutting the plug ends off both the power supply and the wireless controller and adding cable of the appropriate gauge (see Spec sheet for details.)
Maximum Run of 10 ft.
The maximum amount of cable allowed on the output of the wireless controller is 10 ft. (3.0m.) The cable can be added to the beginning or can be used to break up runs of LED strip light.
Support for up to 16.4 ft.
Supports up to 16.4 ft. in Lumaris Tunable White Tape (LU-T05-XX) to one wireless controller (RRL-TWC-WH): single run, or field-cut the LED tape and break up into multiple runs.
Adjustable Limits
For runs that use 7 or more wire-to-tape connectors on the output of a wireless controller, the maximum length of cable allowed is reduced by 6 inches (152.4mm.)
Check Your Power Supply
Power supply input: 120V (50/60Hz), output: 24V 1500mA, 36W maximum; wireless controller input: 24V, output: 24V, 0-1375 mA, 33W maximum (sold separately.)
Ideal For Nearly Anywhere Around the House
Lumaris tunable white tape light is indoor damp/dry location rated; output short-circuit and overload-protection.
Specs
Specifications
| LUT-LU-WK1-TW |
|---|
White |
100–240 V~ 50/60 Hz 1 A max |
24 V- 1.5 A |
32 °F to 104 °F(0 °C to 40 °C) |
2.40" x 0.85" x 0.22" |
Color |
Power Input |
Power Output |
Operating Temperature |
Dimensions (W x H x D) |
