Description
Description
This wireless controller is designed with a power supply to feed 24V to the accompanying Lutron’s Lumaris tunable white tape light (tape light reel and other accessories sold separately.) The Lutron Lumaris tunable white LED tape light solution is the first professional-grade tape light that’s seamless and native to Lutron RadioRA 3. Tunable white accent lighting takes scene control to the next level when paired with RA 3 keypads, the Lutron app, and automation. This LED strip light solution consists of field-cut, tunable white tape, a wireless controller with integrated LED drivers, connectors, a 3-wire cable, and a power supply. Built with Lutron’s best-in-class quality and reliability, Lumaris offers continuous flicker-free dimming from 100% down to 0.1% of measured light output (CCT range maintained down to 1%.) Equipped with Lutron’s Clear Connect-Type X Technology, the wireless controller provides ultra-reliable wireless communication. Complete your LED strip light solution with a compatible light channel and lens (not included.)

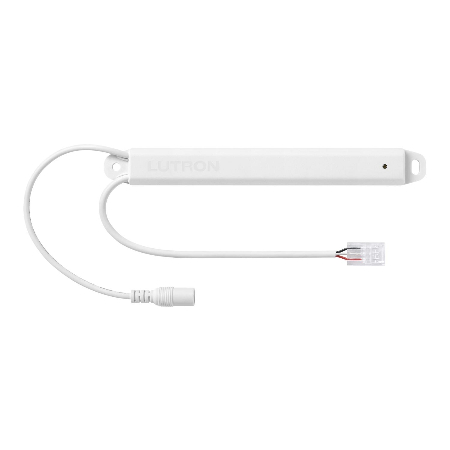

Lutron® Wireless Controller and Power Supply
This wireless controller is designed with a power supply to feed 24V to the accompanying Lutron’s Lumaris tunable white tape light (tape light reel and other accessories sold separately.) The Lutron Lumaris tunable white LED tape light solution is the first professional-grade tape light that’s seamless and native to Lutron RadioRA 3. Tunable white accent lighting takes scene control to the next level when paired with RA 3 keypads, the Lutron app, and automation. This LED strip light solution consists of field-cut, tunable white tape, a wireless controller with integrated LED drivers, connectors, a 3-wire cable, and a power supply. Built with Lutron’s best-in-class quality and reliability, Lumaris offers continuous flicker-free dimming from 100% down to 0.1% of measured light output (CCT range maintained down to 1%.) Equipped with Lutron’s Clear Connect-Type X Technology, the wireless controller provides ultra-reliable wireless communication. Complete your LED strip light solution with a compatible light channel and lens (not included.)
What’s Included
Includes one (1) wireless controller and one (1) power supply; Lumaris tape light reel and accessories sold separately.
Check Your Power Supply
Power supply input: 120V (50/60Hz), output: 24V 1500mA, 36W maximum; wireless controller input: 24V, output: 24V, 0-1375 mA, 33W maximum.
Clear Connect - Type X Compatible
Communicates wirelessly using Lutron’s ultra-reliable Clear Connect-Type X technology; devices must be within 25 ft. of other Clear Connect-Type X devices (see App Note #804 for more information.)
Support for up to 16.4 ft. of Tape
Supports up to 16.4 ft. (5m) in Lumaris tunable white tape (LU-T05-XX) to one wireless controller: single run, or field-cut the LED tape and break up into multiple runs.
Lutron RadioRA 3 Compatible
Seamless integration for Lutron RadioRA 3 keypads, app, and programming software.
Ideal For Nearly Anywhere Around the House
Indoor damp/dry location rating; output short-circuit and overload protection.
Specs
Specifications
| LUT-RRL-TWC-WH |
|---|
White |
100–240 V~ 50/60 Hz 1 A max |
24 V- 1.5 A |
32 °F to 104 °F(0 °C to 40 °C) |
2.40" x 0.85" x 0.22" |
Color |
Power Input |
Power Output |
Operating Temperature |
Dimensions (W x H x D) |
