Pulse-Eight neo:UltraSR Receiver

P8-HDBT2-L-RX-S-A

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

PDPRewardPointsEspot
Add to cart
Description
Specs
Description
Description

The neo:Ultra Receiver is the perfect partner for a neo:X range of Matrices, with an ultra thin design plus award winning integrated features, the neo:Ultra is the ultimate HDBaseT solution.

Pulse-Eight neo:UltraSR Receiver

The neo:UltraSR Receiver is the perfect partner for a neo:X range of Matrices, with an ultra thin design plus many integrated features, the neo:UltraSR is the perfect short range HDBaseT solution.

Pulse-Eight have been designing and manufacturing their own products in the UK since 2010 and have created industry leading HDBaseT and HDMI products including matrices, splitters and extender sets alongside video and audio accessories that add vital connection and manipulation abilities to the installers’ tool box.

Front and back of receiver

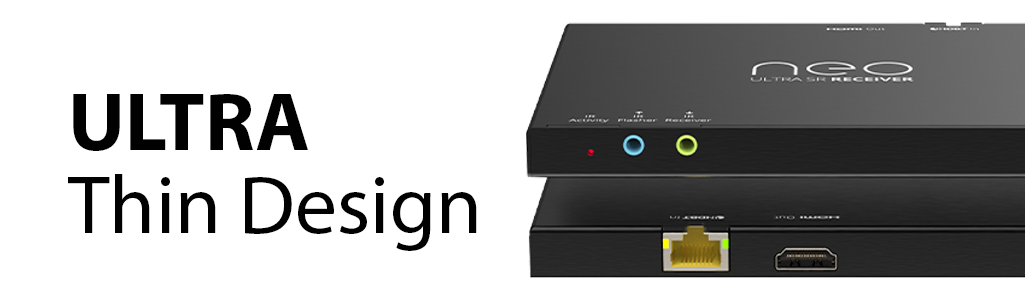

Ultra Thin Design

The neo:UltraSR Receiver has been designed to be as slim as physically possible, measuring just half an inch thick (13mm), the receiver can be easily hidden out of sight behind the display.

Angled view of flat screen TV with compression icon

DSC Visually Lossless Compression

Using the latest technology to distribute a true 4K UHD, DSC (Display Stream Compression) is a visually lossless 4K low latency video stream allowing for a full-colour gamut to the display.

Unlike other compressions, DSC preserves the 10-bit or 12-bit HDR signals rather than reduce to 8-bit then reproduce. This produces the most accurate picture quality available today.

Ethernet cord with power icon

Power Over HDBaseT (PoH)

The neo:UltraSR HDMI Receiver is powered solely via the HDBaseT link. Simply connect a CAT cable between the receiver and the neo matrix to transfer the video and power with no need for a power supply on the receiver, just the single cable will do it all.

Arrow icon in top left corner

Audio Return Channel (ARC)

The audio from the display can be sent back to enable audio breakout - perfect when using the TV’s in-built apps via HDMI with ARC but require the audio through external speakers. ARC uses the same cable as the HDBaseT link so no additional wires required.

IR product with circular icon in top left corner

Bi-Directional IR

Not just source control, sometimes your control system needs to use IR to control the TV or perhaps another item of equipment in the room, with bi-directional IR, you can connect IR buds* to devices to control remote and local devices.

*Compatible with Control4 and Episode receivers and flashers only.

Specs
Specifications
P8-HDBT2-L-RX-S
1x HDBaseT
1x HDMI
HDMI 2.0
up to 2.3
6Gbps per data lane (18Gbps total)
18.0 Gbps
Yes - Bidirectional
HDBaseT 2.0 (PoH compliant)
4K up to 40m (130ft), 1080p up to 70m (230ft)
All 4K formats up to 4K* (4:4:4), 1080p, 1080i, 720p, 576p, 480p @24/25/30/50/59.94/60Hz.
(* 4K resolution limited to 3840 x 2160 over HDBT)
YCbCr4:4:4, YCbCr2:2, YCbCr4:2:0, RGB
YUV (rec. 601, rec709, rec2020), RGB
8-bit, 10-bit, 12-bit
HDR10/HLG @ 60Hz and Dolby® Vision™ @ 30Hz
Yes
Yes
Supports Episode IR Receivers (not included)
Supports Episode IR Flashers (not included)
None
None
5 to 90% RH (no condensation)
0 to +35°C (32 to +95°F)
-20°C to 60°C (-4°F to 140°F)
PoH powered device (PD)
UKCA, CE, FCC (SDoC), RoHS
Human Body Model: 15kV air, 8kV contact
5.83" x 4.13" x 0.51"
.42 lb
6.77" x 4.49" x 1.30"
P8-HDBT2-U-RX-S

Video Inputs
Video Outputs
HDMI Compliance
HDCP Compliance
Input TMDS Signal
Bandwidth
CEC
Extender Technology
Transmission Distance
Video Resolution
Chroma Subsampling
Colorspace
Color Depth
Video Features
IR Inputs to Room
IR Outputs to Source
IR Receivers
IR Flashers
Ethernet Ports
RS-232 Ports
Operating Humidity
Operating Temperature
Storage Temperature
Power Input
Certifications
ESD Protection
Dimensions (W x H x D)
Weight
Box Dimensions
