Signature 3 Series All Weather In-Ceiling Dual Voice Coil Speaker (Each) - 6"

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
UPP
Description
Specs
Support
Description
Description

Signature by Episode is the most versatile, dynamic, install-friendly speaker in the industry.

Signature 3 Series All Weather In-Ceiling Dual Voice Coil Speaker

Signature by Episode is the most versatile, dynamic, install-friendly speaker in the industry. Designed and engineered with a scientific focus, Signature provides high-performance sound through low distortion, wide dispersion, and flat frequency response. Plus, Signature speakers are crafted with intuitive features like Push Lock by Swarm technology, as well as a one- or two-step install option and a full suite of accessories for unparalleled convenience on any install.

Image of a Push Lock technology on side of speaker

Easy Install

Signature by Episode features exclusive Push Lock by Swarm technology, a toolless mounting solution specifically designed for Signature. For both in-ceiling and in-wall speakers, Push Lock secures the speaker with the simple press of a button for the fastest and most secure install on the market. Plus, the dogs can be cinched down an extra 6mm when you need additional security in situations with uneven sheetrock, popcorn ceilings, etc.

Dealer installing in-ceiling speaker

Your Speaker, Your Choice

Every Signature by Episode speaker (yes, both in-ceiling and in-wall) can be installed via a one-step or two-step process. Install the speaker in one step with zero tools and one trip up the ladder or remove the center core of the speaker and install the cradle with optional backbox and grille, so you don’t risk speaker damage while the build completes.

Zoomed-in view of woofer

Polypropylene Woofer

A forward-set polypropylene woofer delivers impeccable clarity and punchy bass for high-performance sound in any room.

Zoomed-in view of tweeter

Adjustable Silk Dome Tweeter

An adjustable tweeter provides direct sound to create more immersive experiences custom to each application.

Close up of woofer and tweeter

Unmatched Performance

Crafted in house with a sleek finish and elite components designed to achieve the sound principles of the NRC, Signature by Episode delivers lifelike tones that are pleasing to the ear and won’t fatigue the listener over time. With premium woofer and tweeter material, these bad boys deliver deep bass and unmatched tonal clarity for lifelike sound at any listening level. Signature’s superior audio quality is accomplished by adhering to our three philosophies on sound: low distortion, wide dispersion, and flat frequency response.

Angled view of backbox

Direct-Mount Backbox

The one-step install features a jumperless design for a single-wire connection to the rear of the backbox (sold separately) for a once-up-the-ladder toolless install. The two-step install lets you prewire and install the backbox to the cradle, keeping blown insulation from falling through the ceiling and maintaining pressure during home efficiency tests. Plus, when you return to finish the job, the speaker installs into the cradle & backbox with no wires needed AND no tools. Every Signature by Episode speaker comes with a cradle and has a compatible cradle that can be purchased separately.

View Signature Cradle, Enclosure Compatibility Sheet > >

Dealer installing speaker into ceiling

Easy Protection

The speaker’s protective cover serves as a handle when carrying up a ladder, as a shield during transportation and install, and as a guard during paint. They are included with all in-ceiling speakers and cradles to provide protection and convenience.

Speaker with white grille offset

Stronger Grille Magnets with Rust Shield

The magnet structure on the speaker frame has nearly 2X the holding capacity of other architectural speakers, preventing grilles from vibrating at loud volumes and bowing over time. Plus, the grilles are protected with a rust-resistant coating that can handle every season and still look good!

View Signature Cradle, Enclosure Compatibility Sheet > >

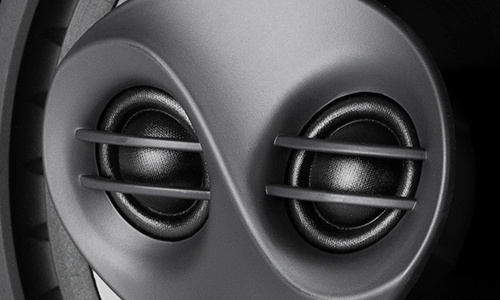

Zoomed-in view of dual tweeters

Innovative Tweeter Pods

Signature tweeter pods are vented in the back to drop the resonance frequency of the tweeter, allowing the system to be crossed over for greater dispersion and less distortion. The lower the crossover, the less work the woofer has to do to play higher in the frequency band, providing greater spatiality when listening to music.

Speaker with water droplets

All-Weather Hardware

Signature by Episode outdoor speakers use weather-resistant hardware that can take a beating from Mother Nature and still not rust. Plus, the speaker magnets have an epoxy coating to prevent rusting, making these outdoor speakers a fan favorite in any outdoor space.

Inside of speaker showing dual voice coils

Dual Voice Coil

This speaker has two voice coils that allow it to deliver both stereo channels through one speaker, creating stereo sound from a single speaker location.

Drywall with bracket inserted and speaker being installed

Flush-Mount Design

Our affordable flush-mount brackets (sold separately) offer a unique design to turn any Signature by Episode and Episode speaker into a flush-mounted solution, providing a seamless transition from grille to wall without cracking the drywall or requiring a new speaker. You won’t mind passing this simple solution to the drywaller to help get the job done!

Zoomed-in view of ribbed surround

Ribbed Surround

Inverted surrounds feature a parabolic design to provide greater cone excursion in a linear form without rippling of the surround, allowing the speaker to be played louder without distortion.

Red, green and yellow round brackets

Simple, Versatile Brackets

Our Signature by Episode speakers are compatible with our ES-ESS brackets and several thin-bezel, paintable grilles for a smooth, minimalistic finish. And as an added plus, our Signature by Episode speakers share the same cutout dimensions as all our other Epsiode speakers for ultimate versatility. This speaker is compatible with ES-ESS-BRKT-IC and SIG-CRADLE-AW-IC.

View Episode Bracket Compatibility Sheet > >


Specs
Specifications
SIG-36-AW-ICDVC
Gold plated push terminals
43 Hz - 20 kHz
-
2.5 kHz
Dual 8 ohm
130 Watts
90 dB
3/4" Adjustable silk dome tweeter
6" Injection-molded polypropylene cone woofer
Mounting Depth: 4.8"
Mounting Depth w/ Enclosure: 6.2"
Finished Dimension w/ Grill: 9.6"
8.3"
5 lb
3/8" to double 1/2" substrate
15 ~ 20 Liters
110°

Connector Type
Frequency Response
Adjustments
Crossover Frequency
Nominal Impedance
Power Peak
Sensitivity
Tweeter
Woofer
Mounting
Dimensions (W x H x D)
Cutout Diameter
Weight
Dog Ear Clamping Range
Optimal Air Volume Behind Speaker
Listening Angle

Lifetime Limited Warranty

All Signature Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
