Cool Components™ Advanced LT Pro Controller

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Description
Description

Automated control of Cool Components fan products featuring on/off and variable speed fan control. Features 5 fan modes (70, 80, 90, 100, 110F) and 3 alarm modes (Off, 115, 125F). A must for applications that require cooling systems to be as silent as possible.

Cool Components Advanced LT Pro Controller

Automated control of Cool Components fan products featuring on/off and variable speed fan control. Features 5 fan modes (70, 80, 90, 100, 110F) and 3 alarm modes (Off, 115, 125F). A must for applications that require cooling systems to be as silent as possible.

Important Note - This unit should only be used with regulated power supplies. If not using a regulated power supply and using an unregulated adjustable voltage power supply such as the PS-300 or PS-500, the power supply should then possibly require a setting of 9V, although this is not optimal. The issue is that often times unregulated power supplies will supply higher voltage when not under load or under a light load. Higher voltage will not damage the unit, it simply will not perform within the specifications.

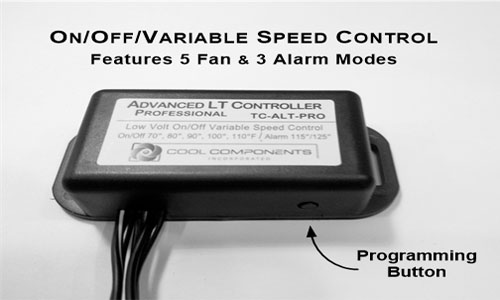

Image of Cool Components ALT Pro controller

Automated Control

Fans turn on and off and also ramp up automatically based on the desired mode/set point.

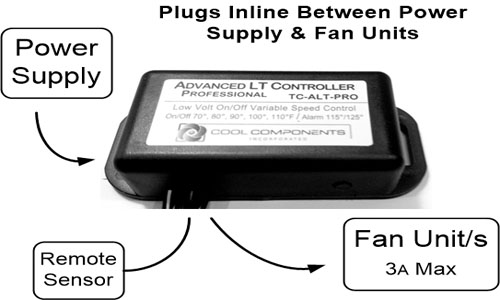

Graphic showing the fan units, power supply and remote sensor

Trouble-Free Use & Installation

Simply plug inline between the power supply and fan unit and set the modes. The unit is polarity protected and settings restored if power cycles.

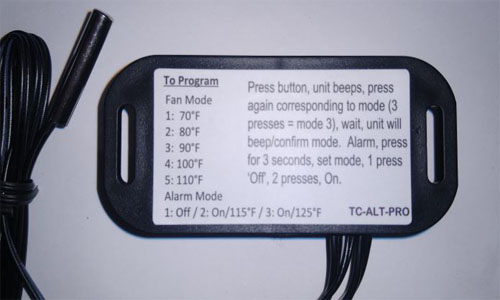

Image of programming presets

Professional Reliability

A truly professional product designed to last.

Versatile & High Performance

While rated at 2amps, units if properly installed can handle up to 3amps which can power multiple fans with a single controller.

Technical Notes

This is a 12V variable voltage controller, it is not PWM, which means it can be used with other 12V fans and devices but it is designed and optimized for use with CCI products.

Specs
Specifications
TC-ALT-PRO
Output Rated at 2amps (Max)
3" x 1 3/8" x 3/4" (76 mm x 35 mm x 19mm)
Black ABS Plastic
This is compatible with all Cool Components Low Voltage Products
12 DC

Current Rating
Dimensions (W x H x D)
Construction
Compatibility
Voltage

Affiliate Warranty Information

We want to make our Affiliate program as easy as possible. That is why we process all claims directly without any third party telephone tag. Specific warranty terms and details from the manufacturer are listed below.

Cool Components™ Warranty

Cool Components™ offers a Lifetime Warranty on housings and enclosures, 3-Year warranty on fans, and 1-Year warranty on electronics. Products are warranted to be free from defects during this period when operated under normal circumstances and environments with routine maintenance and cleaning. Abuse, faulty cooling system design and installation, harsh environments, and other situations that would lead to premature failure are not covered under warranty. In the event of fan failure, replacement fans will be provided at no charge, and in the event the failure is not covered under warranty, replacement fans can be purchased to cost effectively repair the products. Defective housings and electronics should be returned to Cool Components™ Inc. after completing the RA process.
