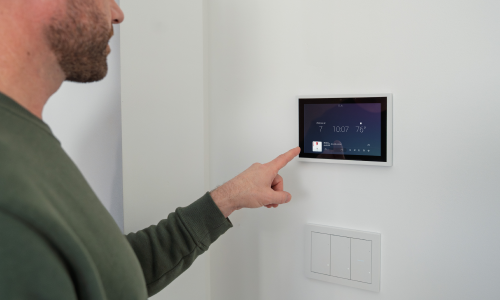

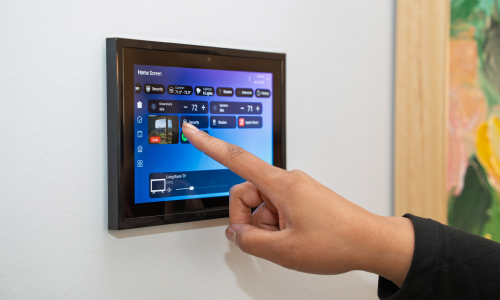

Control4® T5 Series In-Wall Touchscreen
Introducing the new T5 In-Wall Touchscreen: sleek, smart, and easy to install. New features, such as a proximity sensor, dynamic screensaver, quad microphones, and Dark Mode, put control at users' fingertips. Available in 8” and 11” models.
Important Note - Available for preorder. Shipping to begin Q2 2026. Minimum OS supported is X4.2
Sleek Design
- Low-Profile look with flush mount and minimal bezel that complements modern interiors.
Smarter Interaction
- T5's proximity sensor enables the touchscreen to react intelligently as users approach.
- Features Dark Mode, a faster processing system, quad microphones, and more.
Made to Match Lux Lighting
- Magnetic trims come in matching Lux product colors for a seamless look.
New Dynamic Screensaver
- With just a tap, users can control active media sessions and device actions.
Easy Install
- Hugs the wall with a flush surface mount and thin bezel.
- One-piece Power over Ethernet (PoE) simplifies installation; optional AC accessory available.
- Works with standard 2-gang back box.
Future-Ready Platform
- GPU platform enables future scalability and more responsive user control.
- Auto Firmware Update ready for consistent feature updates without any action required by integrator or end customers.
- Packed with features and hardware that will be enabled in future Control4 software releases enabling even smarter, sophisticated experiences.
Specs
Specifications
| C4-T5IW11-WH | C4-T5IW8-WH | C4-T5IW11-MB | C4-T5IW8-MB |
|---|---|---|---|
Resolution: 1920 x 1200 Diagonal: 10.5" Capacitive touch |
Resolution: 1920 x 1200 Diagonal: 8" Capacitive touch |
Resolution: 1920 x 1200 Diagonal: 10.5" Capacitive touch |
Resolution: 1920 x 1200 Diagonal: 8" Capacitive touch |
802.11b/g/n 2.4 GHz 802.11a/n/ac 5 GHz Security: WEP, WPA/WPA2/WPA3 PSK, 802.1x EAP, PEAP |
802.11b/g/n 2.4 GHz 802.11a/n/ac 5 GHz Security: WEP, WPA/WPA2/WPA3 PSK, 802.1x EAP, PEAP |
802.11b/g/n 2.4 GHz 802.11a/n/ac 5 GHz Security: WEP, WPA/WPA2/WPA3 PSK, 802.1x EAP, PEAP |
802.11b/g/n 2.4 GHz 802.11a/n/ac 5 GHz Security: WEP, WPA/WPA2/WPA3 PSK, 802.1x EAP, PEAP |
~720p (1280x960 4:3) |
~720p (1280x960 4:3) |
~720p (1280x960 4:3) |
~720p (1280x960 4:3) |
Control4 X4.2 |
Control4 X4.2 |
Control4 X4.2 |
Control4 X4.2 |
PoE: (IEEE 802.3af), 13W peak AC: 120-240V 50/60Hz, via optional power supply (C4-T5IW-AC) |
PoE: (IEEE 802.3af), 13W peak AC: 120-240V 50/60Hz, via optional power supply (C4-T5IW-AC) |
PoE: (IEEE 802.3af), 13W peak AC: 120-240V 50/60Hz, via optional power supply (C4-T5IW-AC) |
PoE: (IEEE 802.3af), 13W peak AC: 120-240V 50/60Hz, via optional power supply (C4-T5IW-AC) |
White (Gloss) |
White (Gloss) |
Midnight Black (Matte) |
Midnight Black (Matte) |
Quad-Mic Array |
Quad-Mic Array |
Quad-Mic Array |
Quad-Mic Array |
Proximity, Ambient Light Sensor |
Proximity, Ambient Light Sensor |
Proximity, Ambient Light Sensor |
Proximity, Ambient Light Sensor |
Indoor use only 0~40C, 32~104F |
Indoor use only 0~40C, 32~104F |
Indoor use only 0~40C, 32~104F |
Indoor use only 0~40C, 32~104F |
-22 ~ +158°F; -30 ~ +70°C |
-22 ~ +158°F; -30 ~ +70°C |
-22 ~ +158°F; -30 ~ +70°C |
-22 ~ +158°F; -30 ~ +70°C |
1.9 lb (0.86 kg) |
1.4 lb (0.63 kg) |
1.9 lb (0.86 kg) |
1.4 lb (0.63 kg) |
7.20" x 10.55" x 1", 0.62" on-wall
(183mm x 268mm x 24mm, 16mm on-wall) |
5.75" x 8.27" x 1", 0.62" on-wall
(146mm x 210mm x 24mm, 16mm on-wall) |
7.20" x 10.55" x 1", 0.62" on-wall
(183mm x 268mm x 24mm, 16mm on-wall) |
5.75" x 8.27" x 1", 0.62"" on-wall
(146mm x 210mm x 24mm, 16mm on-wall) |
Standard US Style 2-Gang J-Box C4-NWB57C-P* C4-NWB57C-M C4-RWB57C-P* C4-RWB57C-M * Plastic wall boxes are not compatible with AC power supply adapter |
Standard US Style 2-Gang J-Box C4-NWB57C-P* C4-NWB57C-M C4-RWB57C-P* C4-RWB57C-M * Plastic wall boxes are not compatible with AC power supply adapter |
Standard US Style 2-Gang J-Box C4-NWB57C-P* C4-NWB57C-M C4-RWB57C-P* C4-RWB57C-M * Plastic wall boxes are not compatible with AC power supply adapter |
Standard US Style 2-Gang J-Box C4-NWB57C-P* C4-NWB57C-M C4-RWB57C-P* C4-RWB57C-M * Plastic wall boxes are not compatible with AC power supply adapter |
1 x T5 Unit (PoE, built in) 1 x T5 11" Trim Ring (pre-installed) 1 x T5 11" wall mounting bracket & screw kit 1 x Security screw driver (2mm hex) |
1 x T5 Unit (PoE, built in) 1 x T5 8"" Trim Ring (pre-installed) 1 x T5 8"" wall mounting bracket & screw kit 1 x Security screw driver (2mm hex) |
1 x T5 Unit (PoE, built in) 1 x T5 11" Trim Ring (pre-installed) 1 x T5 11" wall mounting bracket & screw kit 1 x Security screw driver (2mm hex) |
1 x T5 Unit (PoE, built in) 1 x T5 8"" Trim Ring (pre-installed) 1 x T5 8"" wall mounting bracket & screw kit 1 x Security screw driver (2mm hex) |
Screen Description |
Networks Supported |
Camera |
Minimum Supported OS |
Power Supply |
Included Trim Ring Color |
Audio |
Sensors |
Operating Temperature |
Storage Temperature |
Weight |
Dimensions (W x H x D) |
Backbox Compatability |
Included in Box |
Exclusive Brand Warranty
This product has a Limited Warranty, subject to the terms and conditions of the ADI Exclusive Brands Limited Hardware Warranty Click Here.
