Triad Subwoofer Rackmount Amplifier
Triad® Rackmount Subwoofer Amplifiers
This digital subwoofer amplifier delivers 300W of clean power at 4 Ohms, making it the perfect companion for a wide variety of Triad subwoofers. This single-channel amplifier features convenient EQ modes and variable power-on options, all wrapped in a 1U chassis.

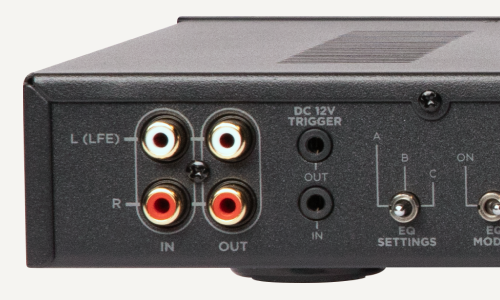

Handy Connections
The TS-SUBAMP300 offers versatile connectivity with RCA line-level and LFE inputs, plus outputs for linking additional amplifiers. It supports multiple turn-on modes, including a 12V trigger input and output for flexible installation. Dual subwoofer outputs in parallel configuration deliver consistent audio to multiple subs with ease.

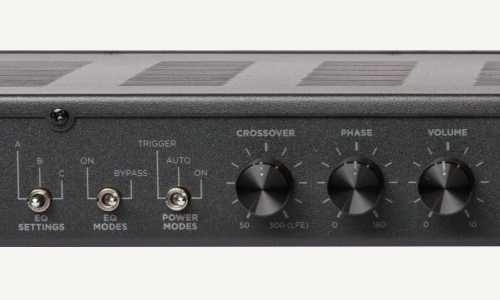

Custom EQ Settings
With 3 custom EQ settings, you can select the correct EQ for your specific Triad subwoofer to optimize its performance. Or, when turned off, the amplifier can be configured for non-Triad subwoofers.
Compact 1U Design
When rack space is a premium, the rack amps' 1U design ensures maximum performance in minimal space, whether it is rack amp or table-top mounted. Rack ears are included.
Intelligent Audio Protection
A built-in subsonic filter removes inaudible low frequencies, freeing up power for the notes you can actually hear, which boosts efficiency and clarity. To further protect your system, an integrated limiter circuit reduces power output when it's overdriven, helping preserve your amplifier, subwoofer, and overall listening experience.
TS-SUBAMP300 |
---|
1-Channel |
201-300W |
8-7/8" x 19" x 1-15/16" / 181 x 482.6 x 49 mm w/ Rack Ears 8-7/8" x 16-15/16" x 1-11/16" / 181 x 383 x 42.7 mm w/o Rack Ears |
9.3lbs / 4.2 Kgs |
Unbalanced RCA Input: Qty.2 ( Left/LFE and Right) |
Unbalanced RCA Output: Qty.2 ( Left/LFE and Right) |
Status LED (multicolor RGB) Power LED (blue) |
300W-CEA @ 2.5% THD/ 40hms |
IEC AC Inlet C14 |
3.5mm Mono Jack In/Out |
3Ohms Minimum |
30Hz-200Hz (+/-1dB) - Bypass |
90.6dB @ 100Hz (A-Weighted) |
30 - 200 Hz < 0.15% @ 1/3 Power 30 - 200 Hz < 2.5% @ Max Power |
<-60dB @ 10W |
95.7dB @ 100Hz |
Unbalanced RCA: Single LFE Input (-11.1dBv) 280mV, Stereo L+R (-17.1dBv L/R) 140mV + 140mV Balanced XLR: None |
32 - 102F, 0-40C |
Convection (No Fan) |
-4 -158F, -20C - 70C |
6.3A (250V) |
5% - 95% Non-Condensing |
Channels |
Watts Per Channel |
Dimensions (W x H x D) |
Weight |
Inputs |
Outputs |
Front Power LED |
Power |
Power Connection Type |
12V Trigger |
Impedance |
Frequency Response |
SNR |
Total Harmonic Distortion (THD) |
IMD - SMPTE |
DNR |
Sensitivity Input |
Operating Temperature |
Cooling requirements |
Storage Temperature |
Fuse Type |
Humidity |
