Specially designed to pair with our Strong VersaBox™ Pro or VersaMount™, the WattBox® 200 Series Compact Power Conditioner with Coax and Ethernet “drops in” to any of these boxes, utilizing the in-wall space beneath the box to save precious real estate inside the box for other equipment. But whether you place it in a structured wiring can, under a table, in a podium, or on the wall - this compact power conditioner provides premium surge protection and noise filtration to six outlets, as well as coax and Telephone/Ethernet protection. And don't let its size fool you. It's outside is just as rugged as the protection it offers, with an 18 gauge steel chassis.
Specially designed to pair with our Strong VersaBox™ Pro or VersaMount™, the WattBox® 200 Series Compact Power Conditioner with Coax and Ethernet “drops in” to any of these boxes, utilizing the in-wall space beneath the box to save precious real estate inside the box for other equipment. But whether you place it in a structured wiring can, under a table, in a podium, or on the wall - this compact power conditioner provides premium surge protection and noise filtration to six outlets, as well as coax and Telephone/Ethernet protection. And don't let its size fool you. It's outside is just as rugged as the protection it offers, with an 18 gauge steel chassis.
Fireproof MOV
Total Outlets
Filter Banks
Surge Protection
This WattBox is specially designed to “drop in” to the VersaBox Pro or VersaMount to help increase precious in-wall storage space, or it can be placed in a Wirepath ONE structured wiring can to save you even more space inside the box. And installation is easy: Just punch out the knockout at the bottom of the Wirepath ONE, VersaBox Pro or VersaMount, drop the WattBox unit into the knockout, and add the included short power cord that plugs right into the outlet. Then you’re all powered up and good to go!
To make sure that all of this WattBox's connections are accessible when it's dropped into a VersaBox Pro or VersaMount, we placed them all on one side - a smart, simple solution to make your life easier. Need to use a bulky power adapter or wall wart? Not a problem - just use one of our handy pigtails and plug away.

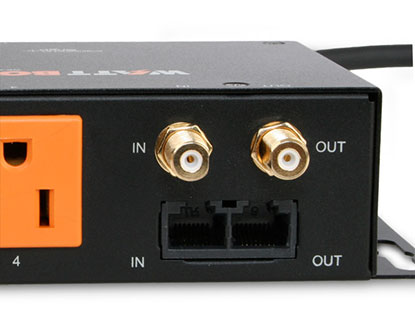

Jacks for RJ11 or RJ45 connections are provided with full protection on all 8 pins for telephone and Ethernet applications. Our 3 GHz coax connections not only protect you against surge, but they deliver premium signal quality with less than 1 dB of attenuation. Pass-through voltage is supported for satellite systems.
Each unit comes with two metal ear brackets to attach inside a VersaBox Pro or VersaMount. The brackets hold the WattBox in place so there's no fear of it dropping through. It also includes a second set of right-angle brackets for mounting on the wall, under a table, or under a podium.
MOVs, or Metal Oxide Varistors, are surge protection components that dissipate excess energy in the form of heat. Under extreme conditions, lower quality MOVs can get so hot they catch on fire! WattBox power conditioners feature ceramic-encased MOVs to protect not only your system but your home as well.
| WB-200VB-CE-6 |
|---|
2 Gold Plated F Connectors |
15A |
12A |
2160 Joules |
53 dB, 1kHz to 1MHz |
48,000A |
500V |
UL 60950-1, UL 1449, UL 498, UL 497A/B, UL 1283 |
7.9" x 2.7" x 6.3" (without brackets) |
14° - 104°F |
4 Ft. with 360° Rotating Flat Plug |
120V, 60Hz |
Thermal Fuse |
Connector Type |
Breaker Switch Rating |
Current Rating |
Energy Dissipation (Joules) |
Outlets |
Peak Impulse Current |
Voltage Protection Rating |
Certifications |
Dimensions (W x H x D) |
Operating Temperature |
Power Cord Length |
Line Voltage |
Fuse Type |
This WattBox® product has a Lifetime Limited Warranty and a 5-Year Network Connectivity Warranty. The warranty's applicable terms and conditions can be found here.
