All of the information you need is at your fingertips with the WattBox 800 Series Faceplate. LED indicators show if your WattBox is connected to the internet, voltage and current readings (individual and global), and whether the unit is properly grounded.

WattBox® 800 Series Faceplate

All of the information you need is at your fingertips with the WattBox 800 Series Faceplate. LED indicators show if your WattBox is connected to the internet, voltage and current readings (individual and global), and whether the unit is properly grounded. Two buttons (B1/B2) give you the option for local reset of each individual PDU or all PDUs attached, and an AC power button allows you to toggle the connected PDUs on or off. Connect up to three Power Distribution Units for control and monitoring and utilize OvrC to view which PDUs are connected to the faceplate. On the front of the faceplate, an individual outlet and two USB charging ports are conveniently accessible for charging tools or as a quick power resource for customers. On the back of the faceplate, two additional USB charging ports are available.

Important Note - WB-800-FP is only compatible with 800 Series IP WattBox Products, but it is not compatible with the WB-800CH1U-IPVM-8.

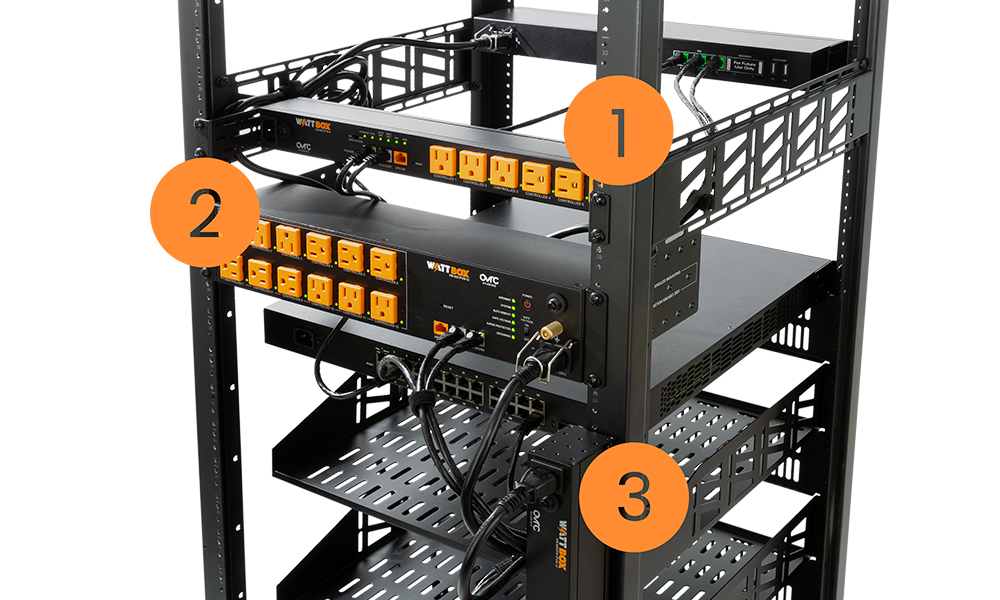

Diagram showing several WattBox Faceplates installed on an IT rack

Connect Up to Three PDUs

The WattBox 800 Series Faceplate brings control to not just one, but up to three WattBox 800 Series PDUs for ultimate control and flexibility. Use the buttons on the faceplate to cycle through individual PDUs and reset locally.

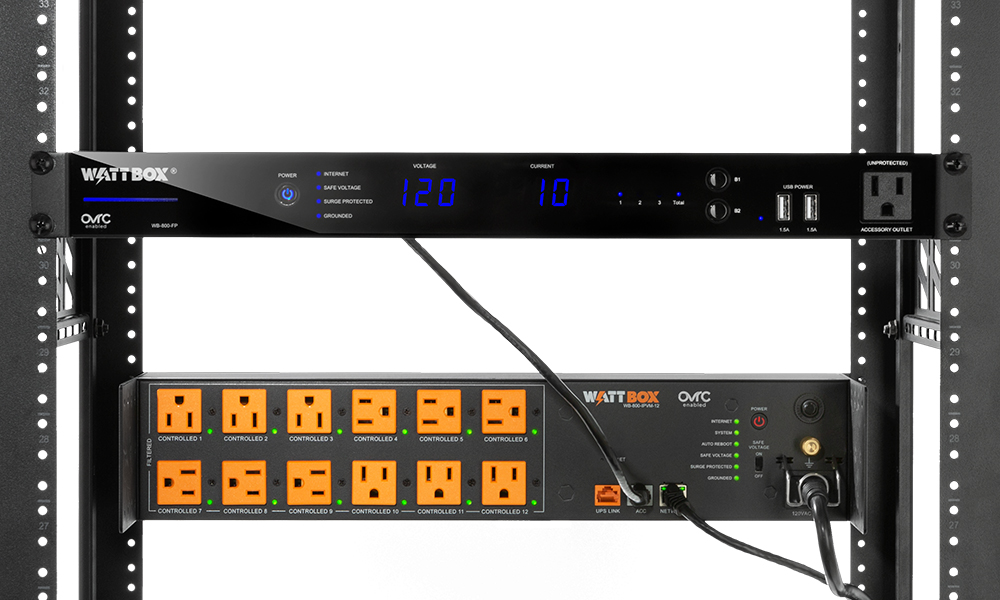

WattBox Faceplate installed on an IT rack

1U Rack Mountable

The WattBox 800 Series Faceplate has a slim 1U rack-mountable form factor allowing it to easily be incorporated into nearly any job.

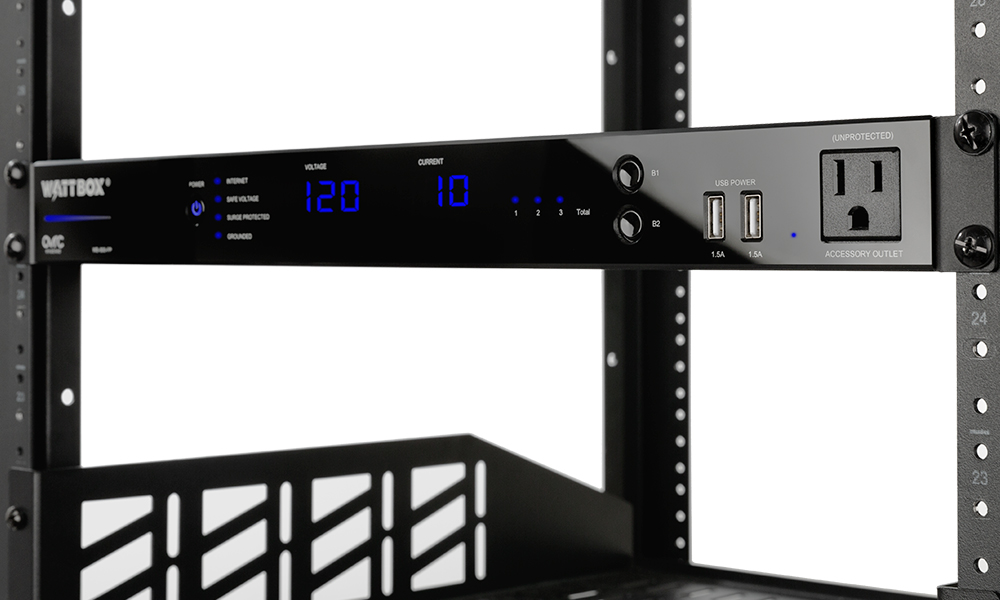

LED indicator on the Wattbox 800 Faceplate

Integrated Faceplate 

LED status indicators on the left side of your WattBox show the status of internet connectivity, safe voltage, surge protection, and if the unit is properly grounded. Additionally, there are LED displays which show AC voltage and current of the entire PDU or the aggregate of all PDUs attached. Two buttons (B1/B2) give you the option for local reset of each individual PDU with one action (pressing and holding B1 and B2 at the same time), and an AC power button allows you to toggle connected PDUs on or off.   

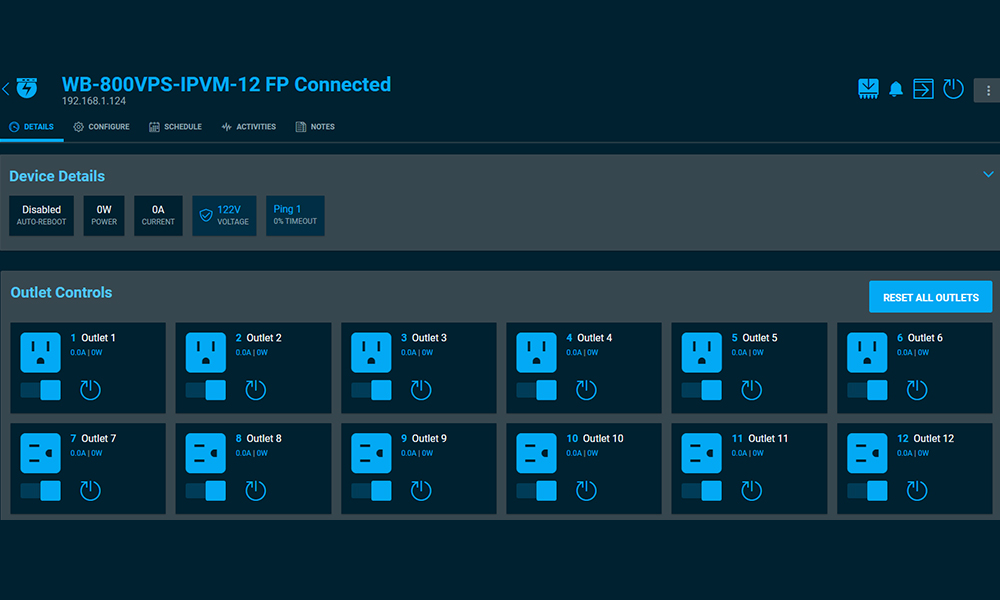

WattBox products being monitered on OvrC app

Ultimate in Troubleshooting & Control 

WattBox is synonymous with individual outlet control; however, the 800-Series goes above and beyond, letting you monitor total PDU wattage, amperage, and voltage monitoring and read-outs in real-time at each PDU for more advanced troubleshooting. With individual PDU metering, you can solve simple issues remotely, saving you time and money.

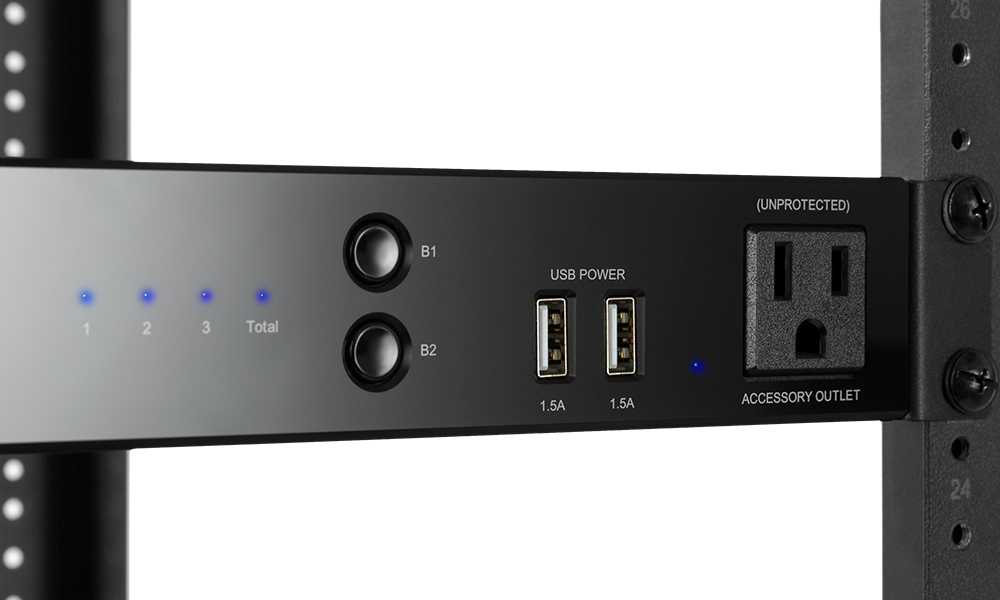

LED indicator on the Wattbox 800 Faceplate

Increased Functionality

On the front of the faceplate, an individual outlet and two USB charging ports are conveniently accessible for charging tools or as a quick power resource for customers. On the back of the faceplate, two additional USB charging ports are available.

Specs
Specifications
WB-800-FP
CE, ISD, UL
17.3" x 1.73" x 3.2"
LED Displays for Voltage and Current
Accessory ports: 2x
6 Ft.
120V AC, 60Hz
4 total: 2x on front, 2x on back
1U

Certifications
Dimensions (W x H x D)
Features
Power Cord Length
Line Voltage
USB Ports
Rack Spacing

Lifetime Limited Warranty
