Description
Description
Perfect for use in nurseries and other indoor residential applications, this high-definition camera’s sensor offers 2MP full 1080p support and a true 16:9 widescreen view – all in a compact form factor. Its innovative mount provides flexibility for installation and includes a handy ball and socket joint that allows you to point the camera in any direction – even straight down. Plus, this flexible mount will install anywhere you need it, on a wall or free standing on a shelf or dresser. Installation is further simplified with Power over Ethernet (PoE) and an IP installer utility that makes it easy to find cameras on the network. Live video streaming to control systems and free apps for iOS® / Android® make the 300-Series Cube a convenient, easy-to-use solution for in-home monitoring – even on the go.
Cube IP Indoor Camera with IR
Perfect for use in nurseries and other indoor residential applications, this high-definition camera’s sensor offers 2MP full 1080p support and a true 16:9 widescreen view – all in a compact form factor. Its innovative mount provides flexibility for installation and includes a handy ball and socket joint that allows you to point the camera in any direction – even straight down. Plus, this flexible mount will install anywhere you need it, on a wall or free standing on a shelf or dresser. Installation is further simplified with Power over Ethernet (PoE) and an IP installer utility that makes it easy to find cameras on the network. Live video streaming to control systems and free apps for iOS® / Android® make the 300-Series Cube a convenient, easy-to-use solution for in-home monitoring – even on the go.
Important Note - Please note that the Android Wirepath mobile app is no longer available on the Google Play store. Please download the mobile application from the support tab.
High Resolution
Quad Stream
IR and Sense-Up
IR
ONVIF Compliant
Dynamic DNS
Smooth video up to 30FPS
2.8mm Fixed Lens
Edge Storage with microSD Card Slot
Foreground/ background contrast
Smartphone & Windows Access
Power over Ethernet
Part of the OvrC Ecosystem
Together with Wirepath, OvrC offers remote IP camera setup and post-install adjustments in a flash. Monitor when devices and networks fall offline, make changes to advanced settings and upgrade firmware whenever and wherever it’s convenient.* Save yourself a truck roll by managing cameras and recorders remotely. Learn more >>
*A firmware update for cameras purchased before May 2016 is now available. Click here for details.
Sense-Up
See in color, in the dark! By automatically slowing the shutter speed, the camera is able to pick up the slightest traces of light.
D-WDR
Provides clearer images and even lighting in applications that are both bright and dark. This is useful in areas with windows and natural light.
Backlight Compensation
Reduces silhouetting so you see foreground subjects clearly when positioned in front of a bright background light source.
True Day/Night
For more accurate, vivid color reproduction during daytime use, an IR Cut filter is automatically moved over the lens to block unwanted IR. At night, the filter is removed to deliver maximum visibility and clear IR illumination.
IR Illumination
An array of IR LEDs are included to assist with nighttime performance. The total LED power is limited due to PoE constraints. It's recommended to use IR for indoor and targeted applications, not as the sole ambient light source in dark environments.

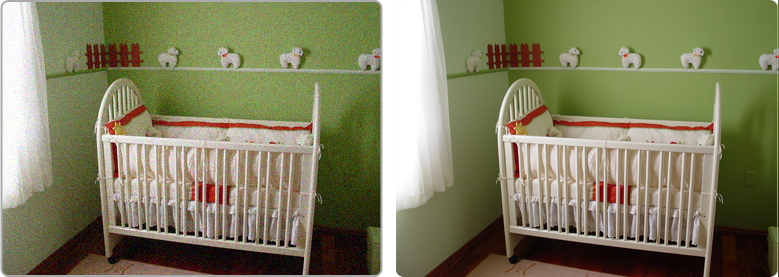

DNR
A powerful digital signal processor (DSP) intelligently scans the image and reduces noise in low-light conditions for a cleaner, crisper image.
Privacy Masking
Hide sensitive or privileged areas by placing rectangular blocks or "masks" over installer-defined areas.
Widescreen Meets High-Definition
Thanks to a premium 2MP CMOS sensor, this camera delivers pristine video with resolutions up to 1920x1080 at a full 30FPS – eight times the pixels of analog models. Unlike many competitive 2MP products, Wirepath™ cameras are true 16:9 widescreen – giving you a wider view of the action and filling your TV or mobile device's screen – no more annoying black bars! Have applications that don't require high definition? No problem, resolutions as low as 176x144 @ 30fps are also supported.
Sound the Alarm
If contact inputs and trigger outputs seem like features only available on an NVR, then you haven't met our IP cameras! Connect a driveway sensor, door contact, external motion or other sensors to trigger emails, recording events and other auxiliary alarms – with or without an NVR.
Power over Ethernet
Imagine how much time you could save by only having to terminate a single cable. With PoE that's exactly what you get! A single Cat5e/6 cable can deliver video, data, audio, and power to/from the camera. No more crimp on beanies, wire nuts or other unsightly connections - just an RJ45 connector and you're done. Retrofit installations have never been easier.

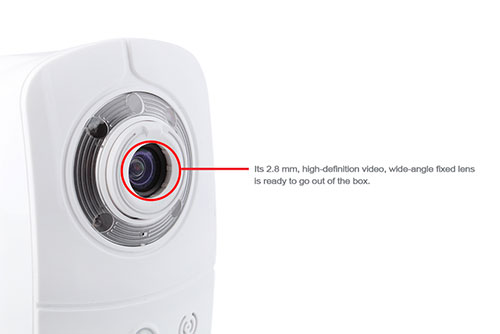

Point and Shoot Fixed Lens
Set, point, shoot… It’s that easy to watch crystal-clear, high-definition video on this 300-Series Cube. Its 2.8 mm, wide-angle fixed lens is ready to go out of the box, so there’s no need to fuss and fiddle with zoom and focus (just don’t forget to plug it in).

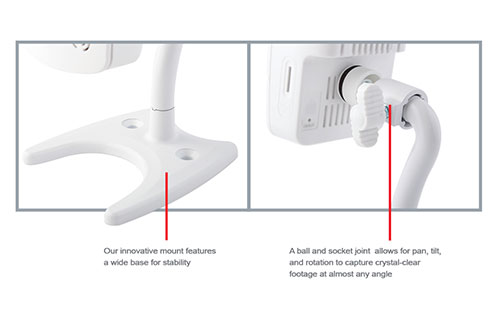

Ultra-Flexible Mounting Options
Our innovative mount features a wide base for stability, a long ergonomic arm so you can point the camera straight down , and included mounting screws for flexible wall, ceiling, or surface installation. A ball and socket joint affixing the camera to the mount allows for pan, tilt, and rotation to capture crystal-clear footage at almost any angle.

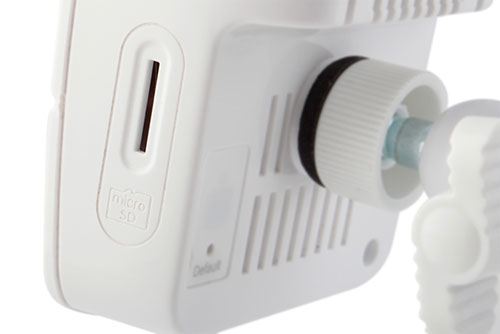

Edge Storage with Optional microSD Card
With optional edge storage, you don't have to worry about lapses in recording. A micro SD card slot makes for fast and easy local recording, and recordings can be viewed through a web browser once the network is restored. You have complete control over when it records and what triggers it.
Dynamic DNS Support
Instead of searching your records for cumbersome IP addresses, Dynamic DNS provides a permanent, easy-to-remember name that never changes – even if the customer's home is assigned a new IP address by the service provider. Our free WirepathDNS service is fast and easy to set up and it provides maximum uptime.
Email Notifications
Sure, you could hover over your camera all day to see if something was amiss - but wouldn't it just be easier to get an email with an attached screenshot? With event-based alerts, you can create custom notifications for motion detection and alarm triggers.
User Access Levels
With the ability to set specific user access levels, you control who sees camera video, and who is allowed to adjust important settings. So you can give the nanny access to see a few specific cameras, but nothing more. And you can provide your tech with the ability to change settings but not view any video – making your customer's privacy considerations a priority.
Specs
Specifications
| WPS-300-CUB-IP-WH |
|---|
10/ 100 Base-T |
1 Digital in and 1 Digital out, DC-jack, 1 Audio out, RJ45 |
CE, FCC, RoHS, ONVIF (v1.01 and v1.02 and v2.2) |
3" x 6" x 3.5" |
32° to 113°F |
Yes - PoE IEEE 802.3af 48V 15W, 3.46W(IR Off) / 4.46W(IR On) |
.32 lb |
Yes |
Yes |
Yes |
0.1 lux @F2.0 (IR off), 0 lux @F2.0 (IR on) |
1/2.7” 2MP CMOS sensor |
Yes |
Yes |
15.4 Ft. |
2.8mm Fixed Lens F2.0 |
Yes, 3 different areas |
Brightness, Contrast, Hue, Saturation, Sharpness, Shutter Speed adjustable, AGC, Sense-Up, D-WDR, Flip, Mirror, Noise reduction, Day&Night adjustable |
Yes, 3 different areas |
Yes |
Motion Detection, IP Ping failure, Network disconnect, Schedule, Digital Input, Tampering |
Yes |
1/5~1/1000 |
Up to 10 |
Email, FTP, Save to micro SD card, Digital Output, SAMBA |
Yes |
No |
Ethernet Ports |
Audio Inputs / Outputs |
Certifications |
Dimensions (W x H x D) |
Operating Temperature |
Power Consumption |
Weight |
Auto Gain Control |
DNR |
Full Screen Monitoring |
Minimum Illumination |
Image Sensor |
Image Snapshot |
Day/Night IR Cut Filter |
IR Range |
Lens |
Motion Detection |
Supported Network Protocols |
Privacy Mask |
Quad Streaming |
Recording Trigger |
Sense-Up (Elec. Shutter) |
Shutter Speed |
Simultaneous Connections |
Triggered Action Desc. |
WDR |
Outdoor Rating |
Support
Manuals and Guides
Sales Resources
Support Documents
Software and Firmware
3-Year Limited Warranty
This Wirepath™ product has a 3-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
