Description
Description
Specially designed for custom integration of whole home audio systems, the "AMP" serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.
Yamaha Multi Room Amp
Specially designed for custom integration of whole home audio systems, the "AMP" serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.
Seamless Integration
Designed with the custom-install space in mind, Yamaha offers custom drivers for Control4 and other leading control systems for most of their product lineup. Plus, SnapAV will soon deliver the deepest third-party OvrC Pro integration to date, with enhanced diagnostic data on Yamaha products. And with Google Assistant and Alexa compatibility, integration has never been easier.

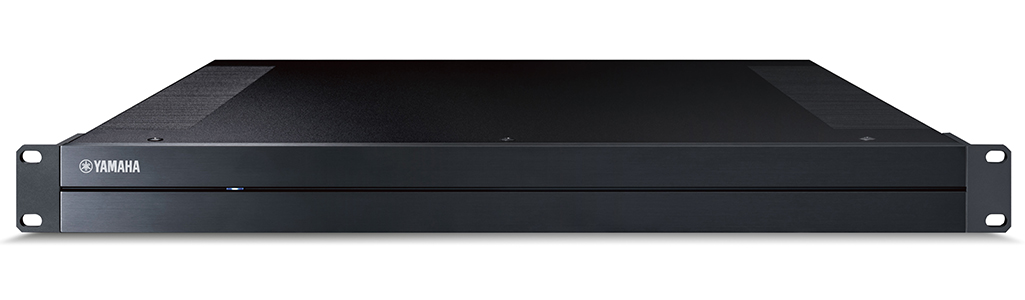

Slim Yet Powerful
The QS packs four rooms of audio streaming and eight channels of audiophile-grade amplification into a remarkably slim, 1U-high enclosure, allowing you to fully-optimize valuable rack real estate.

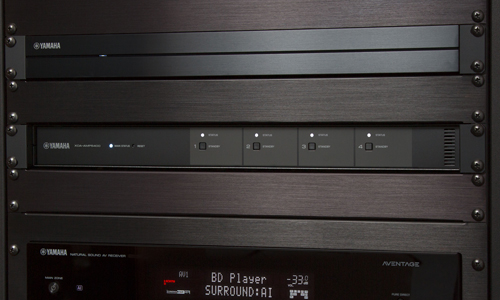

Sonic Soul Mates
The XDA-AMP5400RK – the "AMP" – was conceived as a companion to the Yamaha XDA-QS5400RK as a way to provide additional speaker coverage and/or additional speaker output power in a custom integrated multi-room home audio system. It also pairs nicely with Yamaha AV receivers that offer Zone pre outs.

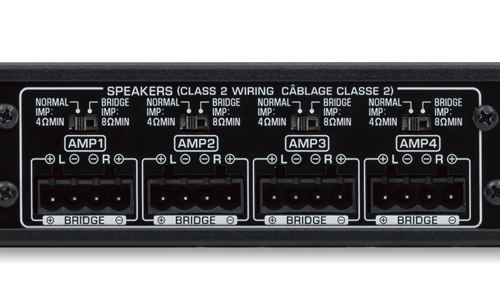

More Power on Demand
Each of the four amplifier zones is also bridgeable, giving you the option to increase power output to select speakers if needed.

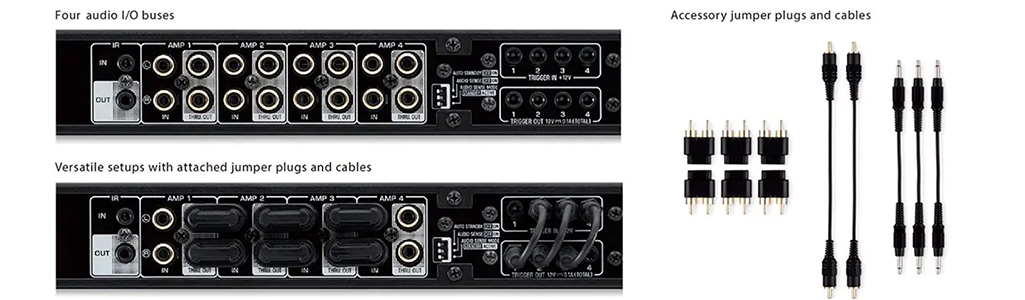

Phenomenal Flexibility
Feed up to four sources from QS pre outs into the AMP – its four audio I/O buses can be patched together to handle a wide array of speaker/zone configurations. The AMP comes with a set of jumper plugs and cables, making it ultra-versatile right out of the box. The audio outs can alternatively be used to connect powered subwoofers or subwoofer amps.

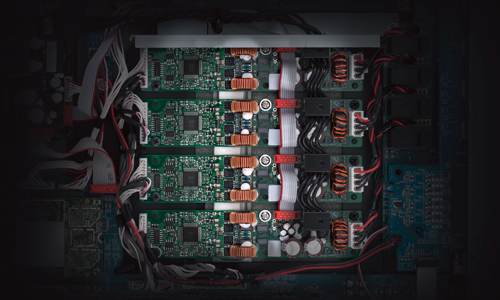

Audiophile-Grade Amplification
No ordinary amp, the QS employs ultra-efficient ICEpower integrated circuits to deliver eight channels of pristine, musically-dynamic digital amplification at 50 watts/channel (8 ohms) with an outstanding 10 Hz to 22 kHz (+0/-3 dB) frequency response and 106 dB signal-to-noise ratio. It is 4 ohm capable at 100 watts/channel and bridgeable to 200 watts/channel (8 ohms).

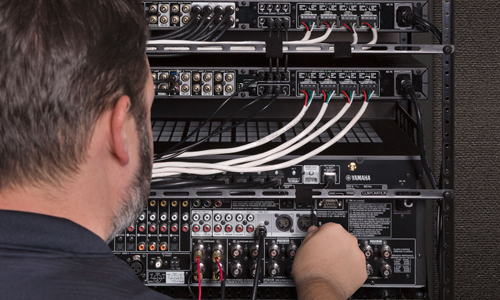

Goodbye Ground Loop Hum
The curse of the custom integrator: ground loop hum, a common and vexing side effect of connecting a bunch of electronics together in a rack. The QS takes care of it with a brilliantly-engineered differential circuit design. Sometimes it’s what you don’t hear that sounds the most amazing.

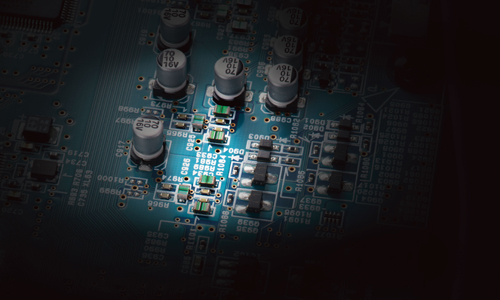

High-Performance under the Hood
The AMP employs a balanced audio circuit design and PML capacitors, which are also used in our flagship AVENTAGE AV separates. The result: greater realism and expressiveness for all your client’s favorite music.

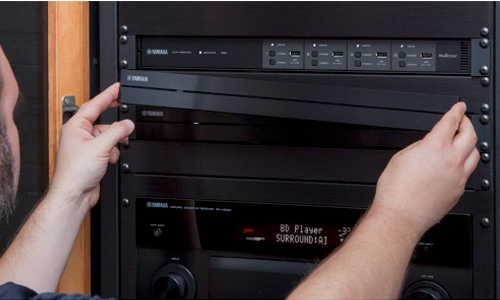

Versatile Installation
Mount it in a rack with the included ears or remove the ears for shelf installations. The included magnetic faceplate discourages tampering and provides the perfect cosmetic finish.

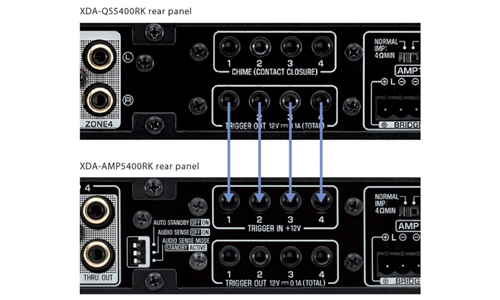

Harmonious Control
When a QS and AMP are used together, simply wire the trigger ports to automatically power on/off the desired amplifier zones – no additional control interface is needed. The AMP also works great as a companion to an AVENTAGE AV receiver. When using the AMP with other sources, audio sensing inputs and an infrared I/O provide additional control flexibility.
Custom-Friendly Connectivity and Control

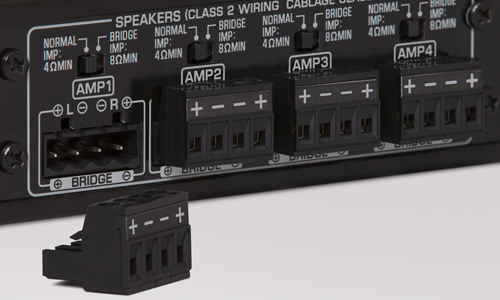

The QS is truly made for custom integration, with Euroblock-style speaker connectors, dual RJ-45 Ethernet ports and a detachable AC cable for smart connectivity, and IP, IR and 12 V Trigger Out jacks for versatile control.
Specs
Specifications
| YA-XDA-AMP5400RKBL |
|---|
0.04% |
1 In / 1 Out |
4 In, 4 out |
17-1/4 in. x 1-3/4 in. x 17-3/8 in. |
RCA x 4, trigger x 4, remote x 1 |
1 |
1 |
Speaker (Euroblock) x 4 (L/R), RCA x 4, trigger x 4, remote x 1 |
2-channel driven, 1 kHz, 0.9% THD, Normal, 8Ω: 50 W
2-channel driven, 1 kHz, 0.9% THD, Bridge, 8Ω: 100 W |
Yes |
13.9 lbs. |
1U |
[Pre Out Net / USB In] 114 dB, [Pre Out Aux In] 108 dB, [SP Out Net / USB In] 106 dB, [SP Out Aux In] 104 dB |
51-100W |
Total Harmonic Distortion (THD) |
Ethernet Ports |
12V Trigger |
Dimensions (W x H x D) |
Inputs |
IR Inputs |
IR Outputs |
Outputs |
Power Rating |
Rack Mountable |
Weight |
Rack Spacing |
Signal to Noise Ratio |
Watts Per Channel |
