Access Networks A370 Unleashed Wi-Fi 7 Indoor Access Point
The Access Networks A370 Unleashed Wi-Fi 7 Indoor Access Point is a dual-band low-profile solution purpose-built for lower-density environments with smaller coverage areas including low-to-medium density businesses and residences. Supporting up to 256 simultaneous connections and offering speeds up to 3.57 Gbps, it keeps both 2.4 GHz and 5 GHz devices performing at their best. A 2.5 Gbps Ethernet uplink eliminates bottlenecks, while a limited lifetime warranty and expert support provide lasting peace of mind for both integrators and end users.
About Access Networks
Access Networks Unleashed Wi-Fi 7 Access Points provide the simplest way to deliver high-performance, enterprise-grade networking with the added benefits of Wi-Fi 7. With a built-in controller and full OvrC support, they’re easy to set up, manage, and maintain. The Access Networks Wi-Fi 7 Access Point portfolio offers the ideal solutions for delivering reliable connectivity across a variety of indoor and outdoor environments, while minimizing the need for on-site visits.
IMPORTANT NOTE: The A370 is a dual band Wi Fi 7 access point (2.4 GHz + 5 GHz) designed for projects that don’t need 6 GHz coverage.
It requires an allocation of 20W PoE+ (20W) power each. Please calculate the deployment accordingly and ensure that the PoE+ switch provides enough power for all access points in the deployment with a 20% power overhead. CAT6A cabling is recommended for proper operation.
Mesh wireless self-healing technology coming soon.

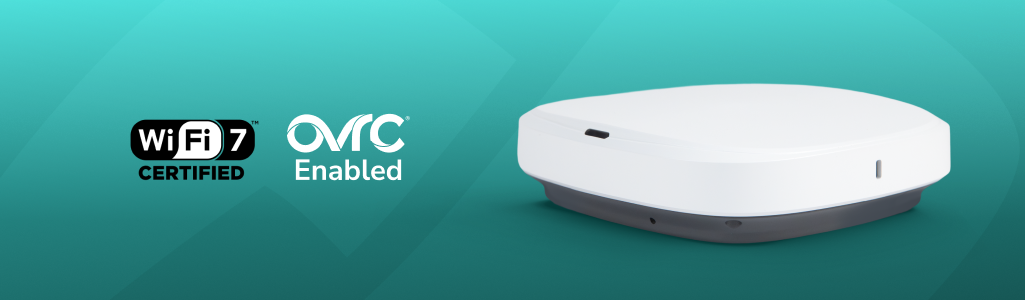

The Access Networks A370 is a Wi-Fi 7 certified access point, delivering the latest generation of wireless performance with four spatial streams (2x2:2 in both 2.4 GHz and 5 GHz bands) for a combined data rate of up to 3.57 Gbps. Advanced features like Multi-Link Operation (MLO) and 4K QAM boost throughput, reduce latency, and improve efficiency for every connected device. Its superior antenna design ensures stronger, more consistent connections, providing better Wi-Fi coverage and minimizing RF interference. Built-in enterprise-grade WPA3 security safeguards data and helps protect every connection.
Dual-Band Wi-Fi 7
The A370 delivers next-generation Wi-Fi 7 performance over 2.4 GHz and 5 GHz that's optimized for smaller spaces.

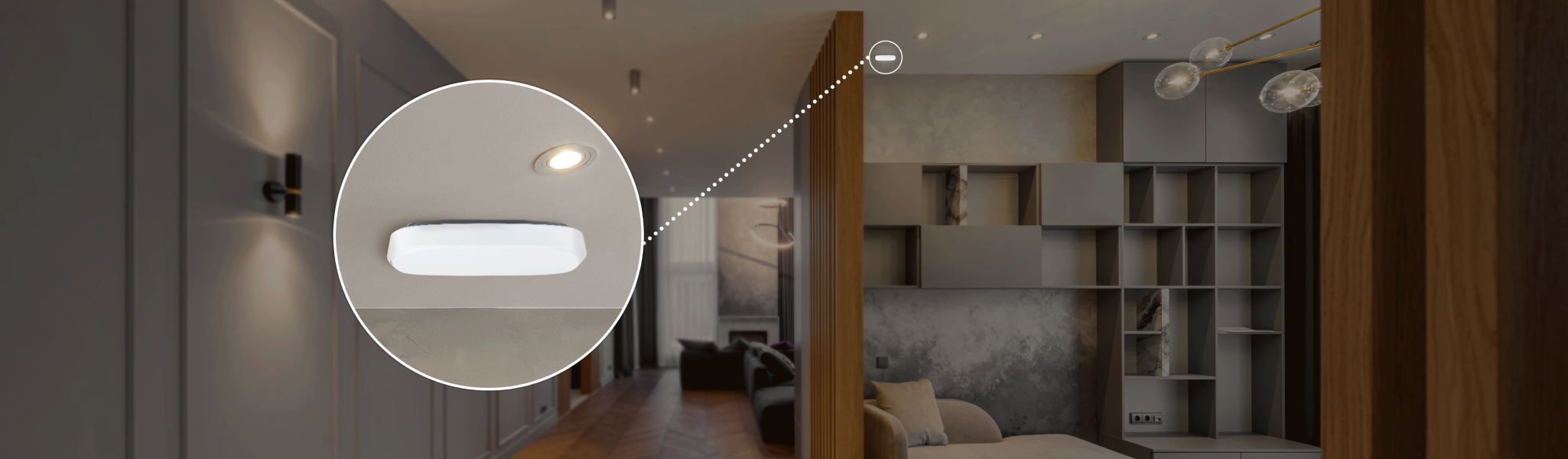

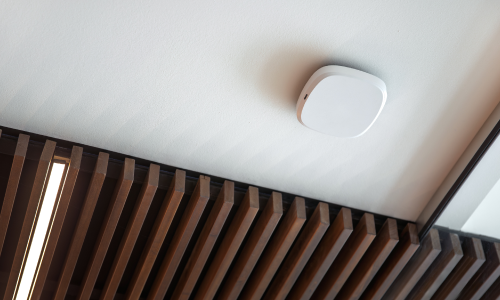

Discreet Design. Powerful Performance.
With its low-profile form factor, the A370 blends into any environment while leveraging patented technologies to optimize performance and minimize interference, just like our top-tier access points, all without sacrificing aesthetics.
Low to Medium Client Density and Performance
The A370 delivers reliable Wi-Fi 7 performance for low- to medium-density spaces, supporting up to 256 simultaneous device connections and using adaptive band and load balancing to ensure airtime fairness for every device.
Optimized for Small Venues
Each dual-band A370 access point delivers an exceptional end‑user experience for light commercial, multi-tenant small offices, network closets, boutique stores, restaurants, cafés, condos, home offices, multi‑dwelling units, hotel rooms and more.

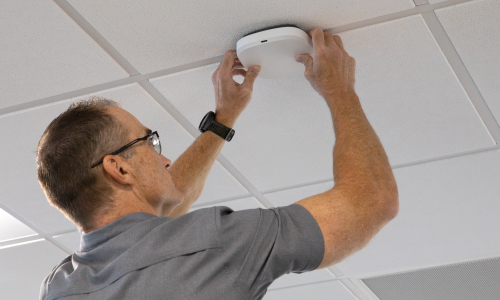

Easy to Install
The A370 deploys quickly and easily through the intuitive OVRC cloud platform. Pre-configure remotely, install onsite, and finalize setup in minutes via mobile device or browser.

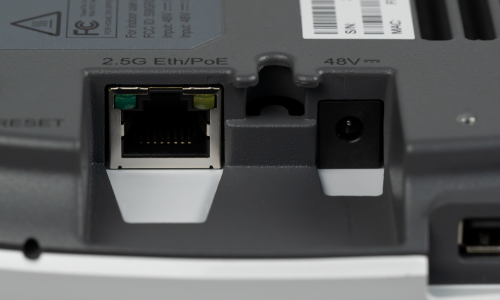

2.5 GbE Eliminates Bottleneck
Optimized multi-gigabit Wi-Fi performance, delivered through a built-in 2.5 GbE port, enables seamless connection to multi-gigabit switches and reduces backhaul limitations for maximum available throughput.
Built-In Wireless Controller
Each A370 unit has a built-in, enterprise-grade WLAN Controller. Once the first access point is online, it becomes the primary Unleashed controller and continuously optimizes the wireless environment for peak performance in every room.

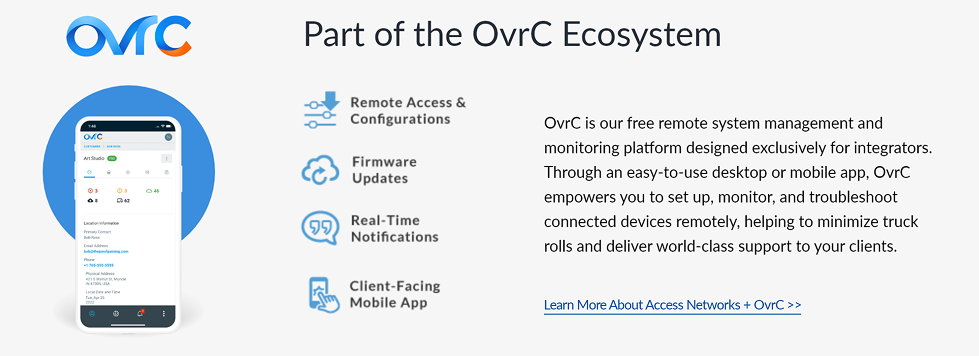

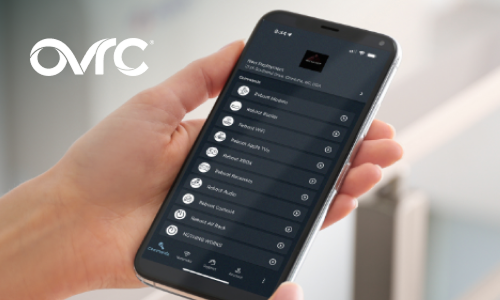

Complete Wi-Fi Management
With Access Networks and OvrC, your customers can easily manage their wireless devices. Easy-to-setup user profiles allow parents and managers to schedule and restrict Wi-Fi access using the OvrC Connect app.
Guest Wi-Fi Services
Give guests secure, high-performance Wi-Fi while keeping their traffic separate from the primary network. Guest Passes can be authenticated via social media or QR code, and the portal can be branded with a logo, colors, and custom messages for commercial spaces.
Specs
Specifications
| ANU-A370-US02 |
|---|
Up to 95% non‑condensing |
0°C to 40°C (32°F to 104°F) |
2.4GHz + 5GHz |
2x2x2 |
Full Functionality: DC Input 48 VDC: 20 W (2.4 GHz radio: 2×2, 20 dBm Tx Power; 5 GHz radio: 2×2, 20 dBm Tx Power; USB enabled); 802.3at (PoE+): 20 W. Limited Functionality: 802.3af (PoE): 12.94 W (2.4 GHz radio: 2×2, 14 dBm T |
1 x 100/1/2.5GbE PoE |
5.9 in x 5.9 in x 1.5 in |
0.86 lbs |
Wi‑Fi 7 |
Operating Humidity |
Operating Temperature |
Operating Frequencies |
Antenna |
Power Features |
Ethernet |
Dimensions (W x H x D) |
Weight |
WiFi |
Limited Lifetime Warranty
This Access Networks product includes a limited lifetime warranty. This warranty is described in greater detail here: Limited Hardware Warranty.
