Episode Extreme Environment In-Ceiling Speaker
Episode Extreme Environment In-Ceiling Speakers are purpose-built for extreme environments. They are expertly designed to thrive in the harshest conditions. Whether enduring extreme temperatures, relentless moisture, salty air, or high winds, these speakers deliver uncompromising performance and exceptional durability.

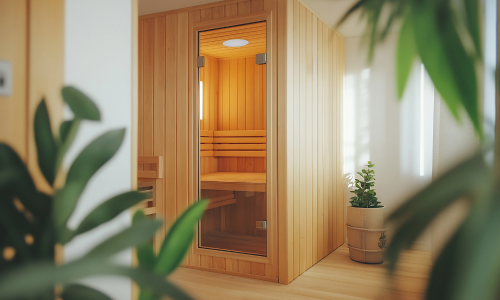

Built with marine-grade components, this speaker resists rust, corrosion, and UV wear to perform flawlessly in the toughest weather. From a screened porch to a coastal home, inside a sauna, or aboard a boat, you can trust Episode speakers to provide reliable sound with unmatched longevity, no matter where life takes you.
Protection from Every Angle
Most speakers only safeguard the front surface, leaving the back vulnerable. Episode Extreme Environment Speakers take durability to the next level with a fully IP67-rated design, ensuring complete protection against dust and water. The factory-installed rear enclosure is completely sealed, while a gasket further protects both the front and back, eliminating water intrusion. This speaker is built to withstand the toughest conditions, delivering unmatched reliability in any environment.
Rust-Free, Clip-in Aluminum Design
Made from rustproof aluminum, our outdoor speaker grille features a secure clip-in design that doesn't rust and holds firmly — even in hurricane-force winds. An optional black grille is available for a sleek, customizable look.

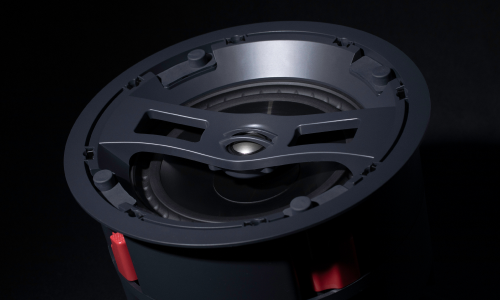

2-Way Design with Polypropylene Woofer and Titanium Dome Tweeter
The 2-way design features a low crossover point, ensuring maximum dispersion for a rich, immersive audio experience. The injection molded cone with rubber surround delivers durable, powerful bass, while the lightweight titanium dome tweeter provides exceptional transient response for crisp, detailed highs. The 6" size includes a 3/4" tweeter, while the 8" size features a 1" tweeter. Unlike metal, our polycarbonate baskets are 100% immune to rust — which makes them perfect for humid, salt-air environments. Together, they create a balanced sound profile with clarity and impact, even in harsh environments.

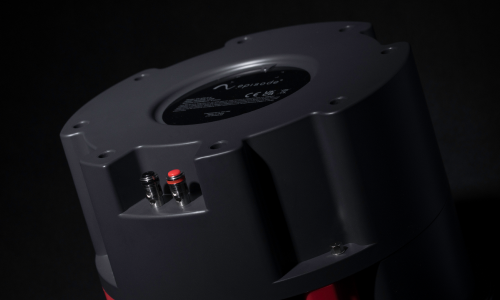

IP67 Waterproof Enclosure
The preinstalled rear enclosure is factory sealed and pressure tested to ensure it’s fully waterproof, while a Gore breather equalizes internal and external pressure to maintain proper cone movement and long-term reliability. Inside, a hydrophobic PCB coating creates a moisture-resistant barrier that protects circuits in the event of condensation.

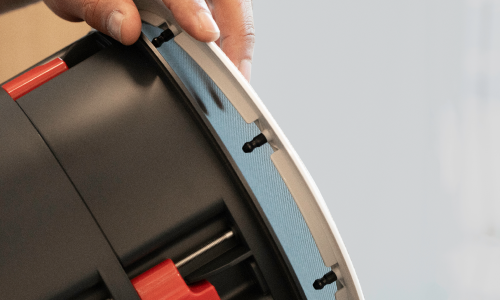

Gasket Protection for Rear Cavity Integrity
The Poron gasket forms a tight seal between the speaker and the mounting surface, blocking water from entering the cavity behind the speaker. This added protection helps safeguard the surrounding structure, wiring, and components, promoting lasting performance in exposed or moisture-prone environments.

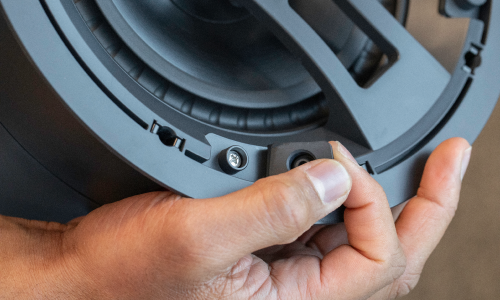

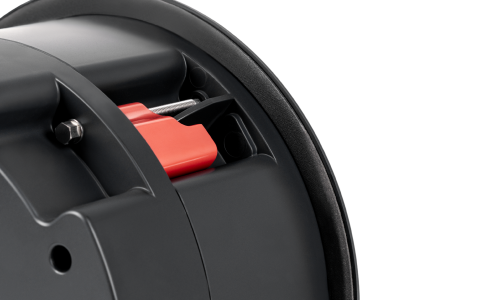

Oversized High-Grip Dogs with Rubber Screw Covers
Episode Extreme Environment Speakers are equipped with oversized dogs that ensure maximum gripping force, even in fluctuating temperatures. The dog mechanism is also positioned outside the speaker enclosure and safeguarded by rubber caps, providing complete protection against water intrusion.

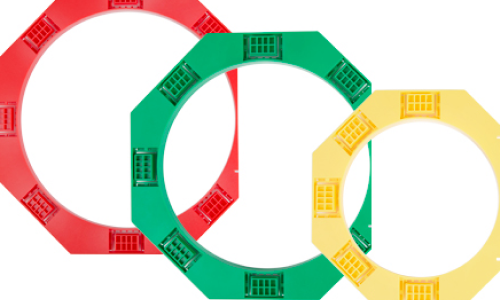

Compatible Cutout and Brackets as Other Episode Speakers
Episode Extreme Environment speakers share the same hole cutout diameter as other Episode speakers, making them compatible with standard Episode pre-construction brackets.
Specs
Specifications
| ES-XTR-6-IC | ES-XTR-8-IC |
|---|---|
Ø9.74*H5.01 inches |
Ø11.1*H7.03 inches |
4.86 lbs |
6.18 lbs |
4.82 inches |
6.83 inches |
black |
black |
Each |
Each |
Without DSP: 105Hz–20kHz With DSP Tuning: 70Hz–20kHz |
Without DSP: 90Hz–20kHz With DSP Tuning: 60Hz–20kHz |
8 Ohm |
8 Ohm |
2.5 kHz |
2.5 kHz |
65W |
65W |
89dB |
90dB |
-30C to +80C / -20F to +175F |
-30C to +80C / -20F to +175F |
3/4" Titanium Dome Tweeter |
1" Titanium Dome Tweeter |
6.5" Injection Molded Polypropylene Cone w/ Rubber Surround |
8" Injection Molded Polypropylene Cone w/ Rubber Surround |
316L Stainless steel spiral binding post, red/black |
316L Stainless steel spiral binding post, red/black |
105Hz-20KHz, 70Hz-20kHz with Episode Amps |
90Hz-20KHz, 60Hz - 20kHz with Episode Amps |
25.5mm |
25.5mm |
130W |
130W |
Dimensions (W x H x D) |
Weight |
Mounting Depth |
Color |
Sold As |
Anechoic Frequency Response |
Nominal Impedance |
Crossover Frequency |
Power RMS |
Sensitivity |
Operating Temperature |
Tweeter |
Woofer |
Connectors |
Frequency Response |
Voice Coil |
Power Peak |
Support
Manuals and Guides
Sales Resources
5-Year Limited Warranty
This Episode® Speaker product has a 5-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
