CoolMasterNet Universal VRF Bridge

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Description
Description

Your connectivity and integration device enabling native communication between your control system and Mini/Multi-Split Heating and Air Conditioning (HVAC) systems

CoolAutomation Universal VRF Bridge

Your connectivity and integration device enabling native communication between your control system and Mini/Multi-Split Heating and Air Conditioning (HVAC) systems

CoolMasterNet allows dealers to integrate the VRF HVAC system through a bi-directional communication bridge between the HVAC and control system keypads, thermostats, touch screens, and mobile app.

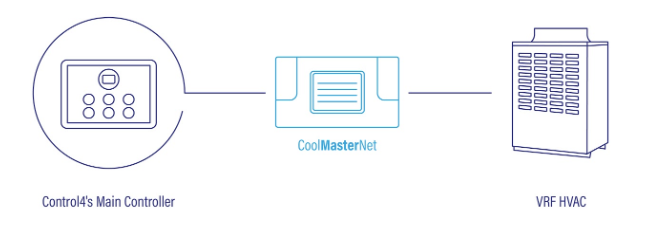

Diagram of the CoolMasterNet connecting the HVAC to Control4 main controller

VRF HVAC systems are designed with a closed communication system, and as such, are extremely challenging to connect to any external automation system. CoolMasterNet enables a VRF HVAC to be accessible and fully controllable through a control system's main controller, thermostats, control panels, and mobile app, providing bi-directional communication with real-time feedback.

CoolMasterNet is connected directly to the internal communication bus on the outdoor VRF unit.

Each CoolMasterNet can be field set to communicate with any VRF manufacturer and comes with simple instructions for configuring. You are welcome to check your HVAC brand and model compatibility on our CoolMasterNet webpage (the list is at the bottom of the page).

If you do not see your equipment on our list, be sure to contact us for a brief consultation with our engineering team.

Features

  • Pre-existing control system drivers for simpler integration
  • SDDP connectivity
  • Support for all VRF systems, including Daikin, Mitsubishi, LG, Samsung, Hitachi, GREE, Fujitsu, Toshiba, Carrier, Midea, Trane and others.
  • Touch screen display for simple device configuration and centralized control of the VRF system
  • Quick and easy initial setup/configuration
Specs
Specifications
CO-COOLMASTERNET
4.32 in x 6.14 in 1.39 in
DIN rail/wall
0% to 96%
Min load: 5V/175mA via mini ISB, 12V/120mA; 24V/70mA
Max Load: 5V/300m via mini USB; 12V/200 mA; 24V/120mA
Direct HVAC Connection: Connections to the 2 wired HVAC Bus
MODBUS (A/B): Rs-485 Communication line
Ethernet: 100Mbps
RS-232: DB9, 9600Bps, ASSCII
USB Host: 12 Mbps
USB Device: 12 Mbps

Dimensions (W x H x D)
Mounting
Operating Humidity
External Power Supply
Communication
USB Description
