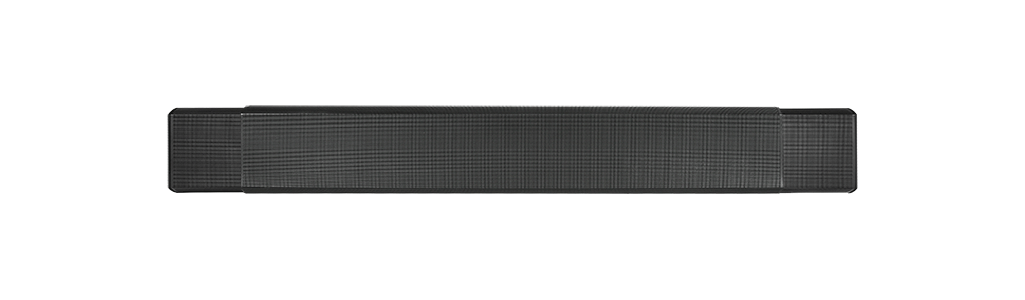

Episode® Expandable Three-Channel Passive Soundbar for TVs 50"-70" (Each)

ES-EXP-SNDBAR-M-BLK-A

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

PDPRewardPointsEspot
Add to cart
Description
Specs
Support
Description
Description

The Episode Expandable Soundbar features a three-piece adjustable design to match televisions 50"-70" in size. The outside channels expand to match TV length, extending the soundstage to the edge of the TV for room-filling sound. It also features a sleek three-piece metal grille and low-profile aluminum cabinet for a smooth install.

Episode® Expandable Three-Channel Passive Soundbar for TVs 50"-70" (Each)

The Episode Expandable Soundbar features a three-piece adjustable design to match televisions 50"-70" in size. The outside channels expand to match TV length, extending the soundstage to the edge of the TV for room-filling sound. It also features a sleek three-piece metal grille and low-profile aluminum cabinet for a smooth install.

Automation displaying the exandability of this Episode Soundbar
An Episode expandanable soundbar installed under a tv

Expandable Sound

When choosing premium audio, users want it to look as good as it sounds, and the Episode Expandable Soundbar delivers. It features three discrete channels that adjust perfectly to the width of the TV, giving your customers a flawless look. It expands from 44" to 62" in length for TV's 50" to 70" in size.

Profile shot of soundbar to show it's 3 inch depth

Low-Profile Cabinet

The extruded aluminum design sits only 3" off the wall, giving the soundbar a sleek look that goes perfectly with flat-panel TVs.

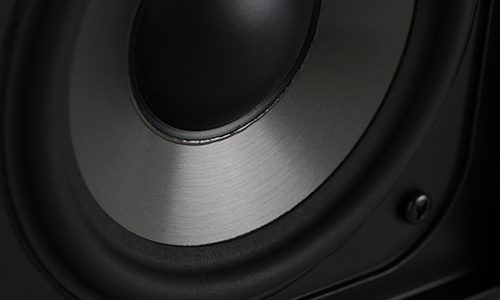

Upclose image of the tweeter inside the expandable soundbar

Unparalleled Audio Quality

Crafted with premium tweeter and woofer components optimized for TV, movies, and music, the Episode Expandable Soundbar uses the science of sound to deliver a fully-immersive experience to any install.

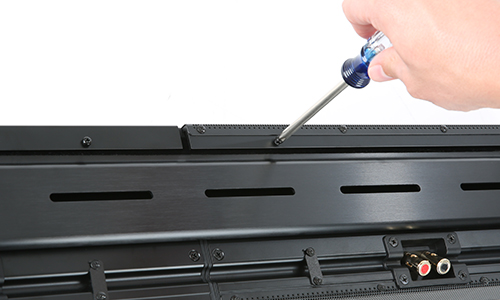

Displaying the easability of installation on Episode soundbar

Easy Mounting and Adjustability

Use the included template to position and secure the bracket for vibration-free listening. Once mounted, all three channels easily slide on. Then add the removable grille for a sleek finish that complements any setup.

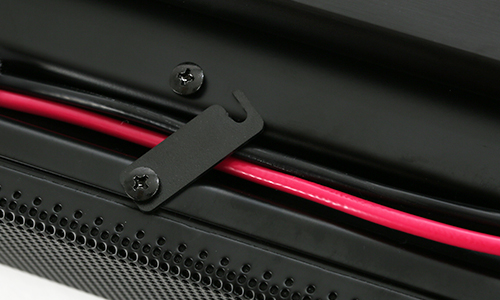

Upclose image of the wire management feature on the Episode Expandable Soundbar

Clean Aesthetics

Yes, it looks as good as it sounds. Aluminum cabinets with metal grilles and built-in wire management make this soundbar the perfect look for all your high-end installs.

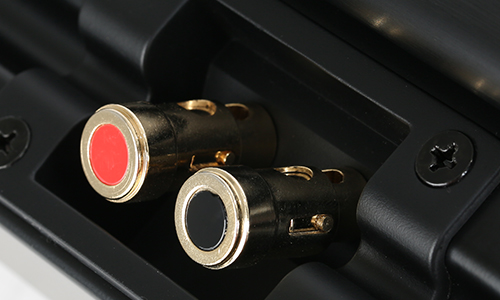

Two spring push terminals and wire retention clips keep your install organized

Easy Wiring

Spring-push terminals and wire channels with wire retention clips on the back of the soundbar add convenience and organization to your install.

The expandable soundbar is displayed without a grill to show the three audio channels

Three-Channel Audio

With independent left, center, and right channels, you get the benefits of a true stage in a discreet form factor. Use the Episode Expandable Soundbar with an AVR, surround sound speakers, and a sub for an immersive theatre system, or pair it with our 3-channel mini-amplifier and sub for detailed TV sound.

Specs
Specifications
ES-EXP-SNDBAR-M-BLK
90Hz - 20kHz
Black
Gold Plated, Push-Down Binding Posts
5.5" x 3"
Each (3 Channels - Left, Center and Right)
17.8 lb
44" up to 62"
3.5kHz
Crossover Type: 12dB / octave woofer and tweeter sections
Painted Steel with Acoustically Transparent Scrim Cloth
8 Ohms per channel
150W
50W
88 dB
19mm, Teterone (weather resistant) dome, ferro fluid cooled
30mm high temp voice coil
2 x 4" polypropylene woofers (1 active, 1 passive per channel), 42.7mm Neodymium magnet with high temp VC wire
Matches Display size: 50" Display to 70" Display

Frequency Response
Color
Connectors
Dimensions (W x H x D)
Sold As
Weight
Width
Crossover Frequency
Speaker Grille
Nominal Impedance
Power Peak
Power RMS
Sensitivity
Tweeter
Voice Coil
Woofer
Compatibility
Support
ProductPageSupportTabEspot

Lifetime Limited Warranty

This Episode® product has a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
