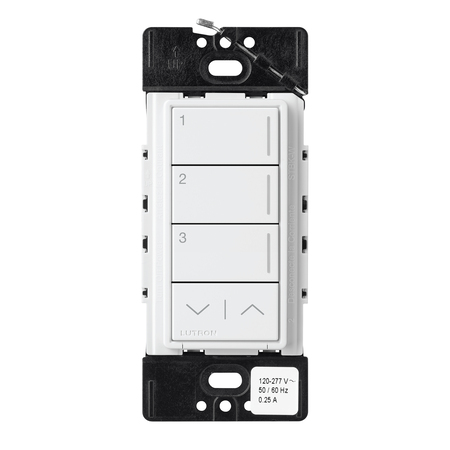

Lutron RadioRA 3 Sunnata RF 3-Button Keypad with Raise/Lower
LUT-RRST-HN3RL-WH
Click to enlarge
Description
Specs
Support
Description
Description
RadioRA 3 Sunnata RF Hybrid Keypads have both dimmer and keypad functionality all in one device – an ideal combination for retrofit applications since they eliminate the need to add an extra gang to the wall box. RadioRA 3 Sunnata RF Hybrid Keypads provide homeowners with a simple and elegant way to operate lights, shades, draperies, motorized screens, and many other devices. Features large, easy-to-use buttons that can be changed in the field, even after installation. LED bars on each button aid in locating the buttons in low-light conditions. Coordinating wall plates sold separately.
Lutron RadioRA 3 Sunnata RF Hybrid Keypad
RadioRA 3 Sunnata RF Hybrid Keypads have both dimmer and keypad functionality all in one device – an ideal combination for retrofit applications since they eliminate the need to add an extra gang to the wall box. RadioRA 3 Sunnata RF Hybrid Keypads provide homeowners with a simple and elegant way to operate lights, shades, draperies, motorized screens, and many other devices. Features large, easy-to-use buttons that can be changed in the field, even after installation. LED bars on each button aid in locating the buttons in low-light conditions. Coordinating wall plates sold separately.
Maximum Rating: 150W LED, 450W Incandescent, Halogen, or ELV, 350VA MLV

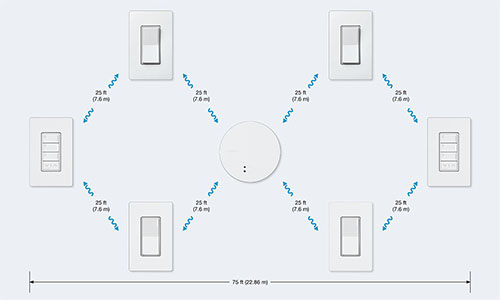

Lutron's new Clear Connect- Type X Radio Frequency; must be located within 75 ft of a RadioRA 3 wireless processor and each Sunnata RF keypad should have at least two other non-battery powered Clear Connect-Type X devices within 25 ft

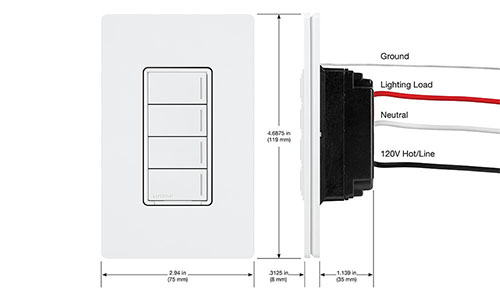

Requires 120–277 V and have wire lead connections; neutral required

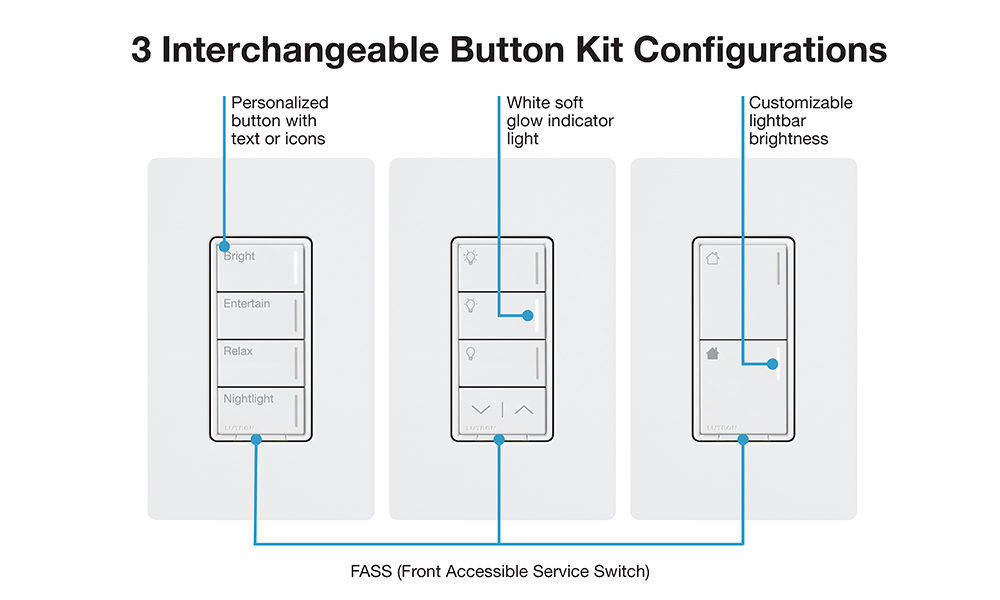

Interchangeable button kits allow the keypad to be changed to a variety of finishes, colors, button configurations, and personalized markings even after installation
Program preset light and shade levels on individual buttons, configure raise and lower buttons, and adjust light bar brightness through Lutron Designer software
White LED bars are on each large, easy-to-operate button to help locate in low light conditions; active buttons light up brighter
Works without Wifi; local device operation will continue to function even if internet connection is lost
Works without Wifi; local device operation will continue to function even if internet connection is lost
Specs
Specifications
| LUT-RRST-HN3RL-WH |
|---|
120 V~ 50 / 60 Hz |
Dimmer/Switch: 0.5 W Test conditions: Load is off and locator light is enabled. Companion Dimmer/Switch: 0.2 W Test conditions: Load is off. |
cULus, NOM, FCC, IC |
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only. |
Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2.5 in (63.5 mm) deep minimum. |
2.94" x 4.69" x 1.69" |
Power |
Power Consumption |
Regulatory |
Environmental |
Mounting |
Dimensions (W x H x D) |
Lutron Limited Warranty
Information on the warranty coverage for this item is found on the manufacturer’s website. Snap One may assist you with a return in accordance with our Return Merchandise Authorization process found here, in so far as the process is in accordance with the manufacturer’s warranty. Specific warranty terms and details from the manufacturer are below.
