The Atlona AT-HDR-SW-52ED is a 5×2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five (5) HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to the AT-HDR-EX-100CEA-RX receiver (available separately).
The Atlona AT-HDR-SW-52ED is a 5×2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five (5) HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to the AT-HDR-EX-100CEA-RX receiver (available separately). The HDR-SW-52ED is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It is ideal for the latest as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management features, automatic input switching, and automatic display control. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the outputs when connected to an HD display. The HDR-SW-52ED can de-embed audio from an HDMI input, or return audio from the HDR-EX-100CEA-RX receiver, to S/PDIF or balanced analog audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.
The HDR-SW-52ED is part of the HDR-SW Series that also includes the HDR-SW-51 five-input HDMI switcher and HDR-SW-52 5×2 HDMI matrix switcher.

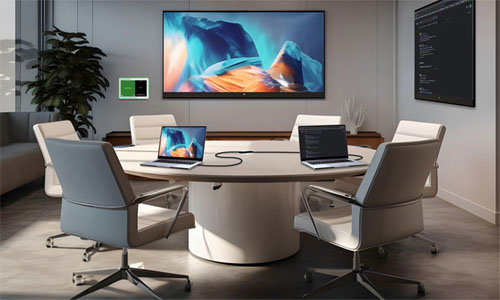

The HDR-SW-52ED provides control to a display through IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDR-SW-52ED can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDR-SW-52ED forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDR-SW-52ED display control capability can also be triggered by an external control system.
Automatic display control is available when the HDBaseT and HDMI outputs are mirrored.
* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.
The HDR-SW-52ED can automatically select an input source based on detection of the 5-volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort/Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5-volt “high” state but may not be delivering active video.
Auto-switching is available when the HDBaseT and HDMI outputs are mirrored.
Many new meeting room installations include displays along the front and side walls. With matrixed HDMI and HDBaseT outputs, the HDR-SW-52ED is great for this scenario.

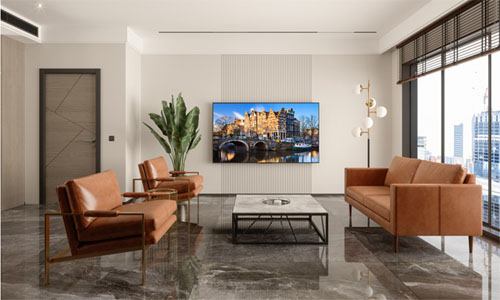

Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for a high, pristine image quality.
This video offers a comprehensive introduction to the HDR-SW Series of HDMI switchers and matrix switchers, including the AT-HDR-SW-52ED.
| AT-HDR-SW-52ED |
|---|
20 Hz to 20 kHz, ± 0.5 dB |
2.2 |
LPCM 2.0, LPCM 5.1,LPCM 7.1 Dolby® Digital, Dolby Digital Plus™ ,Dolby TrueHD, Dolby Atmos® DTS® Digital Surround™, DTS-HD Master Audio™,DTS:X® |
HDMI IN/OUT @4K/UHD - 15 Feet (5 meters) HDMI IN/OUT @ 1080p - 30 Feet (10 meters) CAT5e @4K/UHD - 295 Feet ( 90 meters) CAT5e @ 1080p - 330 feet ( 100 meters) CAT6/6a/7 @ 4K/UHD - 330 feet ( 100 meters) CAT6/6a/7 @ 1080p: 330 |
Device: CE, RoHS, FCC Power Supply: CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC |
Unit: 8.19"x 1.34" x 4.41"(208 x 34 x 112) |
20% to 90%, non-condensing |
+32 to +122 |
22.4 W 37.4 W (with PoE) |
1 x 3-pin captive screw Use: Unit and external device control and configuration Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 Data Flow: Bidirectional |
-4 to +140 |
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
Up to 24 bits |
YUV, RGB |
4:4:4, 4:2:2, 4:2:0 |
8-bit, 10-bit, 12-bit |
100 - 240 V AC, 50/60 Hz Output: 48 V / 0.83 A DC |
Port: 1 x RJ45 Standards and Protocols: HTTP, Telnet Speeds: 10/100 Mbps Addressing: DHCP, Static – selectable through built-in web server and Telnet commands |
1U |
Frequency Response |
HDCP Compliance |
Supported Formats |
Transmission Distance |
Certifications |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
RS-232 Ports |
Storage Temperature |
Supported Sample Rates |
Bit Rate |
Colorspace |
Chroma Subsampling |
Color Depth |
External Power Supply |
Ethernet |
Rack Spacing |
