Triad 10" InWall Passive Subwoofer (ea.) - READY TO SHIP

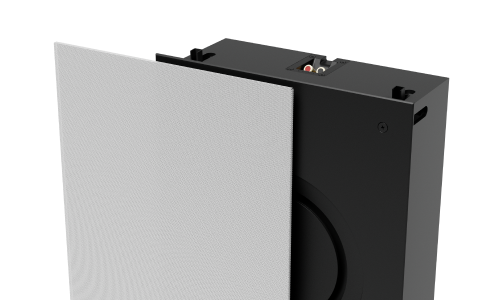

Deliver deep, resonant bass with Triad 10" InWall Passive Subwoofers. These subwoofers deliver robust, controlled low frequencies to enhance any media experience. Built with custom-designed in-house drivers and sealed, braced enclosures, these subs ensure a high output with minimal distortion for crisp, immersive audio. Each unit is handcrafted to deliver premium sound quality and are ready-to-ship subwoofers that come in a pre-selected black satin finish for quick delivery. The Triad InWall Passive Subwoofers were designed in tandem with our Triad Subwoofer RackAmps to deliver maximum power while maintaining efficiency.
Important Note - This is a Ready-to-Ship (RTS) model, pre-built for immediate fulfillment and available without customization. For custom grille or cabinet color options, please refer to the non-RTS version of this product. Additionally, if the RTS version is out of stock, the non-RTS version remains available for order and may be delivered sooner than the next RTS inventory replenishment.
Triad Passive Subwoofers are compatible with the TS-SUBAMP700 and TS-SUBAMP300 as well as other amplifiers with DSP capabilities. They are NOT compatible with the Triad 2300-2 Amplifier. You can find a complete list of Triad subwoofer and amplifier compatibilities HERE
Triad Passive Subwoofers are compatible with the TS-SUBAMP700 and TS-SUBAMP300 as well as other amplifiers with DSP capabilities. They are NOT compatible with the Triad 2300-2 Amplifier. You can find a complete list of Triad subwoofer and amplifier compatibilities HERE
High Output Aluminum Cone Driver
The Triad Passive Subwoofer's aluminum cone offers superior rigidity, reducing distortion and delivering more accurate bass. Its lightweight design offers faster response and improved transient performance, along with excellent heat dissipation to prevent overheating. Additionally, its durability makes it resistant to environmental factors such as moisture and temperature fluctuations, ensuring long-lasting, consistent performance.
Flexible and Uncomplicated Installation Method

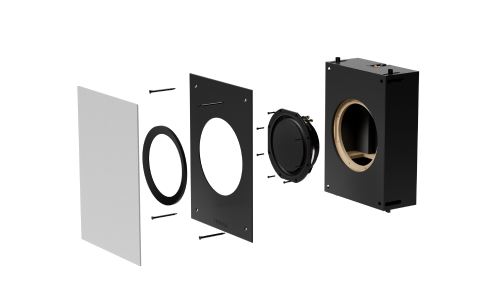

Make your installation easier and safer with the built-in, patent-pending spring dog system, which holds the subwoofer in a wall, freeing up your hands to screw in and install the subwoofer without worry. The spring dog can also be flipped to 90 degrees to help avoid a stud or joist, allowing you to secure the subwoofer regardless of orientation.
Ready to Ship. Ready to Perform.
When time is critical and customization isn't required, Triad RTS models deliver. Pre-built at our Portland manufacturing facility and stocked at ADI | Snap One distribution centers worldwide, these premium speakers are always "ready to ship" — dramatically reducing lead times so you can move your projects forward faster.
Resonance-Free Solid MDF Cabinet
Fully engineered, premium MDF enclosures with internal bracing components are rigid and precision-crafted to break up acoustic standing waves, delivering clearer, more accurate sound. Triad speakers are built to order on-site in our Portland, OR, manufacturing facility by a team of passionate craftspeople and audio experts for custom, high-quality construction.
Match Any Luxury Look
Deliver astonishing audio without compromising aesthetics. With custom, removable magnetic grilles, these subwoofers seamlessly match the surrounding décor, offering the perfect look and sound for your install’s needs, with custom colors available with or without bevels.
Flexible Setup Options
Seamlessly pair with Triad Subwoofer Rackmount Amplifiers to configure the subwoofer from the palm of your hand with the Tune-It app (Coming Soon). You can configure it when the amplifier is on the network using the Web UI, or, if it's not connected to the internet, via a direct PC-to-amp connection.
Specs
Specifications
| TS-IW-PAS10-4-RTS | TS-IW-PAS10-8-RTS |
|---|---|
27-300 Hz |
29-300 Hz |
Spring Terminals |
Spring Terminals |
14 3/4" x 20 1/4" x 5 15/16" |
14 3/4" x 20 1/4" x 5 15/16" |
Each |
Each |
26.5lbs |
26.5lbs |
600 W |
600 W |
300 W |
300 W |
88 dB |
86 dB |
50mm |
50mm |
Ferrite |
Ferrite |
4Ω |
8Ω |
Frequency Response |
Connectors |
Dimensions (W x H x D) |
Sold As |
Weight |
Power Peak |
Power RMS |
Sensitivity |
Voice Coil |
Woofer Type |
Nominal Impedance |
Support
Manuals and Guides
Support Documents
Triad Limited Warranty Term
This Limited Warranty runs for a period of ten (10) years for indoor speakers, three (3) years for Triad powered subwoofers, subwoofer amplifiers and outdoor speakers, five (5) years for all Triad PAMP V2 Amplifiers and two (2) years for all other Triad electronics, provided that Triad Distributed Audio Series 1, Series 2, or Series 3 branded speakers will have a limited lifetime warranty, except for the grill, which is warranted for five (5) years. The terms of our limited warranties can be found here.
