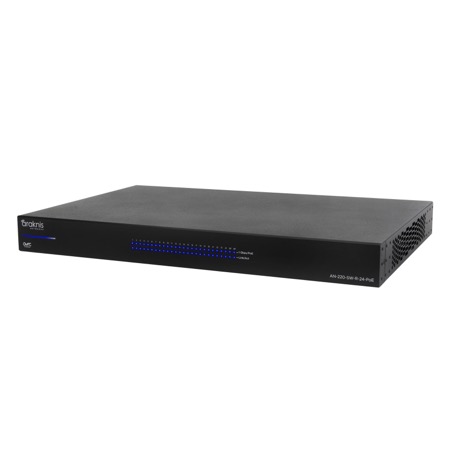

For installs that require PoE on a budget, opt for the Araknis 220 Series switch. With it, you get a sizable power budget and full PoE+ capability on all ports, up to 30W. 1Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensure a quick and easy install. As with all Araknis switches, you have remote management capability via OvrC®. When it comes to operation, this switch has it all, including plug and play capability, multiple mounting options, and a sleek 1U design. See how the 24-port, 16-port, and 8-port models compare to the competition.
For installs that require PoE on a budget, opt for the Araknis 220 Series switch. With it, you get a sizable power budget and full PoE+ capability on all ports, up to 30W. 1Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensure a quick and easy install. As with all Araknis switches, you have remote management capability via OvrC®. When it comes to operation, this switch has it all, including plug and play capability, multiple mounting options, and a sleek 1U design. See how the 24-port, 16-port, and 8-port models compare to the competition.
With a new design and greater enhanced memory than found in previous generations, the Araknis 220 switch offers additional control via OvrC. With enhanced memory, the switch will automatically identify what device is connected to which port – and is future-ready for additional OvrC functionality as it develops!
“Fully managed” means full control of the network. This switch provides a full Layer 2 managed solution with functionality to handle the most complex and robust installs.
Use this switch’s SFP ports to provide RJ45 uplinks to other devices, as well as fiber uplinks to extend the network over long distances while getting a stronger signal. Featuring a dedicated fabric, they don’t share a backplane with any other ports on the switch, which means you get a full 1Gbps and don’t have to sacrifice a dedicated PoE port to use them (no combo ports here!)
A clear, concise GUI with simple VLAN and Link Aggregation setup makes install work a breeze. The improved GUI provides more information, performance data, and insight into switch performance including data transfer and power draw.
Stop spending time on network configuration. Simply plug this switch in, and you’re ready to go. It’s as easy as that.
Both stylish and informative, these blue LED lights indicate power status, port speed (10/100 Mbps to 1 Gbps), and link status. Plus, a redesigned faceplate is constructed with industrial materials, beveled edges, and a glossy finish, making for a clean design you’ll love to show off. With LED indicators on the rear RJ45 ports, you can easily monitor each port's status.
Mounting has never been easier. With its 1U design and available accessories, it easily mounts in a rack, on a wall, or anywhere in between. Included rack ears make for a sleek, left-justified design, while optional center-mount rack ears offer a more traditional look. (To order center-justified rack ears, visit the corresponding product page.)
When you have a job that needs partial PoE, this switch has you covered. All ports have full PoE+ capability up to 30W with a more economical power budget, giving you an efficient switch at a modest price.
With a powerful 1Gbps throughput on all ports simultaneously, this switch can support the backbone of an install or simply act as a desktop add.
Now it’s easier than ever to handle the heat. A smarter design features a honeycomb venting solution and temperature sensor that drives the speed of the fans, allowing for efficient, discreet temperature control. For a completely silent solution, opt for the 8-port switch, which incorporates a fanless design.
| AN-220-SW-R-24-POE | AN-220-SW-R-16-POE | AN-220-SW-R-8-POE |
|---|---|---|
1U |
1U |
1U |
24 |
16 |
8 |
2 |
2 |
2 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
24 |
16 |
8 |
16MB |
16MB |
16MB |
128MB |
128MB |
128MB |
512KB |
512KB |
512KB |
8K |
8K |
8K |
52Gbps |
36Gbps |
20Gbps |
38.7Mpps |
26.8Mpps |
14.8Mpps |
802.3af/at Auto PD Classification Max Power Output per Port: 30W Max Simultaneous Power per Port: 8W |
802.3af/at Auto PD Classification Max Power Output per Port: 30W Max Simultaneous Power per Port: 8W |
802.3af/at Auto PD Classification Max Power Output per Port: 30W Max Simultaneous Power per Port: 8W |
190W |
130W |
65W |
Enable/Disable per port Priority Setting per port Overloading Protection per port PoE/1Gbps LED Toggle Setting PoE Power Withdraw Reading per Port Power level setting per port |
Enable/Disable per port Priority Setting per port Overloading Protection per port PoE/1Gbps LED Toggle Setting PoE Power Withdraw Reading per Port Power level setting per port |
Enable/Disable per port Priority Setting per port Overloading Protection per port PoE/1Gbps LED Toggle Setting PoE Power Withdraw Reading per Port Power level setting per port |
Head-of-line blocking (HOL) Energy Efficient Ethernet (IEEE 802.3az) |
Head-of-line blocking (HOL) Energy Efficient Ethernet (IEEE 802.3az) |
Head-of-line blocking (HOL) Energy Efficient Ethernet (IEEE 802.3az) |
802.3x, Back pressure |
802.3x, Back pressure |
802.3x, Back pressure |
Store-and-forward |
Store-and-forward |
Store-and-forward |
802.1D (STP) 802.1w (RSTP) 802.1s (MSTP) |
802.1D (STP) 802.1w (RSTP) 802.1s (MSTP) |
802.1D (STP) 802.1w (RSTP) 802.1s (MSTP) |
802.1Q VLAN Group Port-based VLANs QinQ Protocol-based VLANs Voice VLAN |
802.1Q VLAN Group Port-based VLANs QinQ Protocol-based VLANs Voice VLAN |
802.1Q VLAN Group Port-based VLANs QinQ Protocol-based VLANs Voice VLAN |
Static, 802.3ad LACP Max Ports per group: 8 Max group: 8 |
Static, 802.3ad LACP Max Ports per group: 8 Max group: 8 |
Static, 802.3ad LACP Max Ports per group: 8 Max group: 8 |
IGMP Snooping v1/v2/v3; MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave |
IGMP Snooping v1/v2/v3; MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave |
IGMP Snooping v1/v2/v3; MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave |
Broadcast/Unknown Multi-cast/Unknown Unicast |
Broadcast/Unknown Multi-cast/Unknown Unicast |
Broadcast/Unknown Multi-cast/Unknown Unicast |
9k |
9k |
9k |
Priority Queues: 8 queues per port Rate Limiting - Ingress: 1 Kbps/1 pps Rate Limiting - Egress: 1 Kbps/1 pps Scheduling: WRR, Strict Priority CoS: 802.1p, IP ToS Precendence, IP DSCP DiffServ (RFC2474) |
Priority Queues: 8 queues per port Rate Limiting - Ingress: 1 Kbps/1 pps Rate Limiting - Egress: 1 Kbps/1 pps Scheduling: WRR, Strict Priority CoS: 802.1p, IP ToS Precendence, IP DSCP DiffServ (RFC2474) |
Priority Queues: 8 queues per port Rate Limiting - Ingress: 1 Kbps/1 pps Rate Limiting - Egress: 1 Kbps/1 pps Scheduling: WRR, Strict Priority CoS: 802.1p, IP ToS Precendence, IP DSCP DiffServ (RFC2474) |
Port Security (MAC-based) 802.1x-PNAC (Port-based) IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter |
Port Security (MAC-based) 802.1x-PNAC (Port-based) IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter |
Port Security (MAC-based) 802.1x-PNAC (Port-based) IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter |
CLI, Web, Telnet, Cloud-based Managed via OvrC |
CLI, Web, Telnet, Cloud-based Managed via OvrC |
CLI, Web, Telnet, Cloud-based Managed via OvrC |
SNMP/Web/Telnet |
SNMP/Web/Telnet |
SNMP/Web/Telnet |
v1,2c,v3 |
v1,2c,v3 |
v1,2c,v3 |
Client |
Client |
Client |
local flash remote server |
local flash remote server |
local flash remote server |
FW Upgrade: TFTP, HTTP Port Mirroring: One to One, Many to One sFlow SNTP Remote Ping LLDP (IEEE802.1ab) Cable Diagnostics UPnP Client RMON (1,2,3 and 9 groups) Dual FW Image |
FW Uprade: TFTP, HTTP Port Mirroring: One to One, Many to One sFlow SNTP Remote Ping LLDP (IEEE802.1ab) Cable Diagnostics UPnP Client RMON (1,2,3 and 9 groups) Dual FW Image |
FW Upgrade: TFTP, HTTP Port Mirroring: One to One, Many to One sFlow SNTP Remote Ping LLDP (IEEE802.1ab) Cable Diagnostics UPnP Client RMON (1,2,3 and 9 groups) Dual FW Image |
17.32" x 1.73" x 10.23" |
17.32" x 1.73" x 10.23" |
12.99" x 1.73" x 9.05" |
100-240V AC, 50/60 Hz |
100-240V AC, 50/60 Hz |
100-240V AC, 50/60 Hz |
Max: 235.65W Device: 27.13W BTU/h (max): 24.26 |
Max: 173.90W Device: 18.12W BTU/h (max): 50.95 |
Max: 82.81W Device: 11.20W BTU/h (max): 69.04 |
32°F-122°F |
32°F-122°F |
32°F-122°F |
10-90% |
10-90% |
10-90% |
7.7 lb |
7.4 lb |
5.1 lb |
30.7 dBA (< 24°C @ 25%) 36 dBA (25-29°C @ 50%) 41.2 dBA (30-34°C @ 75%) 45 dBA (≥ 35°C @ 100%) |
32.9 dBA (< 24°C @ 25%) 37 dBA (25-29°C @ 50%) 39.4 dBA (30-34°C @ 75%) 44.9 dBA (≥ 35°C @ 100%) |
Has fanless design |
Rack Spacing |
RJ-45 1000BASE-T Ports |
SFP Uplink 1000BASE-X Ports |
RJ45 Auto Negotiation |
RJ45 Auto Sensing |
Auto MDI/MDI-X |
POE Ports |
Flash Memory |
SDRAM Memory |
Packet Buffer |
MAC Table Size |
Switching Capacity |
Forwarding Rate |
PoE Features |
PoE Power Budget |
Power Features |
L2 Features |
Flow Control |
Forwarding Mode |
Spanning Tree |
VLAN Features |
Link Aggregation Features |
Multicast Features |
Storm Control |
Jumbo Frame Support |
QoS Features |
Security Features |
Management Protocols |
Management Access Filtering |
SNMP |
DHCP |
Event Log |
Management Features |
Dimensions (W x H x D) |
Line Voltage |
Power Consumption |
Operating Temperature |
Operating Humidity |
Weight |
Fan Noise |
Araknis Networks® products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
