Luma Surveillanceā„¢ 500 Series DVR

Channels

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

With HD analog support, up to 2TB of pre-installed internal storage, and native live streaming to different control systemsā€™ user interfaces, itā€™s easy to check on what matters.

Luma Surveillance™ 500 Series DVR

With HD analog support, up to 2TB of pre-installed internal storage, and native live streaming to different control systemsā€™ user interfaces, itā€™s easy to check on what matters.

Important Notice - Starting from firmware version V3.0.4 build 170324, Luma recorders will not come programmed with a default password. This change is due to the security challenges faced when the password is left at its default. You must now create a new password during set up.

HD Analog

This DVR features support for ultra-sharp resolutions up to 1080p thanks to HD-TVI technology. Youā€™ve never seen analog like this. Get 1080p when you combine our new Luma™ Analog Cameras.

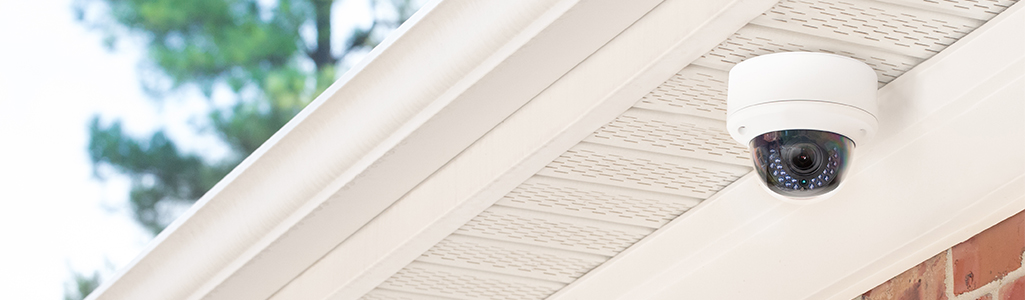

Camera Compatibility

Good news: these DVRs are designed to work with our new series of Luma analog cameras as well as our Wirepath cameras. Luma recorders also support up to 1080p thanks to HD-TVI technology. Theyā€™re even backwards compatible with all traditional analog cameras up to 960H.

Intuitive User Interface

End users and installers alike will love our sleek user interface that features controls that theyā€™re used to seeing. Rewind and fast forward ā€“ or jump backward or forward 15 seconds, pause, take a snapshot, playback, and zoom are all easily controlled with a tap or a swipe.

Dedicated App

iOS or Android, Luma has you covered. Our Luma app is built using the same intuitive user interface design, built for mobile devices so you can check on what matters, providing peace of mind ā€“ anytime, anywhere.

Control System Integration

With our control partners, weā€™ve created IR/RS232/IP drivers to control the DVRā€™s on-screen GUI through the HDMI output. If youā€™re looking for video streaming to control systems, weā€™ve got you covered. Compatible with Control 4, Crestron, ELAN g! & URC.

OvrC Enabled

With OvrC you can easily organize customer and device information including home addresses, port-forwarding addresses, DDNS names, devices by location and much more. You can quickly access customer UIs by selecting the appropriate device from a list. Plus, youā€™ll receive real-time notifications for firmware updates and be able to perform updates with a single tap.

Remotely Optimize OSD - After Dark

Need to fine-tune OSD settings after dark, but canā€™t roll a truck or run an extra RS-485? Just log in remotely to the DVR ā€“ our recorders feature built-in control thanks to HD-TVI technology.

Rack-Mountable

Our slender DVR is rack-mountable so you can keep things neat and tucked out of the way.

HDMI Out

An included HDMI output allows you to hook up your recorder to a computer monitor to view any image from the live feed. So go ahead: check the camera matrix without all the added hassle.

Easy Install and Setup

Set up is easy with our Luma utility. Featuring large, easy-to-find icons, the utility can be accessed on your PC to view the DVR User Interface via web browser.

Browser Compatibility

PC - Internet Explorer Mac - Safari


Feature Overview

Wirepath 165 Series Wirepath 365 Series Luma 500 Series
960H Recording
HD-TVI Recording *
OvrC Enabled
Intuitive User Interface
Visual Timeline Search
Simultaneous All-Channel Playback
Control System Streaming w/ MJPEG Encoding
Navigation Control Support (IR, RS232, IP)
Free Mobile App
Unified App Across Analog & IP
HDMI Output
Rack Mountable
Clean Rack Finish
Discovery Utility
Local Setup Wizard
Remote Camera Control (via HD-TVI)
Holiday Scheduling
Alarm Triggers 8CH Only
Mac Support
Dynamic DNS Support
Email Notification With Screenshots
Multi-View Monitoring (>1 DVR System) *
Bi-Direcitonal Audio *
Watermark Digital Security
HDD Redundancy (RAID 1) Support 8CH/16CH
External e-SATA Support
Additional HDD Bays 8CH/16CH
NAS Support
Call Monitor Output 8CH/16CH
Call Aux In/Out 8CH/16CH
Video Loop Outputs
UL Rated
Improved ESD & Surge Performance

*Only available on mobile app

The future of surveillance has arrived.

Learn More About Luma
Specs
Specifications
LUM-500-DVR-16CH LUM-500-DVR-8CH
UL, FCC, CE
UL, FCC, CE
17.5" x 3.6" x 19.4"
17.5" x 3.6" x 19.4"
Remote, Adapter(With Power Cord), Mouse, SATA cables, HDD Mounting Hardware, Rack Mount Ears, Quick Start Guide
Remote, Adapter(With Power Cord), Mouse, SATA cables, HDD Mounting Hardware, Rack Mount Ears, Quick Start Guide
16 CH
8 CH
14Ā°F - 131Ā°F
14Ā°F - 131Ā°F
2
2
less than 35W (without hard drive)
less than 30W (without hard drive)
2U
2U
Yes
Yes
3 (1 for mouse)
3 (1 for mouse)
17.64 lb
17.64 lb
Yes
Yes
Motion, Video Loss, System(HDD failure, HDD full, No record, login/logout, Power on/off)
Motion, Video Loss, System(HDD failure, HDD full, No record, login/logout, Power on/off)
120Mbps
120Mbps
Yes
Yes
RTSP
RTSP
Yes
Yes
1
1
Network IP: Static/Dynamic/PPPoE
Network IP: Static/Dynamic/PPPoE
Yes
Yes
4
4
2TB HDD preinstalled; maximum 4TB per bay
1TB HDD preinstalled; maximum 4TB per bay
JPEG
JPEG
Continuous / Manual / Schedule / Motion
Continuous / Manual / Schedule / Motion
Yes, with configurable detection area & sensitivity
Yes, with configurable detection area & sensitivity
480 FPS @ up to WD1
240 FPS @ up to WD1
HDMI: Yes, up to 1920*1080 VGA: Yes, up to 1920*10800 BNC: 704*480
HDMI: Yes, up to 1920*1080 VGA: Yes, up to 1920*10800 BNC: 704*480
Yes, PTZ Control, Transmit, Receive
Yes, PTZ Control, Transmit, Receive
Time, Event (motion, video loss)
Time, Event (motion, video loss)
User adjustable
User adjustable
1, 4, 9, 16
1, 4, 9
H.264
H.264
No
No
1
1
Hexaplex - Simultaneous Live View, Record, Playback, Control, Remote Access, Backup
Hexaplex - Simultaneous Live View, Record, Playback, Control, Remote Access, Backup

Certifications
Dimensions (W x H x D)
Included Accessories
Inputs
Operating Temperature
Outputs
Power Consumption
Rack Mountable
RS-232 Ports
USB Ports
Weight
Two-Way Audio Feature
Alarm Event Log
Maximum Supported Bitrate
Call Monitor
Dual Streaming
E-Mail Feature
ESATA Connection
Network / Ethernet Desc.
FTP Feature
Hard Drive Bays (Internal)
Hard Drive Storage (Internal)
Image Snapshot
Record Mode Desc.
Motion Detect Desc.
Recording Frame Rate (FPS)
Supported Record Resolutions
RS485
Search Features Desc.
Display Sequential Switch
Display Split Window
Video Compression
Video Loop Outputs
RJ-45 1000BASE-T Ports
Operation Modes
Support

3-Year Limited Warranty

Luma Surveillanceā„¢ DVRs have a 3-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, disassembled, or improperly installed. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
