Strong™ Carbon Series Single/Dual Sided Mounting Box – 1.5” NPT

Option

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

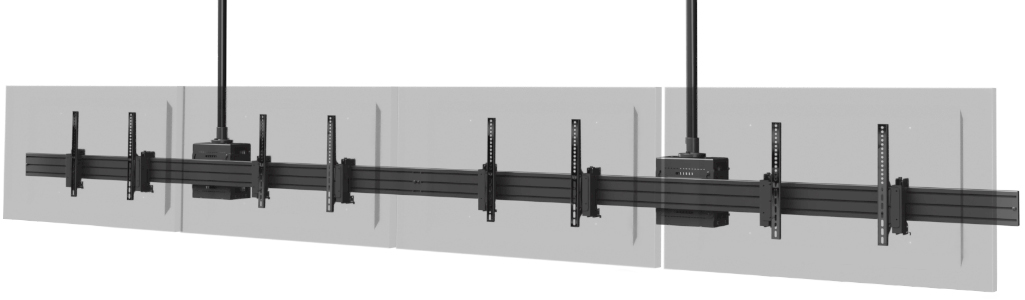

With the Carbon Series Ceiling Mount system, you can easily and safely mount any number of displays into any type of environment. The modular system allows you to customize and configure the perfect ceiling mounting solution by selecting the exact components needed for your specific install. Not only do you get the versatility of creating a custom-built ceiling mount solution, but these mounts also include installer-friendly features our Partners love like integrated wire management, a durable design, convenient storage for PDUs, media devices or extenders, and more.

Strong™ Carbon Series Dual Sided Ceiling Mount - 1.5" NPT

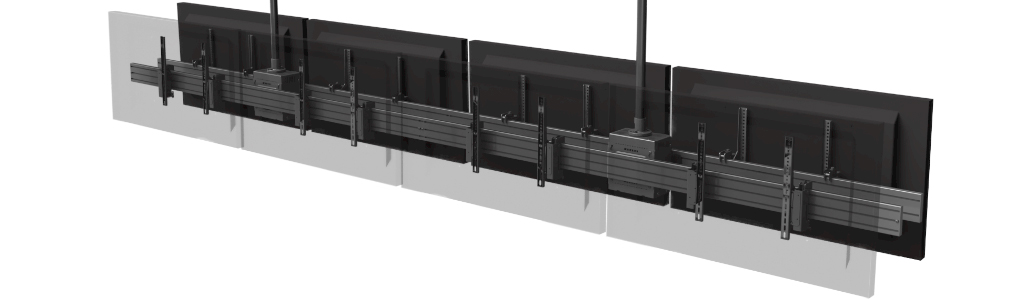

With the Carbon Series Ceiling Mount system, you can easily and safely mount any number of displays into any type of environment. The modular system allows you to customize and configure the perfect ceiling mounting solution by selecting the exact components needed for your specific install. Not only do you get the versatility of creating a custom-built ceiling mount solution, but these mounts also include installer-friendly features our Partners love like integrated wire management, a durable design, convenient storage for PDUs, media devices or extenders, and more.

The Carbon Series mounting box is the central attachment point for extension poles and struts in the Carbons Series ceiling mounts. Available in single and dual-facing configurations.

Important Note - Select and purchase every component you need to build the perfect custom ceiling mount with the new Carbon Series Ceiling Mount Configurator

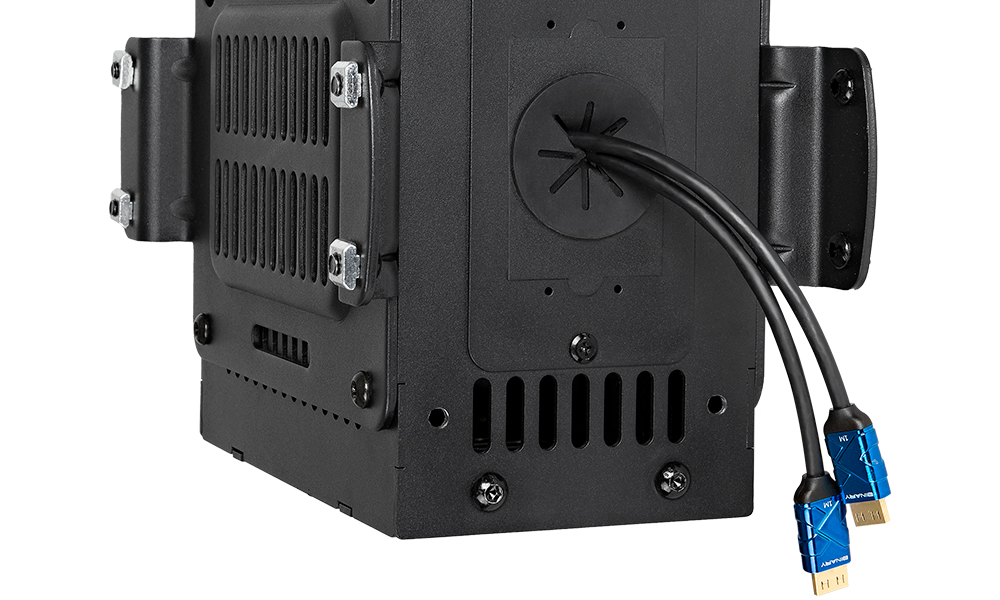

Easy Cable Management

No one likes hanging wires, this box and additional attachments feature integrated wire management for a clean-looking install. Use the rubber flex nose plate for any wires needed to go to the display while keeping other cables secured inside the box. Bring power and connectivity cables through the top opening from the adjustment pole into the box allowing you to power any devices stored in the unit.

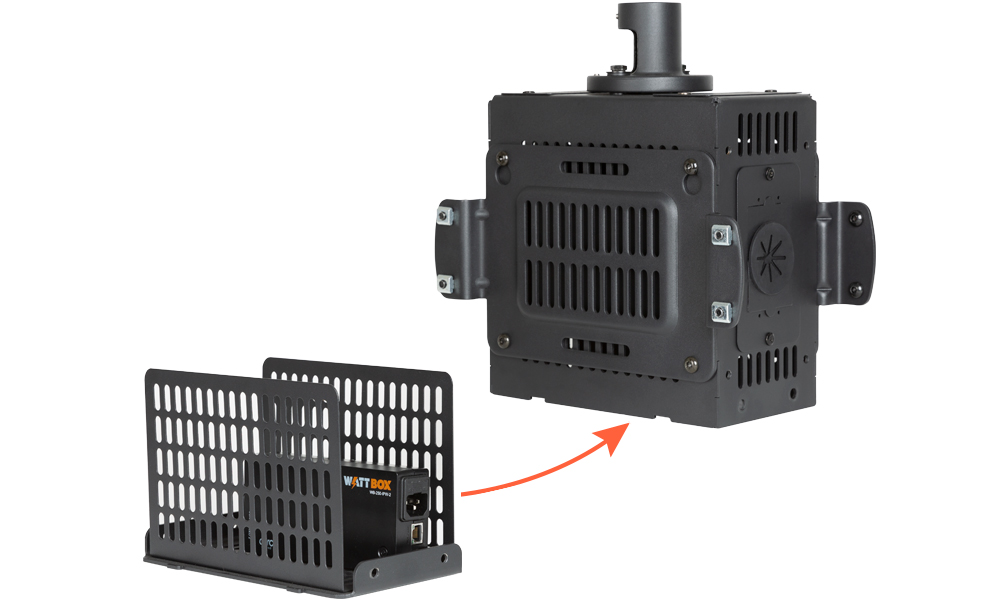

Convenient Storage

No space goes to waste in this box! This box is a convenient place to install a small PDU like WattBox, media devices, extenders, or whatever else you need for the installation. Just undo the screws from the bottom of the box and place any equipment you want into the gear tray, this can even be done without dismounting the display. The gear tray comes with support clips and multiple attachment points to secure gear while keeping it separated to maintain airflow.

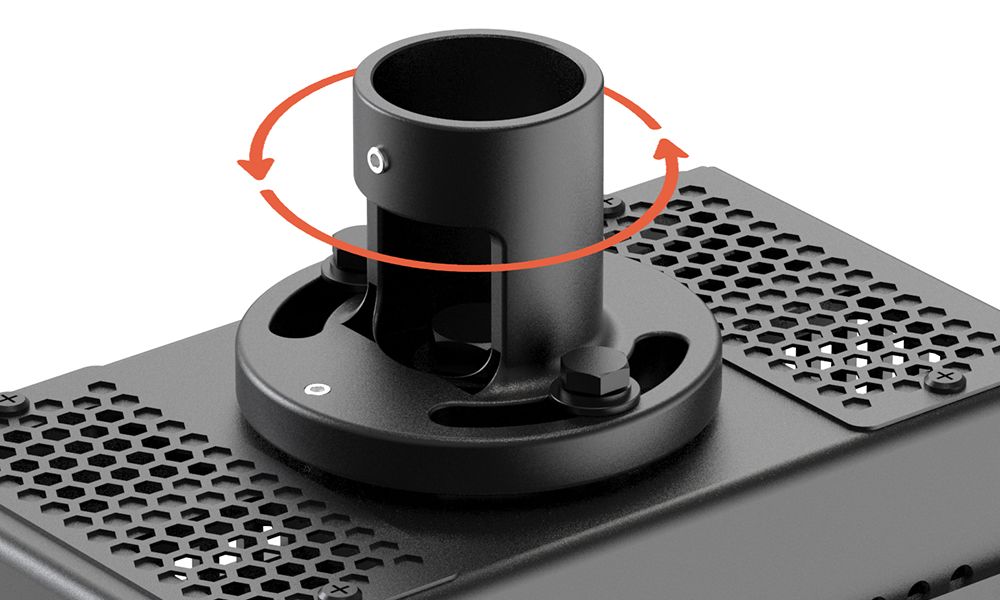

45° Post-Install Rotation

The top of the box can rotate up to 45° so you can create the perfect viewing angle after the display is set. The rotation mechanism also includes a cable entry hole for wires to fed through.

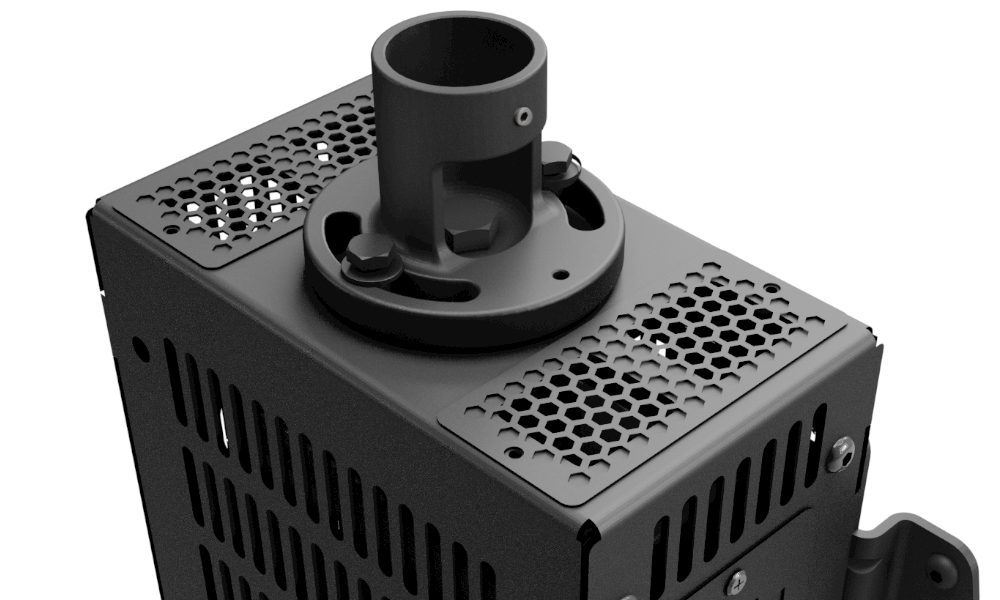

Open Ventilation

The box features several ventilation points to allow for additional airflow to any connected device so your gear is safe from overheating.

Mounting Strut

Attaching to the mounting box, the mounting struts provide the mounting point for either the landscape or portrait display mounting arms. Available in 30", 50" and 100”.

Professional Strength

Supports up to 500lbs to accommodate a wide range of displays as well as multiple displays side by side.

Specs
Specifications
SM-CB-CM-D SM-CB-CM-S
500 lbs
500 lbs
Steel
Steel
13.27" x 6.49" x 13.5"
13.27" x 7.48" x 13.5"
26.4 lb
26.4 lb

Maximum Load Support
Construction
Dimensions (W x H x D)
Weight

Lifetime Limited Warranty

Strong® Mount products have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
