Wirepath™ Surveillance 750 Series Bullet Outdoor Camera with Heater
WPS-750-BUL-IPH-WH
Click to enlarge
Description
Specs
Support
Description
Description
These high-definition Wirepath™ IP cameras let you see what you've been missing – with full 1080p support and up to eight times the pixels of analog models! Watching crystal clear video is great; watching it on the go is even better thanks to free apps for iOS®, and Android, as well as streaming video drivers for popular control systems. Installation is simplified with Power over Ethernet (PoE), a test port for on-the-spot adjustments, and an IP Installer utility that makes it easy to find cameras on the network. Plus, an integrated heater allows for smooth operation – even in extreme temperatures. This is IP for professional installers...this is Wirepath™ Surveillance.
Bullet IP Outdoor Camera with IR and Heater
These high-definition Wirepath™ IP cameras let you see what you've been missing – with full 1080p support and up to eight times the pixels of analog models! Watching crystal clear video is great; watching it on the go is even better thanks to free apps for iOS®, and Android, as well as streaming video drivers for popular control systems. Installation is simplified with Power over Ethernet (PoE), a test port for on-the-spot adjustments, and an IP Installer utility that makes it easy to find cameras on the network. Plus, an integrated heater allows for smooth operation – even in extreme temperatures. This is IP for professional installers...this is Wirepath™ Surveillance.
Important Note - Please note that the Android Wirepath mobile app is no longer available on the Google Play store. Please download the mobile application from the support tab.
Part of the OvrC Ecosystem
Together with Wirepath, OvrC offers remote IP camera setup and post-install adjustments in a flash. Monitor when devices and networks fall offline, make changes to advanced settings and upgrade firmware whenever and wherever it’s convenient.* Save yourself a truck roll by managing cameras and recorders remotely. Learn more >>
*A firmware update for cameras purchased before May 2016 is now available.Click here for details.
Built-in Heater
This camera includes a heater that will turn on and off automatically to raise the temperature inside the camera when necessary, allowing it to operate effectively all the way from -40° to 113° Fahrenheit.
IR Illumination
An array of IR LEDs are included to assist with nighttime performance. But the total LED power is limited due to PoE constraints. IR is recommended for indoor and targeted applications.
Fog Cutter
This camera features technology that digitally cuts through the fog to provide clear images and increased visibility in conditions where it's needed most.
Sense-Up
See in color-in the dark! By automatically slowing the shutter speed, the camera is able to pick up the slightest traces of light to display a bright image.
Privacy Masking
Hide sensitive or privileged areas by placing rectangular blocks or "masks" over installer-defined areas.
DNR
A powerful digital signal processor (DSP) intelligently scans the image and reduces noise in low-light conditions for a cleaner, crisper image.
D-WDR
Provides clearer images and even lighting in applications that are both bright and dark. This is useful in areas with windows and lots of natural light.
True Day/Night
For more accurate color reproduction during daytime, an IR Cut filter is moved over the lens to block unwanted IR. At night, the filter is removed to deliver maximum visibility and clear IR illumination.
Backlight Compensation
Reduces silhouetting so you see foreground subjects clearly when positioned in front of a bright background light source.
Widescreen & High Definition
Thanks to a premium 2MP CMOS sensor, this camera delivers pristine video with resolutions up to 1920x1080 at a full 30FPS – eight times the pixels of analog models! Unlike many competitive 2MP products, Wirepath™ cameras are true 16:9 widescreen – giving you a wider view of the action and filling your TV screen – no more black bars! Have applications that don't require high definition? No problem, resolutions as low as 176x144 @ 30fps are also supported.
Power over Ethernet
Imagine how much time you could save by only having to terminate a single cable. With PoE that's exactly what you get! A single Cat5e/6 cable can deliver video, data, audio, and power to/from the camera. No more crimp on beanies, wire nuts or other unsightly connections - just an RJ45 connector and you're done. Retrofit installations have never been easier.

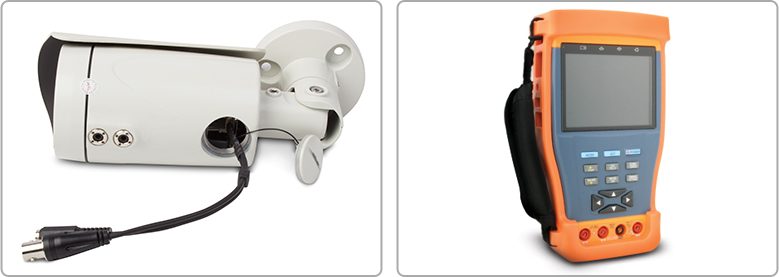

Test Port + CCTV Tester = Easy Adjustments
Thanks to this camera's test port you can do on-the-spot video adjustments using our optional CCTV Tester, and you can power the camera if power isn't already provided.
Smarter Housing
Featuring an exclusive SnapAV design, this bullet features external zoom and focus adjustments so you can completely install the camera before tweaking these settings, plus a thicker, stronger mount bracket and wider barrel. The rear mount hides and protects your wires, and of course, this camera is compatible with all of our Wirepath™ Surveillance Mounts for increased installation flexibility.
Sound the Alarm
If contact inputs and trigger outputs seem like features only available on an NVR, then you haven't met our IP cameras! Connect a driveway sensor, door contact, external motion or other sensors to trigger emails, recording events and other auxiliary alarms - with or without an NVR.
Edge Storage
For sophisticated surveillance systems, redundancy is key. With optional edge storage, you don't have to worry about lapses in recording, even if the local network connection is disrupted or the NVR is compromised. A micro SD card slot makes for fast and easy local recording, right there at the camera, and recordings can be viewed through a web browser once the network is restored.
Bi-Directional Audio
Audio inputs to the NVR enable you to do this right through Internet Explorer on your PC! Think of the uses: gated entrances, elevators, assisted living, saferooms - there are a number of applications where you want the person on the other end to know you're listening.
Email Notifications
Sure, you could hover over your NVR watching cameras all day to see if something was amiss - but wouldn't it just be easier to get an email with an attached screenshot? With event-based alerts, you can create custom notifications for motion detection and alarm triggers.
Dynamic DNS Support
Instead of searching your records for cumbersome IP addresses, Dynamic DNS provides a permanent, easy-to-remember name that never changes. Our free WirepathDNS service is fast and easy to set up and it provides maximum uptime.
User Access Levels
With the ability to set specific user access levels, you control who sees which cameras, and who is allowed to adjust important settings. And you can provide your tech with the ability to change settings but not view any video - making your customer's privacy considerations a priority.
Specs
Specifications
| WPS-750-BUL-IPH-GR | WPS-750-BUL-IPH-WH |
|---|---|
3.5mm x 1 |
3.5mm x 1 |
ONVIF, CE, FCC, RoHS |
ONVIF, CE, FCC, RoHS |
Gray |
White |
Arm 90°: 3.4" x 3.82" x 8.39" Arm Straight: 3.4" x 3.28" x 9.07" |
Arm 90°: 3.4" x 3.82" x 8.39" Arm Straight: 3.4" x 3.28" x 9.07" |
-40° - 113°F |
-40° - 113°F |
12VDC: 230mA 2.76W(IR off Heater off), 380mA 4.56W(IR on Heater off), 470mA 5.64W(IR off Heater on), 600mA 7.20W(IR on Heater on) |
12VDC: 230mA 2.76W(IR off Heater off), 380mA 4.56W(IR on Heater off), 470mA 5.64W(IR off Heater on), 600mA 7.20W(IR on Heater on) |
1.98 lb |
1.98 lb |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
103.73°(H) 54.43°(V) |
103.73°(H) 54.43°(V) |
10/100 Base-T |
10/100 Base-T |
Yes |
Yes |
0.05 lux @F1.4 (IR off), 0 lux @F1.4 (IR on) |
0.05 lux @F1.4 (IR off), 0 lux @F1.4 (IR on) |
Brightness, Contrast, Hue, Saturation, Sharpness, Shutter Speed adjustable, AGC, Sense-Up, D-WDR, , Noise reduction, Day&Night adjustable |
Brightness, Contrast, Hue, Saturation, Sharpness, Shutter Speed adjustable, AGC, Sense-Up, D-WDR, , Noise reduction, Day&Night adjustable |
1/2.7” 2MP CMOS sensor |
1/2.7” 2MP CMOS sensor |
Yes |
Yes |
Yes |
Yes |
65 Ft. |
65 Ft. |
Vari-focal 3~10.5mm Mega Pixel Lens F1.4 |
Vari-focal 3~10.5mm Mega Pixel Lens F1.4 |
Yes |
Yes |
Yes |
Yes |
HTTP, HTTPS, SNMP, QoS/DSCP, Access list, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour |
HTTP, HTTPS, SNMP, QoS/DSCP, Access list, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour |
Yes |
Yes |
Motion Detection, IP Ping failure, Network disconnect, Schedule, Digital Input, Tampering |
Motion Detection, IP Ping failure, Network disconnect, Schedule, Digital Input, Tampering |
Up to 32GB(Class 10) |
Up to 32GB(Class 10) |
Yes |
Yes |
Yes |
1/5~1/1000 |
Email, FTP, Save to micro SD card, Digital Output, SAMBA |
Email, FTP, Save to micro SD card, Digital Output, SAMBA |
1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps |
1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps |
H.264/M-JPEG |
H.264/M-JPEG |
Yes |
Yes |
IP66 |
IP66 |
IP66 |
IP66 |
Audio Inputs / Outputs |
Certifications |
Color |
Dimensions (W x H x D) |
Operating Temperature |
Power Consumption |
Weight |
Day & Night Adjustable |
Auto Gain Control |
DC Iris |
DNR |
Est. Horizontal Viewing Angle |
Network / Ethernet Desc. |
Full Screen Monitoring |
Minimum Illumination |
Image Adjustment |
Image Sensor |
Image Snapshot |
Day/Night IR Cut Filter |
IR Range |
Lens |
Mirror Mode |
Motion Detection |
Supported Network Protocols |
Quad Streaming |
Recording Trigger |
SD Card Support |
Sense-Up (Elec. Shutter) |
Shutter Speed |
Triggered Action Desc. |
Video Resolution |
Video Compression |
WDR |
Weather Rating |
Outdoor Rating |
Support
Manuals and Guides
Sales Resources
Support Documents
Control Protocols and Drivers
3-Year Limited Warranty
This Wirepath™ product has a 3-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
